EVINRUDE-JOHNSON 513440 Connecteur, Ensemble Capteur

Write a Review
$23.99
SKU:
513440
Schematic Object Key:
39

EVINRUDE-JOHNSON 513440 Connecteur, Ensemble Capteur

$23.99

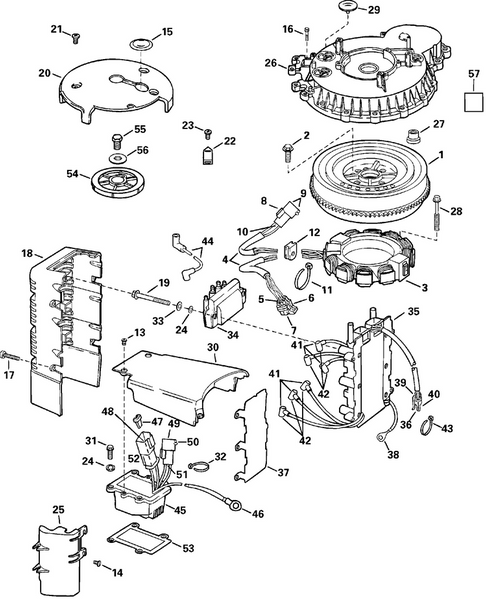

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 513440 Connecteur, Ensemble Capteur

Schematic Object Key : 39

Product Description: Connecteur, Ensemble Capteur

Category: JOHNSON / 2006 / 175 / J175GLSDE / ELECTRICAL SYSTEM

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0584350 Flywheel assy
2 0336135 Screw, flywheel
3 0584981 Stator assy
4 0514374 Sleeve
5 0513437 Seal
6 0513424 Connector
7 0513423 Terminal, socket
8 0513664 Connector
9 0513667 Terminal
10 0513665 Plug
11 0317893 Tie strap
12 0336732 Grommet
13 0315656 Screw
14 0333430 Screw, float bowl
15 0316074 Bouchon, couvercle de volant moteur
16 0909533 Screw, adapter
17 0328649 Screw, bowl to body
18 0513584 Cover, power pack
19 0331102 Screw, coil to block
20 0335428 Cache, capteur
21 0315656 Screw
22 0335204 Indicateur de calage
23 0315656 Screw
24 0301551 Washer, lock
25 0342202 Bracket, motor cable
26 0433581 Cover assy, flywheel
27 0341613 Bague, pignon arbre vers carter moteur
28 0308995 Screw, front mount
29 0336492 Soupape, couvercle de volant moteur
30 0513818 Couvercle, bloc d'alimentation vers volant moteur
31 0328695 Clamp, engine cable
32 0320107 Tie strap
33 0328702 Washer
34 0583740 Coil assy
35 0584985 Power pack
36 0513439 Terminal
37 0513579 Shield, power pack
38 0510818 Terminal, ring
39 0513440 Connecteur, ensemble capteur
40 0514754 Seal
41 0512478 Couvercle, alvéole bobine primaire
42 0512256 Broche, prise bobine primaire
43 0317893 Tie strap
44 5005805 Ensemble câblage, bobine allumage, 15½ " 394 mm
44 5005806 Ensemble câblage, bobine allumage, 14½ " 370 mm
44 5005807 Lead, ignition coil 11 1 4 in. 286mm
45 0586048 Rectifier regulator
46 0204053 Borne, anneau 0,312" 7,9 mm diamètre
47 0514697 Lock wedge, 2 pin
48 0514679 Borne, broche
49 0513666 Terminal
50 0513663 Connector
51 0513665 Plug
52 0514696 Connector, 2 pin receptacle
53 0350357 Gasket, base plate
54 0513917 Timing wheel
55 0350271 Screw
56 0314099 Rondelle, vis, pignon de distribution
57 0336342 Decal, spark advance
