EVINRUDE-JOHNSON 514288 Couvercle, Bloc D™Alimentation

Write a Review
$24.99
SKU:
514288
Schematic Object Key:
52

EVINRUDE-JOHNSON 514288 Couvercle, Bloc D™Alimentation

$24.99

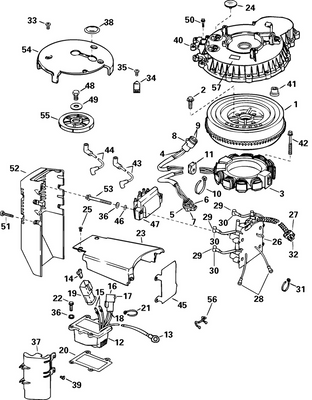

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 514288 Couvercle, Bloc D™Alimentation

Schematic Object Key : 52

Product Description: Couvercle, Bloc D™Alimentation

Category: JOHNSON / 2003 / 105 COMMERCIAL / J105WPLSTM / ELECTRICAL SYSTEM

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0584843 Ensemble volant moteur
2 0336135 Screw, flywheel
3 0584849 Stator
4 0513665 Plug
5 0513437 Seal
6 0514371 Connecteur
7 0513423 Terminal, socket
8 0513664 Connector
9 0513667 Terminal
10 0320107 Tie strap
11 0336732 Grommet
12 0586075 Rectifier regulator
13 0204053 Borne, anneau 0,312" 7,9 mm diamètre
14 0514697 Lock wedge, 2 pin
15 0514679 Borne, broche
16 0513666 Terminal
17 0513663 Connector
18 0513665 Plug
19 0514696 Connector, 2 pin receptacle
20 0350357 Gasket, base plate
21 0320107 Tie strap
22 0328695 Clamp, engine cable
23 0513818 Couvercle, bloc d'alimentation vers volant moteur
24 0336492 Soupape, couvercle de volant moteur
25 0315656 Screw
26 0586292 Bloc d alimentation
27 0513440 Connecteur, ensemble capteur
28 0510818 Terminal, ring
29 0512478 Couvercle, alvéole bobine primaire
30 0512256 Broche, prise bobine primaire
31 0317893 Tie strap
32 0513439 Terminal
33 0315656 Screw
34 0335204 Indicateur de calage
35 0315656 Screw
36 0301551 Washer, lock
37 0342202 Bracket, motor cable
38 0316074 Bouchon, couvercle de volant moteur
39 0333430 Screw, float bowl
40 0433581 Cover assy, flywheel
41 0341613 Bague, pignon arbre vers carter moteur
42 0308995 Screw, front mount
43 5005805 Ensemble câblage, bobine allumage, 15½ " 394 mm This part replaces 0584919.
44 5005806 Ensemble câblage, bobine allumage, 14½ " 370 mm This part replaces 0584920.
45 0514289 Blindage
46 0328702 Washer
47 0583740 Coil assy
48 0350271 Screw
49 0314099 Rondelle, vis, pignon de distribution
50 0909533 Screw, adapter
51 0328649 Screw, bowl to body
52 0514288 Couvercle, bloc d alimentation
53 0331102 Screw, coil to block
54 0335428 Cache, capteur
55 0513788 Pignon de distribution
56 0512743 Retainer
57 0336342 Decal, spark advance j105wplstm model only
57 0343438 Autocollant, avance à l allumage
