EVINRUDE-JOHNSON 514522 Bracket Cover

Write a Review
$85.99
SKU:
514522
Schematic Object Key:
58

EVINRUDE-JOHNSON 514522 Bracket Cover

$85.99

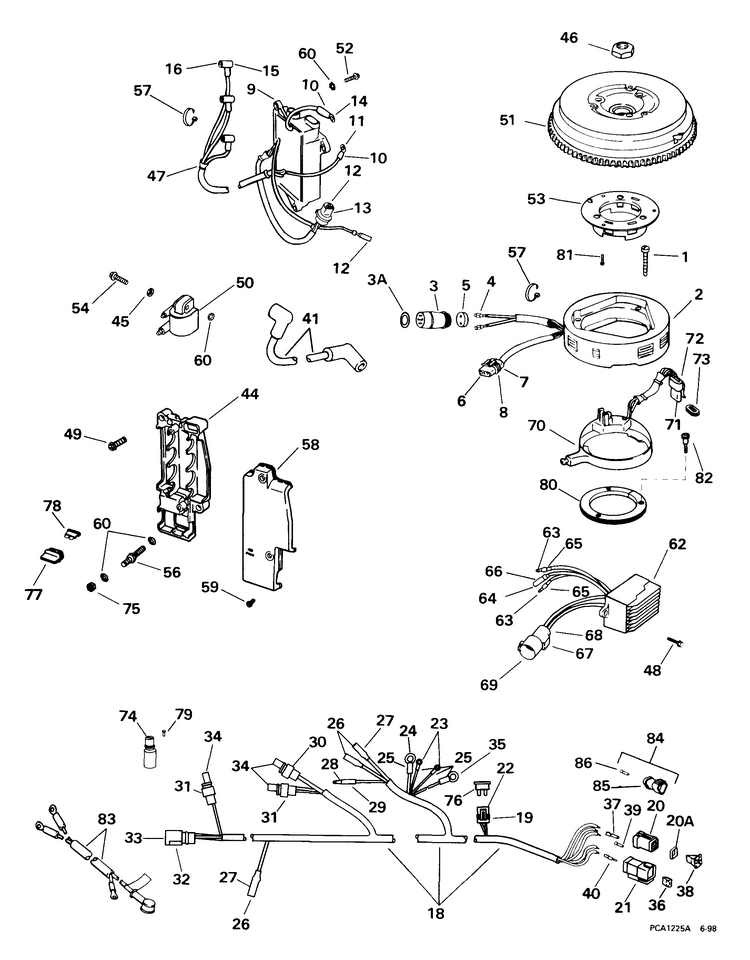

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 514522 Bracket Cover

Schematic Object Key : 58

Product Description: Bracket Cover

Category: JOHNSON / 1999 / 25 / J25R3EEM 1999 / IGNITION SYSTEM -- E, EL

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0337147 Screw, retainer to trunnion
2 0584821 Stator assy.
3 0513664 Connector
3A 0911729 O ring
4 0513667 Terminal
5 0513665 Plug
6 0513439 Terminal
7 0514106 Connector
8 0514780 Seal, connector
9 0586472 Power pack This part replaces 0584823.
10 0512037 Tubing, ring
11 0510818 Terminal, ring
12 0581656 Terminal, socket
13 0512749 Connector
14 0514158 Ring terminal
15 0512478 Couvercle, alvéole bobine primaire
16 0512256 Broche, prise bobine primaire
17 0317893 Tie strap
18 0586044 Motor cable assy.
19 0514033 Connector
20 0514687 Connecteur, fiche 6 broches
20A 0514790 Joint, 6 alvéoles
21 0514688 Connector, 6 pin
22 0514035 Borne, prise
23 0511829 Ring terminal
24 0330100 Terminal
25 0510781 Tubing, sleeve
26 0512876 Terminal, socket
27 0513186 Sheath, cell
28 0512947 Terminal, bullet
29 0513185 Sleeve
30 0512747 Connector, 3 socket
31 0512745 Connector
32 0512750 Connector, 4 pin
33 0511469 Terminal, pin
34 0581656 Terminal, socket
35 0510818 Terminal, ring
36 0514684 Lock wedge, 6 pin
37 0514680 Socket
38 0514683 Cale verrouillage, fiche 6 broches
39 0514690 Bouchon, mâle
40 0514679 Borne, broche
41 0584925 Lead assy., ignition coil
44 0514693 Bracket, electrical
45 0328703 Washer, screw hook
46 0321341 Nut, flywheel
48 0337244 Screw, regulator
49 0333676 Screw, cover to gearcase This part replaces 0325095.
50 0586323 Coil assy.
51 0584887 Flywheel assy.
52 0337244 Screw, regulator
53 0514372 Encoder
54 0337147 Screw, retainer to trunnion
56 0341512 Bolt, double ended, solenoid
57 0320107 Tie strap
58 0514522 Bracket cover
59 0330838 Screw, baffle
60 0328701 Lockwasher, double ended bolt
62 0584890 Rectifier regulator
63 0512947 Terminal, bullet
64 0512876 Terminal, socket
65 0513185 Sleeve
66 0513186 Sheath, cell
67 0513663 Connector
68 0513665 Plug
69 0513666 Terminal
70 0584824 Sensor assy.
71 0513439 Terminal
72 0513440 Connecteur, ensemble capteur
73 0514754 Seal
74 0512746 Connecteur, 2 broches
75 0328740 Nut, throttle friction
76 0514021 Fuse
77 0514022 Plug, fuse
78 0514021 Fuse
79 0511496 Plug, seal
80 0340842 Sensor support
81 0335739 Screw, conn. brkt. to mntg. brkt.
82 0340867 Screw, sensor support
83 0584381 Battery cable
84 0586072 Connector assy, diagnostic cover
85 0514868 Housing
86 0514960 Plug, vacant hole
