EVINRUDE-JOHNSON 550074 Stud

Write a Review
$1.25
SKU:
550074
Schematic Object Key:
40

EVINRUDE-JOHNSON 550074 Stud

$1.25

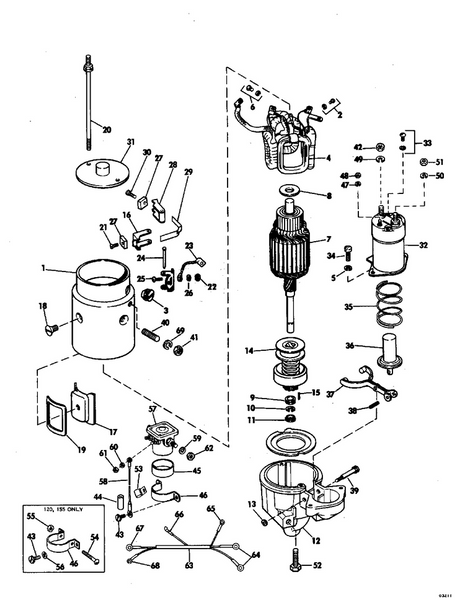

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 550074 Stud

Schematic Object Key : 40

Product Description: Stud

Category: STERN DRIVE / 1970 / 155 / HUTM-69M 1970 / STARTER MOTOR AND SOLENOID GROUP 120, 155, 210 HP

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0384198 0384198 Starter mtr stud assy
1 FRAME
2 SCREW AND WASHER
3 1966391 Gormmet
4 1967968 Feild coil
5 9421423 Lockwasher, switch attach
6 SCREW AND WASHER
7 1966228 Armature
8 0818265 Washer
9 1927849 Collar, stop
10 1927848 Rikng
11 1927854 Collar, thrust
12 1968122 Drive housing incl. 1923907 bushing
13 9416878 Retainer ring
14 1954842 Drive assembly
15 0809593 Dowel pin
16 1940477 Brush hodler,grounded
17 1931129 Pole shoe
18 1970469 Screw, pole shoe
19 1927853 Insulator
20 1941111 Thru bolt
20 1939970 Thru bolt
21 0310859 Bolt, throttle lever to carb
1928015 1928015 Support package
22 0120361 . nut, support
23 1926605 Ground,lead
24 1966923 . pin
25 0274738 . screw, support
26 0453435 . washer, support
27 1906945 Brush
28 1926618 Brush holder, insulated
29 1926622 Brush,spring
30 1967747 Screw
31 1928966 Frame bushing
32 1114356 Switch
33 SCREW AND WASHER
34 0132255 Screw
35 1958679 Return spring
36 1941113 Plunger
37 1951567 Lever shift
38 0455106 Pin
39 1945804 Shaft
40 0550074 Stud
41 0306320 Nut
42 0306556 Nut, leaf screw
43 0303311 Scr,clamp,eng cable
43 0329594 Screw, cam follower This part replaces 0303737.
44 0303806 Tubing
45 0311217 Sleeve
46 0330112 Clamp, solenoid This part replaces 0311218.
46 0312490 Bracket
47 0306991 Lock washer
48 0133079 Nut
49 0303916 Lock washer, ground terminal
50 0306025 Lock washer
51 0309602 Lock nut, steering handle This part replaces 0304632.
52 0315782 Screw, starter
52 0315783 Screw, starter to cylinder
53 0330151 Cable clamp, filter This part replaces 0310440.
53 0330151 Cable clamp, filter This part replaces 0309041.
54 0306519 Scr,coil clamp
55 0308335 Clamp, coil
56 0308089 Washer
0383428 0383428 Solenoid cable assembly
57 0586180 Ensemble solénoïde This part replaces 0383622.
58 0381765 Lead assembly, ground
59 0306325 . . lockwasher, solenoid screw
60 0120052 . . lockwasher, solenoid screw
61 0306556 Nut, leaf screw
62 0311349 Nut, solenoid
63 0383427 Cable assembly
64 0203523 Ring terminal
65 0204036 10 ring termial,12v
66 0308808 Cosse, plate
67 0310502 Terminal, ring
68 0510780 8 ring termianl This part replaces 0204037.
69 0306325 . . lockwasher, solenoid screw
