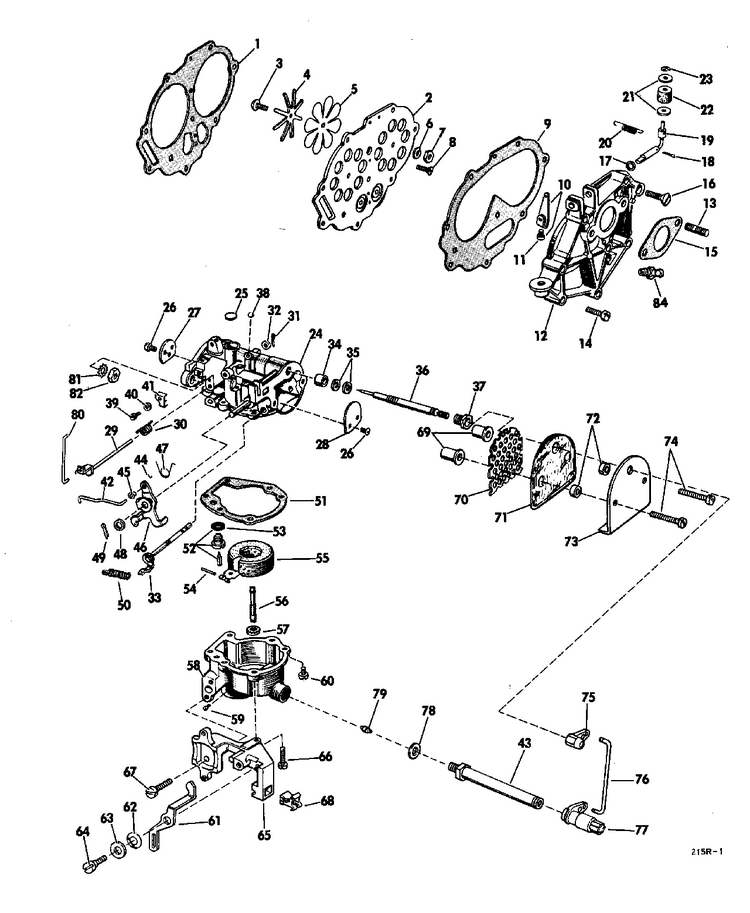

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 66
Product Description: Screw,Bracket
Category: JOHNSON / 1968 / 20 / FD-22E 1968 / CARBURETOR GROUP
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0316540 | Gasket, leaf plate to c' case | This part replaces 0315244. |
0381366 | 0381366 | Leaf plate assy.comp. | |
2 | 0315245 | Leaf plate | |
2 | 0307165 | Plate, leaf | |
3 | 0301858 | Screw, leaf to plate | |
4 | 0336752 | Stop, leaf | This part replaces 0311931. |
5 | 0313724 | Leaf | |
6 | 0306546 | Lock washer, leaf screw | |
7 | 0306556 | Nut, leaf screw | |
8 | 0302104 | .screw, choke housing | |
9 | 0315991 | Gasket, lead plate to manifold | This part replaces 0304779. |
10 | 0381717 | Cam follower arm assy | |
11 | 0304572 | . .screw | |
12 | 0377627 | Intake mfld. stud assy. | |
12 | 0377899 | Manifold stud assy | |
13 | 0302822 | Stud | |
14 | 0312189 | Screw, manfold to crankcase | |
15 | 0203237 | Gasket, carb. to manifold | |
16 | 0304294 | Screw manifold to crankcase | |
17 | 0330191 | Washer, throttle shaft | This part replaces 0303048. |
18 | 0305650 | Cotter pin | This part replaces 0306463. |
19 | 0304919 | Follower, throttle cam | |
20 | 0203276 | Spring, cam follower | |
21 | 0303279 | Bushing, cam follower | |
22 | 0203362 | Roller, cam follower | |
23 | 0203363 | Retainer | |
0381718 | 0381718 | Carburetor assembly complete | |
24 | 0381756 | Carb.body,plug throttle valve assy. | |
25 | 0202310 | Core plug | |
26 | 0312852 | . screw, throt. choke valve | |
27 | 0312745 | Valve, throttle | |
28 | 0303126 | Valve, choke | |
29 | 0381715 | Shaft, throttle | |
30 | 0303119 | Spring, throttle shaft | |
31 | 0303049 | Cotter pin | |
32 | 0330191 | Washer, throttle shaft | This part replaces 0303048. |
33 | 0278246 | Shaft, choke | |
34 | 0303947 | Bushing, needle valve | |
35 | 0307583 | Packing, valve | |
36 | 0308349 | Valve,needle,slow speed | |
37 | 0300179 | Pkg. nut, adj. needle valves | |
38 | 0304201 | Lead shot | |
39 | 0131249 | Screw | |
40 | 0303497 | Washer | |
41 | 0204488 | Support, control rod | |
42 | 0204486 | Rod, throttle control | |
43 | 0309416 | Nut | |
44 | 0307565 | Pin | |
45 | 0304216 | Bushing | |
46 | 0204487 | Bellcrank, choke | |
47 | 0204491 | Spring, choke return | |
48 | 0307596 | . washer, throttle shaft | |
49 | 0305650 | Cotter pin | This part replaces 0306463. |
50 | 0303316 | Spring, bellcrank to choke lever | |
51 | 0302994 | Gasket | |
52 | 0396522 | Ensemble soupape à flotteur | This part replaces 0379313. |
53 | 0301996 | Gasket | |
54 | 0300096 | Hinge pin | |
55 | 0396514 | Float assy | This part replaces 0375919. |
56 | 0312748 | Nozzle, high speed | |
57 | 0302984 | Gasket | |
58 | 0379033 | Chamber,float, nipple | |
59 | 0304105 | .plug, body | |
60 | 0307045 | Nozzle, high speed | |
61 | 0308337 | Arm,choke | |
62 | 0305238 | Bow washer, arm to bushing | |
63 | 0329241 | Washer | This part replaces 0305981. |
64 | 0303247 | Screw | |
65 | 0308364 | Bracket | |
66 | 0550913 | Screw,bracket | |
67 | 0341474 | Screw, cover | This part replaces 0510195. |
68 | 0204490 | Detent choke, ling | |
69 | 0308233 | Spacer | |
70 | 0308351 | Plate | |
71 | 0308350 | Pad,silencer | |
72 | 0308235 | Spacer | |
73 | 0308352 | Cover | |
75 | 0204705 | Arm, neddle valve | |
76 | 0308362 | Link, slow speed valve arm | |
77 | 0308243 | Bellcrank | |
78 | 0303630 | Washer | |
79 | 0322907 | Orifice, intermediate no. 57d | This part replaces 0205880. |
80 | 0312744 | Link, lever to arm | |
81 | 0306799 | L'washer,bracket to hsg. | |
82 | 0306320 | Nut | |
83 | 0314514 | Screw, manifold lower | |
84 | 0303172 | Nipple, manifold |
