EVINRUDE-JOHNSON 580780 . Solenoid Assy., Upper

Write a Review
$206.99
SKU:
580780
Schematic Object Key:
56

EVINRUDE-JOHNSON 580780 . Solenoid Assy., Upper

$206.99

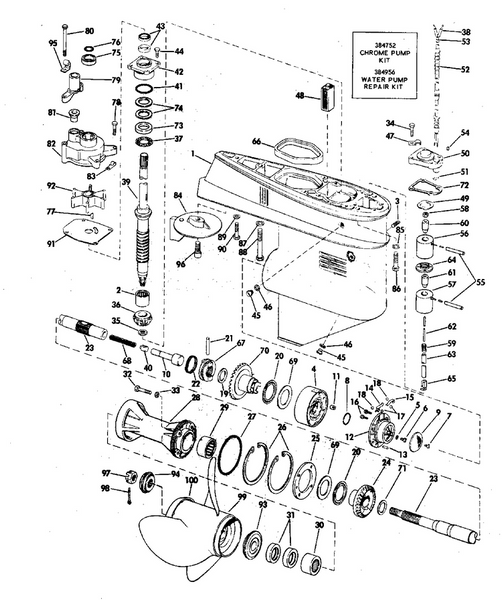

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 580780 . Solenoid Assy., Upper

Schematic Object Key : 56

Product Description: . Solenoid Assy., Upper

Category: EVINRUDE / 1972 / 50 / 50203C 1972 / GEARCASE ELECTRIC START

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0385096 0385096 Gearcase assy., complete std
0385097 0385097 Gearcase assy., complete long
1 0385070 Gearcase bearing assy
2 0382343 Bearing, pinion
3 0322994 . set screw This part replaces 0317652.
4 0385057 Oil pump assembly
5 0120052 . . lockwasher, solenoid screw
6 0307175 ,,screw ,housing
7 0314492 . screw, screen to valve hsg.
8 0314491 O ring
9 0383784 . screen valve housing
10 0315709 Piston hydrulic shift
11 0315391 Cover
12 0384108 . valve housing assy
13 0202136 . . pin, cover to gearcase
14 0315163 . . valve, lever reverse
15 0315166 . . valve, lever neutral
16 0315482 . . rivet, valve bracket
17 0315164 . . ball, valve shift
18 0315470 . . valve, seat
19 0316028 Thrust waher, shifter dog fwd.
20 0382408 Thrust bearing
21 0313448 Pin, clutch dog
22 0324369 Spring, clutch dog pin This part replaces 0313454.
23 0384607 Propeller shaft assy
24 0315535 Gear, reverse
25 0313453 Retainer plate, bearing housing
26 0313445 Retaining ring
27 0313446 "o" riing, brg. hsg
28 0434391 Bearing housing assembly. This part replaces 0384603.
29 0382407 Bearing assy, forward gear
30 0379504 Propshaft bearing assembly
31 0330137 Seal This part replaces 0310600.
32 0320041 Screw, housing to gearcase This part replaces 0316564.
33 0317178 O ring
34 0909533 Screw, adapter This part replaces 0316357.
35 0313339 Nut, pinion to driveshaft
36 0315533 Pinioin gear
37 0385068 Thrust bearing assembly.
38 0303806 Tubing
39 0385102 Driveshaft assy., std
39 0385103 Driveshaft assy., long
40 0313449 Retainer, clutch dog
41 0313754 O ring
42 0435519 Bearing housing assy. This part replaces 0385086.
43 0321459 Oil retainer, housing This part replaces 0315882.
44 0124341 Screw, cover This part replaces 0300630.
45 0307551 Screw
46 0311598 Seal
47 0316099 Clamp, impeeler hsg
48 0314175 Screen, water intake
49 0314126 Wave wahser, solenoid
0384459 0384459 Solenoid cable cover assy
50 0315710 Cover, solenoid
51 0314090 . retainer
52 0383542 Cable assembly
53 0379645 . . connector kit
54 0315072 Splice connector
55 0510817 Sleeve, shrink
56 0580780 . solenoid assy., upper
57 0580781 . solenoid assy., lower
58 0314406 . nut, shift solenoid
59 0315300 . lockscrew, shift rod casing
60 0510808 . plunger, upper, solenoid
61 0510809 . plunger, lower, solenoid
62 0510874 . shift rod, solenoid
63 0510811 . casting, shift rod
64 0510756 . spacer, shift solenoid
65 0315484 O ring
66 0324937 Seal, gearcase to inner exh. hsg. This part replaces 0313656.
67 0317667 Shifter, clutch dog
68 0314020 Sping, propeller shaft
69 0313447 Thrust washer
70 0383978 Gear assy., forward
71 0316484 Thrust washer, shifter
72 0314082 Gasket, cover to gearcase
73 0317230 Thrust washer
74 0317231 Shim, . 002"
74 0317232 Shim, 0.005 in. 0,12mm
75 0341732 Grommet, housing This part replaces 0315748.
76 0339543 O ring This part replaces 0303059.
77 0308928 .key, impeller 5 inch longer parts
78 0909533 Screw, adapter This part replaces 0316357.
79 0315838 Bracket, water tube
80 0324430 Screw, anode This part replaces 0316658.
81 0315837 Grommet, water tube
82 0387215 Impeller housing, gearcase This part replaces 0316292.
83 0316099 Clamp, impeeler hsg
84 0338742 Compensateur de dérive This part replaces 0316981.
85 0307708 Lock washer, mounting
86 0305282 Bolt, bowl suction piece
87 0306314 L'washer,scr,long
88 0313697 Scr,grc to hsg.long
89 0306470 Lock washer
90 0306503 Screw, adjustment rod
91 0320981 Plate, impeller housing This part replaces 0315745.
92 0377230 Impeeler assembly
93 0127084 Thrust bushing This part replaces 0384574.
94 0315810 Spacer, impeller nut
95 0330151 Cable clamp, filter This part replaces 0316386.
96 0313715 Screw, cap, hex hd, 7 16 14 x 1
97 0314503 Nut, impeller
98 0314502 Cotter pin
99 0383160 Propeller 14 x 19
99 0382761 Propeller ,14 x 11
99 0765181 Propeller This part replaces 0382762.
99 0765182 Propeller w models This part replaces 0382763.
99 0765183 Propeller, wdel models This part replaces 0382764.
99 0382765 Propeller 13 x 19
99 0382766 Prop. 12 3 4 x 21 std
99 0384140 Prop., 13 3 4 x 21 2 bl. brnz.
99 0389512 Pro, 12 3 4 x 21 sst cupped This part replaces 0384141.
99 0384139 Prop., 13 3 8 x 17 sst
99 0384142 Prop., 13 x 19 sst
99 0389512 Pro, 12 3 4 x 21 sst cupped This part replaces 0384702.
100 0314188 Converging ring
100 0315850 Converging ring, brnz
