EVINRUDE-JOHNSON 582262 Power Pack

Write a Review
$215.49
SKU:
582262
Schematic Object Key:
24

EVINRUDE-JOHNSON 582262 Power Pack

$215.49

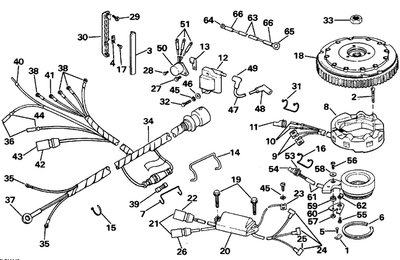

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 582262 Power Pack

Schematic Object Key : 24

Replacement: This part (582262) replaces 0581404.

Product Description: Power Pack

Category: JOHNSON / 1986 / 300 / J300TLCDC 1986 / IGNITION SYSTEM - 35 AMP

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0583969 Flywheel assy. This part replaces 0583281.
2 0326042 Nut, flywheel
3 0325135 Screw, stator mounting
4 0583117 Stator assy
5 0512522 Terminal, ring
6 0512746 Connecteur, 2 broches
7 0511469 Terminal, pin
8 0329168 Socket
9 0583148 Timer base sensor assy.
10 0512754 Connector
11 0511469 Terminal, pin
12 0323937 Screw
13 0328703 Washer, screw hook
14 0331927 Retainer, timer base
15 0313666 Ret., distributor base 1
16 0583033 Engine cable assy.
17 0512748 Connector, 3 pin
18 0511469 Terminal, pin
19 0308808 Cosse, plate
20 0204053 Borne, anneau 0,312" 7,9 mm diamètre
21 0511829 Ring terminal
22 0510780 8 ring termianl
23 0510884 Fuse, 20 amp.
24 0582262 Power pack This part replaces 0581404.
25 0512256 Broche, prise bobine primaire
26 0581656 Terminal, socket
27 0512753 Connector, 5 socket plug
28 0512748 Connector, 3 pin
29 0123404 Connector, 1 socket plug
30 0510818 Terminal, ring
31 0512478 Couvercle, alvéole bobine primaire
32 0582508 Coil assy
33 0123405 Connector
34 0582696 Electrical bracket assy.
35 0324814 Ecrew,exhaust cover,1 1 2"long
36 0330368 Bushing, timber base
37 0328701 Lockwasher, double ended bolt
38 0312241 Screw, electrical bracket
39 0326365 Clip, spring
40 0321077 Retainer
41 0586180 Ensemble solénoïde This part replaces 0395419.
42 0311217 Sleeve
43 0329182 Screw, ground terminal
44 0306644 Screw, rectifier mounting
45 0328703 Washer, screw hook
46 0315182 Clamp, cables
47 0303398 Screw, lower
48 0306803 Screw, retainer clamp
49 0329182 Screw, ground terminal
50 0395312 Cover assy.
51 0328725 Screw, cover to gearcase
52 0512656 Terminal block
53 0582365 H.t. lead assembly, spark plugs to ignition coil
54 0581027 Cover terminal assy, spark plug
55 0580339 Cover terminal assy, coil
56 0330112 Clamp, solenoid
57 0302325 Screw, impeller housing
58 0311349 Nut, solenoid
59 0312495 Screw, adapter to inner hsg.
60 0316487 Retainer
61 0912059 Pulley, flywheel
62 0512742 Retainer, connector
63 0325115 Screw
64 0320107 Tie strap
65 0304454 Lock washer
66 0306556 Nut, leaf screw
67 0331259 Lock washer
68 0394925 Cable, starter
69 0203688 Nut This part replaces 0328710.
