EVINRUDE-JOHNSON 582537 Power Pack

Write a Review
$99.99
SKU:
582537
Schematic Object Key:
20

EVINRUDE-JOHNSON 582537 Power Pack

$99.99

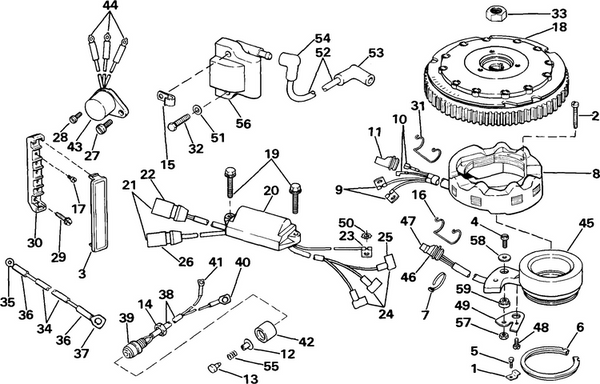

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 582537 Power Pack

Schematic Object Key : 20

Product Description: Power Pack

Category: EVINRUDE / 1985 / 65 / E65TELCOC 1985 / IGNITION SYSTEM

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0314495 Clamp, distributor base
2 0325042 Screw, starter mounting
3 0323729 Cover, terminal block This part replaces 0395255.
4 0319682 Screw, extension
5 0328714 Screw, clip
6 0313666 Ret., distributor base 1
7 0320107 Tie strap
8 0583724 Stator assy. This part replaces 0582506.
8 0582536 Charge coil, rope start
9 0511399 Terminal
10 0581656 Terminal, socket
11 0511990 Connector, 3 socket
12 0438618 Start button kit This part replaces 0327302.
13 0438618 Start button kit This part replaces 0327303.
14 0328169 Ecrou, montage interrupteur
15 0310441 Clamp, small
15 0310439 Clamp, battery cable
16 0322549 Dispositif de retenue, bouchon
17 0329182 Screw, ground terminal
18 0583222 Flywheel assy. This part replaces 0582899.
19 0328726 Screw use existing coil screw
20 0582537 Power pack
21 0511469 Terminal, pin
22 0511449 Commector, coil to power pack
23 0512131 Ring terminal
24 0512478 Couvercle, alvéole bobine primaire
25 0512256 Broche, prise bobine primaire
26 0511465 Connector, 3 pin recepticale
27 0314576 Screw This part replaces 0328720.
28 0329266 Screw, rectifier mounting
29 0306644 Screw, rectifier mounting
30 0326255 Lever, choke knob
31 0322548 Retainer, connector, 3 pin
32 0328725 Screw, cover to gearcase
33 0329267 Nut, flywheel This part replaces 0314209.
33 0329267 Nut, flywheel
34 0582393 Lead assembly
35 0510780 8 ring termianl
36 0510781 Tubing, sleeve
37 0330100 Terminal
38 0583929 Starter switch lead assy. This part replaces 0394020.
39 0391306 Cover
40 0329816 Terinal
41 0511829 Ring terminal This part replaces 0114208.
42 0328480 Mounting ring
43 0583408 Rectifier lead assy. This part replaces 0582399.
44 0510780 8 ring termianl This part replaces 0511733.
45 0583378 Time base assy. This part replaces 0583060.
46 0511991 . connector, plug
47 0581656 Terminal, socket
48 0510193 . screw, clamp cover
49 0330722 Extension, timer base
50 0328701 Lockwasher, double ended bolt
51 0328703 Washer, screw hook
52 0582365 H.t. lead assembly, spark plugs to ignition coil
53 0581027 Cover terminal assy, spark plug
54 0580339 Cover terminal assy, coil
55 0313584 Spring
56 0582508 Coil assy
57 0328712 Ecrou, montage instrument
58 0121497 Washer
59 0330721 Spacer, extension
