EVINRUDE-JOHNSON 582660 Cable Assy., To Terminal Block

Write a Review
$8.00
SKU:
582660
Schematic Object Key:
30

EVINRUDE-JOHNSON 582660 Cable Assy., To Terminal Block

$8.00

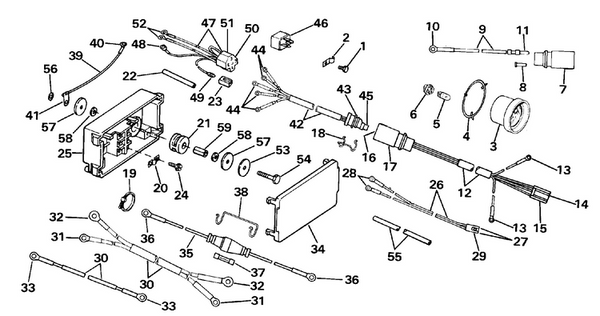

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 582660 Cable Assy., To Terminal Block

Schematic Object Key : 30

Product Description: Cable Assy., To Terminal Block

Category: EVINRUDE / 1984 / 115 / E115TXCRD 1984 / POWER TRIM/TILT ELECTRICAL

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0310981 . screw, junction box mounting
2 0317000 Cable, starter cable
3 0582878 Indicator gauge assy.
4 0123550 Locking ring
5 0122552 Ampoule
6 0122553 Bulb socket
7 0511465 Connector, 3 pin recepticale
8 0511496 Plug, seal
9 0582093 Lead assy This part replaces 0582092.
10 0510151 . . terminal
11 0511469 Terminal, pin
12 0582678 Cable assy., switch gauge
13 0511829 Ring terminal This part replaces 0114208.
14 0309433 Borne
15 0309474 . . . connector
16 0511469 Terminal, pin
17 0512432 Connecter
18 0322549 Dispositif de retenue, bouchon
19 0320107 Tie strap
0582657 0582657 Junction box cover assy.
20 0315004 . . jumper, terminal board
21 0315057 Mount, bracket
22 0316594 Tubing
23 0325699 . connector
24 0329289 Junction box cover
25 0512776 Base junction box This part replaces 0512400.
26 0582658 Cable assy., sending unit
27 0309433 Borne
28 0510780 8 ring termianl
29 0511848 . . . connector
30 0582990 Cable assy., to terminal block
30 0582660 Cable assy., to terminal block
31 0510780 8 ring termianl
32 0512062 Terminal, ring
33 0512522 Terminal, ring
34 0583707 Cover assy This part replaces 0582693.
35 0582989 Lead fuse assy
36 0510780 8 ring termianl
37 0110459 Fuse
38 0321077 Retainer
39 0582671 Lead assy. junction box ground
40 0512062 Terminal, ring
41 0512413 Terminal
42 0582672 Connector lead assy.
43 0512415 Connector
44 0510780 8 ring termianl
45 0581656 Terminal, socket
46 0586224 Relay assy. This part replaces 0582473.
47 0582986 Conn assy., blue leads trim up This part replaces 0582662.
47 0582987 Conn assy., green leads trim down This part replaces 0582666.
48 0510780 8 ring termianl
49 0511656 Terminal
50 0511865 . terminal
51 0511866 Connector
52 0512062 Terminal, ring
53 0122202 Washer
54 0303398 Screw, lower
55 0327267 Sleeve This part replaces 0512422.
56 0328701 Lockwasher, double ended bolt
57 0328700 Washer
58 0329241 Washer This part replaces 0305981.
59 0331984 Clamp, hose This part replaces 0330111.
