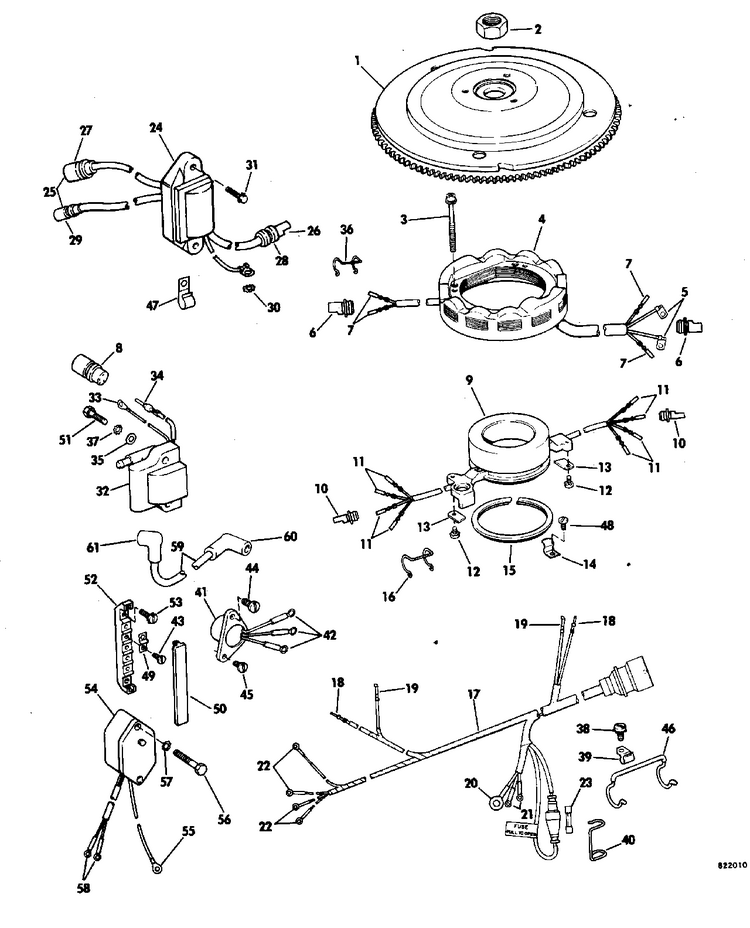

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 24
Product Description: Power Pack, Stbd. 2.6 Model
Category: JOHNSON / 1983 / 150 / J150STLCTE 1983 / IGNITION SYSTEM
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0582403 | Flywheel assy | |
2 | 0323599 | Locknut | This part replaces 0316828. |
3 | 0325135 | Screw, stator mounting | |
4 | 0582497 | Stator assy., 10 amp. | |
5 | 0511399 | Terminal | |
6 | 0511989 | Connector | |
7 | 0581656 | Terminal, socket | |
8 | 0511449 | Commector, coil to power pack | |
9 | 0582394 | Timer base sensor assy | |
10 | 0511991 | . connector, plug | |
11 | 0581656 | Terminal, socket | |
12 | 0307019 | Screw, clamp | |
13 | 0511387 | Clamp | |
14 | 0326439 | Clamp, leads | |
15 | 0313666 | Ret., distributor base 1 | |
16 | 0322549 | Dispositif de retenue, bouchon | |
17 | 0389452 | Motor cable assy | |
18 | 0511469 | Terminal, pin | |
19 | 0308808 | Cosse, plate | |
20 | 0204053 | Borne, anneau 0,312" 7,9 mm diamètre | |
21 | 0204036 | 10 ring termial,12v | |
22 | 0510780 | 8 ring termianl | |
23 | 0510884 | Fuse, 20 amp. | |
24 | 0582556 | Power pack | This part replaces 0582138. |
24 | 0582712 | Power pack, stbd. 2.6 model | |
25 | 0511469 | Terminal, pin | |
26 | 0581656 | Terminal, socket | |
27 | 0511449 | Commector, coil to power pack | |
28 | 0511991 | . connector, plug | |
29 | 0511616 | Clamp, cable | |
30 | 0030480 | Lkwash.,power pack to ground | |
31 | 0028726 | Screw,power pack to cylinder | |
32 | 0582106 | Coil assy | |
33 | 0510767 | Ring terminal | |
34 | 0511469 | Terminal, pin | |
35 | 0328703 | Washer, screw hook | This part replaces 0304051. |
36 | 0511618 | Retainer, connector, 2 pin | |
37 | 0328701 | Lockwasher, double ended bolt | This part replaces 0303480. |
38 | 0303311 | Scr,clamp,eng cable | |
39 | 0326365 | Clip, spring | |
40 | 0321077 | Retainer | |
41 | 0583408 | Rectifier lead assy. | This part replaces 0582399. |
42 | 0510780 | 8 ring termianl | This part replaces 0511733. |
43 | 0329182 | Screw, ground terminal | This part replaces 0327785. |
44 | 0314576 | Screw | |
45 | 0552421 | Screw, rectifier mounting | |
46 | 0315182 | Clamp, cables | |
47 | 0310441 | Clamp, small | This part replaces 0310493. |
48 | 0302812 | Screw, ground terminal | |
49 | 0315004 | . . jumper, terminal board | |
50 | 0323729 | Cover, terminal block | This part replaces 0390318. |
51 | 0328725 | Screw, cover to gearcase | |
52 | 0326255 | Lever, choke knob | |
53 | 0341474 | Screw, cover | This part replaces 0510195. |
54 | 0173640 | Voltage regualtor kit | |
55 | 0510818 | Terminal, ring | |
56 | 0304913 | Screw, mounting | |
57 | 0306488 | Lock washer, solenoid ground | |
58 | 0510780 | 8 ring termianl | |
59 | 0582365 | H.t. lead assembly, spark plugs to ignition coil | |
60 | 0581027 | Cover terminal assy, spark plug | |
61 | 0580339 | Cover terminal assy, coil |
