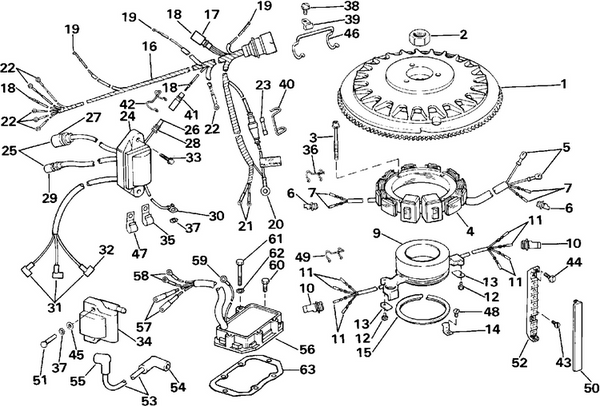

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 24
Product Description: Power Pack
Category: JOHNSON / 1987 / 155 / J155WTXCUA 1987 / IGNITION SYSTEM - 35 AMP
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0583844 | Flywheel assy. | This part replaces 0582572. |
2 | 0323599 | Locknut | This part replaces 0316828. |
3 | 0512321 | Screw, stator mount 175, 185, 235 | |
4 | 0583050 | Stator assy. | |
5 | 0204038 | . . . ring terminal | |
6 | 0512745 | Connector | |
7 | 0581656 | Terminal, socket | |
9 | 0583129 | Timber base sensor assy | |
10 | 0512749 | Connector | |
11 | 0581656 | Terminal, socket | |
12 | 0307019 | Screw, clamp | |
13 | 0511387 | Clamp | |
14 | 0326439 | Clamp, leads | |
15 | 0313666 | Ret., distributor base 1 | |
16 | 0583035 | Engine cable assy | |
17 | 0512748 | Connector, 3 pin | |
18 | 0511469 | Terminal, pin | |
19 | 0308808 | Cosse, plate | |
20 | 0204053 | Borne, anneau 0,312" 7,9 mm diamètre | |
21 | 0204036 | 10 ring termial,12v | |
22 | 0510780 | 8 ring termianl | |
23 | 0510884 | Fuse, 20 amp. | |
24 | 0583114 | Power pack | |
25 | 0511469 | Terminal, pin | |
26 | 0581656 | Terminal, socket | |
27 | 0512750 | Connector, 4 pin | |
28 | 0123404 | Connector, 1 socket plug | |
29 | 0512746 | Connecteur, 2 broches | |
30 | 0512131 | Ring terminal | |
31 | 0512478 | Couvercle, alvéole bobine primaire | |
32 | 0512256 | Broche, prise bobine primaire | |
33 | 0328726 | Screw use existing coil screw | |
34 | 0582508 | Coil assy | |
35 | 0330151 | Cable clamp, filter | This part replaces 0309322. |
36 | 0512741 | Retainer, connector, 1 pin | |
37 | 0328701 | Lockwasher, double ended bolt | |
38 | 0303311 | Scr,clamp,eng cable | |
39 | 0326365 | Clip, spring | |
40 | 0321077 | Retainer | |
41 | 0123405 | Connector | |
42 | 0512741 | Retainer, connector, 1 pin | |
43 | 0329182 | Screw, ground terminal | |
44 | 0306644 | Screw, rectifier mounting | |
45 | 0328703 | Washer, screw hook | |
46 | 0315182 | Clamp, cables | |
47 | 0310441 | Clamp, small | This part replaces 0310493. |
48 | 0328714 | Screw, clip | |
49 | 0512743 | Retainer | |
50 | 0395357 | Cover assy | |
51 | 0328725 | Screw, cover to gearcase | |
52 | 0329895 | Block, terminal | |
53 | 0582365 | H.t. lead assembly, spark plugs to ignition coil | |
54 | 0581027 | Cover terminal assy, spark plug | |
55 | 0580339 | Cover terminal assy, coil | |
56 | 0395204 | Rectifier regulator | |
57 | 0512550 | Terminal | This part replaces 0512551. |
58 | 0510780 | 8 ring termianl | This part replaces 0511733. |
59 | 0204053 | Borne, anneau 0,312" 7,9 mm diamètre | This part replaces 0330254. |
60 | 0306049 | Screw | |
61 | 0321375 | Screw | |
62 | 0328701 | Lockwasher, double ended bolt | |
63 | 0322858 | Gasket |
