EVINRUDE-JOHNSON 583957 Cable Ay

Write a Review
$14.99
SKU:
583957
Schematic Object Key:
96

EVINRUDE-JOHNSON 583957 Cable Ay

$14.99

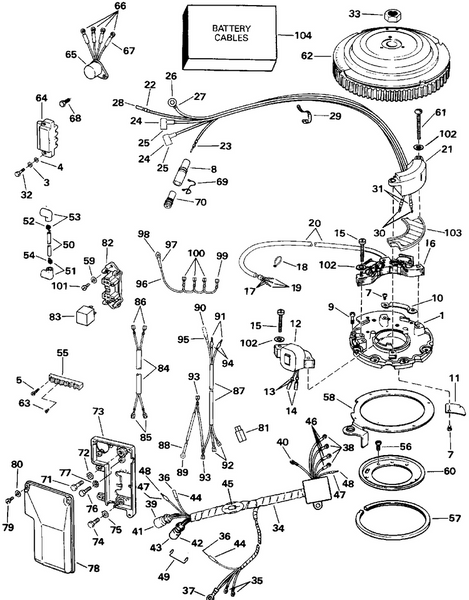

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 583957 Cable Ay

Schematic Object Key : 96

Product Description: Cable Ay

Category: JOHNSON / 1992 / 35 / J50JENM 1992 / IGNITION SYSTEM - ELECTRIC START TE-TTL MDLS ("M" SUFFIX)

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0583285 Plat sleeve assy.
3 0328701 Lockwasher, double ended bolt
4 0328703 Washer, screw hook
5 0309483 Screw, terminal block rectifier
7 0303212 Screw, cover
8 0513357 Connector, 1 pin receptacle
9 0511460 Screw, ignition plate
10 0511458 . clamp, leads
11 0511459 . cover, leads
12 0584333 Charge coil lam. assy.
13 0513654 Sleeve, socket
14 0512876 Terminal, socket
15 0320504 Screw, bracket to carburetor
16 0584341 Stator assembly
17 0512136 Tubing
18 0318322 Attache câble
19 0510780 8 ring termianl
20 0511601 Sleeve, leads
21 0584489 Ignition module
22 0513186 Sheath, cell
23 0511469 Terminal, pin
24 0512478 Couvercle, alvéole bobine primaire
25 0512256 Broche, prise bobine primaire
26 0511829 Ring terminal
27 0510781 Tubing, sleeve
28 0512876 Terminal, socket
29 0317893 Tie strap
30 0512947 Terminal, bullet
31 0513185 Sleeve
32 0302325 Screw, impeller housing
33 0326111 Nut
34 0584216 Motor cable assy.
35 0204036 10 ring termial,12v
36 0512876 Terminal, socket
37 0330100 Terminal
38 0511829 Ring terminal
39 0512747 Connector, 3 socket
40 0512062 Terminal, ring
41 0581656 Terminal, socket
42 0512750 Connector, 4 pin
43 0511469 Terminal, pin
44 0513186 Sheath, cell
45 0583898 Diode
46 0510781 Tubing, sleeve
47 0513185 Sleeve
48 0512947 Terminal, bullet
49 0512742 Retainer, connector
50 0582365 H.t. lead assembly, spark plugs to ignition coil
51 0581027 Cover terminal assy, spark plug
52 0510231 Spring
53 0580339 Cover terminal assy, coil
54 0510231 Spring
55 0512762 Terminal block
56 0332070 Screw, retaining plate This part replaces 0326875.
57 0322435 Bearing, timer base plate to
58 0332790 Retainer
59 0328739 Rondelle entre ancrage et support
60 0332063 Plate, support
61 0330184 Screw This part replaces 0306259.
62 0584261 Flywheel assy
63 0329182 Screw, ground terminal
63 0318324 Screw, cover mounting
64 0583740 Coil assy
65 0581778 Rectifier lead assy.
66 0510780 8 ring termianl
67 0510781 Tubing, sleeve
68 0306644 Screw, rectifier mounting
69 0512741 Retainer, connector, 1 pin
70 0513356 Connector, 1 socket plug
71 0330930 Screw, plate 3 8 16 x 1 This part replaces 0335021.
72 0307161 Lock washer, anode
73 0334189 Bracket
74 0335020 Screw, bracket to block
75 0328701 Lockwasher, double ended bolt
76 0306644 Screw, rectifier mounting
76 0309483 Screw, terminal block rectifier
77 0303701 Lock washer, adjustment screw
78 0333757 Cover
79 0306643 Screw
80 0328735 Washer, screw, ball joint
0583954 0583954 Relay cable ay.
81 0325699 . connector
82 0334191 Bracket
83 0586224 Relay assy. This part replaces 0584416.
84 0583955 Cable ay
85 0511656 Terminal
86 0513166 Terminal, receptacle
87 0583956 Cable ay
88 0510781 Tubing, sleeve
89 0510780 8 ring termianl
90 0512876 Terminal, socket
91 0512947 Terminal, bullet
92 0513166 Terminal, receptacle
93 0513167 Terminal, receptacle
94 0513185 Sleeve
95 0513186 Sheath, cell
96 0583957 Cable ay
97 0510781 Tubing, sleeve
98 0511829 Ring terminal
99 0513166 Terminal, receptacle
100 0513167 Terminal, receptacle
102 0303952 Washer, stator mounting
103 0513870 Pad, ignition module
104 0584381 Battery cable
