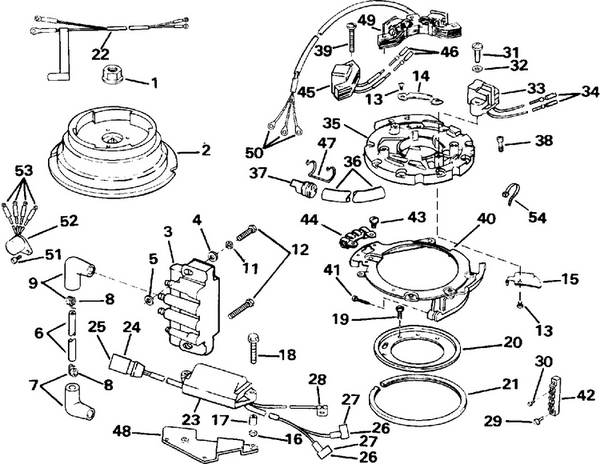

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 2
Product Description: Flywheel Assembly
Category: EVINRUDE / 1993 / 8 / E8RLETB 1993 / IGNITION
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 0326016 | Nut, flywheel | |
| 2 | 0584222 | Flywheel assembly | |
| 3 | 0583740 | Coil assy | |
| 4 | 0329241 | Washer | |
| 5 | 0329176 | Fiber washer, ignition coil | |
| 6 | 0582365 | H.t. lead assembly, spark plugs to ignition coil | |
| 7 | 0581027 | Cover terminal assy, spark plug | |
| 8 | 0510231 | Spring | |
| 9 | 0580339 | Cover terminal assy, coil | |
| 10 | 0510231 | Spring | |
| 11 | 0328701 | Lockwasher, double ended bolt | |
| 12 | 0331025 | Screw | |
| 13 | 0303212 | Screw, cover | |
| 14 | 0511458 | . clamp, leads | |
| 15 | 0511459 | . cover, leads | |
| 16 | 0328701 | Lockwasher, double ended bolt | |
| 17 | 0323144 | Spacer | |
| 18 | 0328726 | Screw use existing coil screw | |
| 19 | 0332070 | Screw, retaining plate | This part replaces 0326875. |
| 20 | 0332063 | Plate, support | |
| 21 | 0322435 | Bearing, timer base plate to | |
| 22 | 0582976 | Cable assy., battery | |
| 23 | 0586800 | Power pack assembly | This part replaces 0582285. |
| 24 | 0512754 | Connector | |
| 25 | 0511469 | Terminal, pin | |
| 26 | 0512478 | Couvercle, alvéole bobine primaire | |
| 27 | 0512256 | Broche, prise bobine primaire | |
| 28 | 0512131 | Ring terminal | |
| 29 | 0333677 | Screw | This part replaces 0304015. |
| 30 | 0329182 | Screw, ground terminal | |
| 31 | 0319682 | Screw, extension | |
| 32 | 0328735 | Washer, screw, ball joint | |
| 33 | 0583387 | Sensor assembly | |
| 34 | 0581656 | Terminal, socket | |
| 35 | 0582417 | Plate sleeve assembly | |
| 36 | 0512765 | Bracket | |
| 37 | 0512753 | Connector, 5 socket plug | |
| 38 | 0511460 | Screw, ignition plate | |
| 39 | 0337522 | Screw, stator | |
| 40 | 0439954 | Retainer, cam link assy | This part replaces 0434154. |
| 41 | 0330346 | Screw, adjustment | |
| 42 | 0511949 | Terminal block | |
| 43 | 0306014 | Screw, throttle adjustment | |
| 44 | 0334245 | Retainer | |
| 45 | 5000611 | Charge coil lam. assy. | This part replaces 0584504. |
| 46 | 0581656 | Terminal, socket | |
| 47 | 0512743 | Retainer | |
| 48 | 0513923 | Plate, power pack mounting | |
| 49 | 0582930 | Stator assy. | |
| 50 | 0510780 | 8 ring termianl | |
| 51 | 0305514 | Screw, rectifier mounting | |
| 52 | 0173692 | Rectifier assembly, dc | |
| 53 | 0510780 | 8 ring termianl | This part replaces 0511733. |
| 54 | 0320107 | Tie strap |
