EVINRUDE-JOHNSON 584453 Flywheel

Write a Review
$169.99
SKU:
584453
Schematic Object Key:
3

EVINRUDE-JOHNSON 584453 Flywheel

$169.99

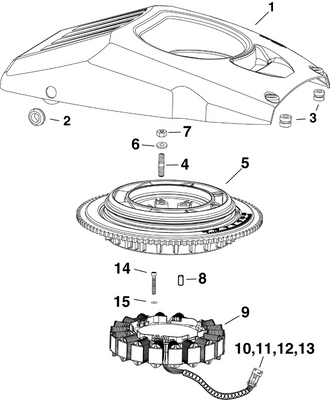

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 584453 Flywheel

Schematic Object Key : 3

Product Description: Flywheel

Category: EVINRUDE / 1996 / 15 / BE15FWLEDC 1996 / IGNITION - ELECTRIC START

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0328701 Lockwasher, double ended bolt
2 0302944 Nit,flywheel
3 0584453 Flywheel
4 0584821 Stator assy.
4 0584954 Stator assy,
5 0513665 Plug
6 0513664 Connector
7 0911729 O ring
8 0513439 Terminal
9 0514106 Connector
10 0317893 Tie strap
11 0513667 Terminal
12 0586136 Ignition module
13 0511469 Terminal, pin
14 0512478 Couvercle, alvéole bobine primaire
15 0512256 Broche, prise bobine primaire
16 0514158 Ring terminal
17 0512748 Connector, 3 pin
18 0338607 Screw, rect reg to crankcase
19 0124485 Screw, pickup assy, to tank This part replaces 0337362.
20 0337392 Screw, stator to crankcase
21 0337392 Screw, stator to crankcase
22 0339019 Screw, front, lower cover, m6x40
23 0584460 Cable, battery
24 0514537 Retainer, connector
25 0338607 Screw, rect reg to crankcase
26 0584890 Rectifier regulator
27 0317893 Tie strap
28 0512876 Terminal, socket
29 0512947 Terminal, bullet
30 0513185 Sleeve
31 0513186 Sheath, cell
32 0513663 Connector
33 0513665 Plug
34 0513666 Terminal
35 0585081 Rectifier
36 0317893 Tie strap
37 0512876 Terminal, socket
38 0513185 Sleeve
39 0512947 Terminal, bullet
40 0513186 Sheath, cell
41 0513663 Connector
42 0513665 Plug
43 0513666 Terminal
44 0584451 Ignition coil assy.
45 0585092 Lead assy., spark plug
46 0580339 Cover terminal assy, coil
47 0510231 Spring
48 0328701 Lockwasher, double ended bolt
49 0511496 Plug, seal
50 0328703 Washer, screw hook
51 0514551 Spacer, retainer
