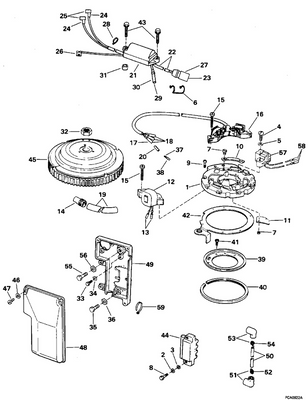

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 25
Replacement: This part (584488) replaces 0583667.
Product Description: Ignition Module
Category: JOHNSON / 1991 / 9.9 / J10ELEIR 1991 / IGNITION
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 0302944 | Nit,flywheel | |
| 2 | 0583913 | Flywheel assembly | |
| 2 | 0583915 | Flywheel ring gear assy. | |
| 3 | 0582508 | Coil assy | |
| 4 | 0328703 | Washer, screw hook | |
| 5 | 0329176 | Fiber washer, ignition coil | |
| 6 | 0582365 | H.t. lead assembly, spark plugs to ignition coil | |
| 7 | 0581027 | Cover terminal assy, spark plug | |
| 8 | 0510231 | Spring | |
| 9 | 0580339 | Cover terminal assy, coil | |
| 10 | 0510231 | Spring | |
| 11 | 0328701 | Lockwasher, double ended bolt | |
| 12 | 0325115 | Screw | |
| 13 | 0331025 | Screw | |
| 14 | 0330151 | Cable clamp, filter | |
| 15 | 0303212 | Screw, cover | |
| 16 | 0511458 | . clamp, leads | |
| 17 | 0331626 | Cover, leads | |
| 18 | 0320504 | Screw, bracket to carburetor | |
| 19 | 0584341 | Stator assembly | |
| 20 | 0510780 | 8 ring termianl | |
| 21 | 0512136 | Tubing | |
| 22 | 0314417 | Screw, pump to base | |
| 23 | 0331591 | Spring screw, idle stop | |
| 24 | 0330184 | Screw | This part replaces 0306259. |
| 25 | 0584488 | Ignition module | This part replaces 0583667. |
| 26 | 0512256 | Broche, prise bobine primaire | |
| 27 | 0512478 | Couvercle, alvéole bobine primaire | |
| 28 | 0512131 | Ring terminal | |
| 29 | 0511469 | Terminal, pin | |
| 30 | 0512947 | Terminal, bullet | |
| 31 | 0513185 | Sleeve | |
| 32 | 0513109 | Tubing, models leads | |
| 33 | 0513357 | Connector, 1 pin receptacle | |
| 34 | 0513356 | Connector, 1 socket plug | |
| 35 | 0512741 | Retainer, connector, 1 pin | |
| 36 | 0584333 | Charge coil lam. assy. | |
| 37 | 0512876 | Terminal, socket | |
| 38 | 0513654 | Sleeve, socket | |
| 39 | 0583285 | Plat sleeve assy. | |
| 40 | 0511460 | Screw, ignition plate | |
| 41 | 0395243 | Retainer link assembly | |
| 42 | 0330579 | Bumper | |
| 43 | 0396740 | Cam, throttle control | |
| 44 | 0330346 | Screw, adjustment | |
| 45 | 0315287 | Screw | |
| 46 | 0322102 | Plate, support | |
| 47 | 0322435 | Bearing, timer base plate to | |
| 48 | 0513029 | Spacer | |
| 49 | 0581778 | Rectifier lead assy. | |
| 50 | 0510780 | 8 ring termianl | |
| 51 | 0510781 | Tubing, sleeve | |
| 52 | 0315260 | Screw, rectifier mounting | |
| 53 | 0512762 | Terminal block | |
| 54 | 0341474 | Screw, cover | This part replaces 0510195. |
| 55 | 0329182 | Screw, ground terminal | |
| 56 | 0552421 | Screw, rectifier mounting | |
| 57 | 0308824 | Nut | |
| 58 | 0303952 | Washer, stator mounting | |
| 59 | 0513870 | Pad, ignition module |
