EVINRUDE-JOHNSON 584584 Flywheel Assembly

Write a Review
$199.99
SKU:
584584
Schematic Object Key:
2

EVINRUDE-JOHNSON 584584 Flywheel Assembly

$199.99

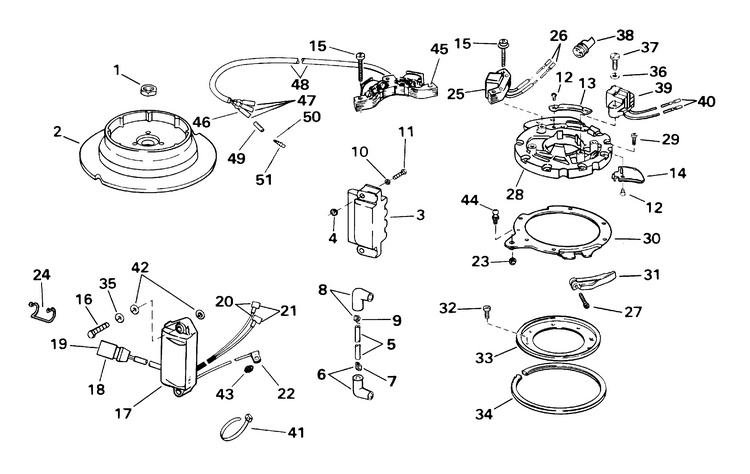

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 584584 Flywheel Assembly

Schematic Object Key : 2

Product Description: Flywheel Assembly

Category: EVINRUDE / 2001 / 15 / SE15BASIR rope start, tiller, 15 in shaft, n/a usa 2001 / IGNITION - ROPE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0302944 Nit,flywheel
2 0584584 Flywheel assembly
3 0583740 Coil assy
4 0329176 Fiber washer, ignition coil
5 0582365 H.t. lead assembly, spark plugs to ignition coil
6 0581027 Cover terminal assy, spark plug
7 0510231 Spring
8 0580339 Cover terminal assy, coil
9 0510231 Spring
10 0328701 Lockwasher, double ended bolt
11 0328726 Screw use existing coil screw
12 0303212 Screw, cover
13 0511458 . clamp, leads
14 0511459 . cover, leads
15 0337522 Screw, stator
16 0329110 Screw, clamp to cover
17 0586798 Power pack This part replaces 0584783.
18 0512754 Connector
19 0511469 Terminal, pin
20 0512478 Couvercle, alvéole bobine primaire
21 0512256 Broche, prise bobine primaire
22 0512131 Ring terminal
23 0123603 Locknut, cover This part replaces 0338146.
24 0512743 Retainer
25 0584840 Charge coil lam assy.
26 0581656 Terminal, socket
27 0330346 Screw, adjustment
28 0582417 Plate sleeve assembly
29 0511460 Screw, ignition plate
30 0338215 Retainer
31 0338179 Cam, throttle
32 0315287 Screw
33 0322102 Plate, support
34 0322435 Bearing, timer base plate to
35 0328703 Washer, screw hook
36 0328735 Washer, screw, ball joint
37 0319682 Screw, extension
38 0512753 Connector, 5 socket plug
39 0583387 Sensor assembly This part replaces 0584716.
40 0581656 Terminal, socket
41 0320107 Tie strap
42 0329176 Fiber washer, ignition coil
43 0328701 Lockwasher, double ended bolt
44 0339083 Ball joint
45 0584507 Stator assembly
46 0513654 Sleeve, socket
47 0512876 Terminal, socket
48 0512765 Bracket
49 0328074 Cap, bullet
50 0512947 Terminal, bullet
51 0513185 Sleeve
