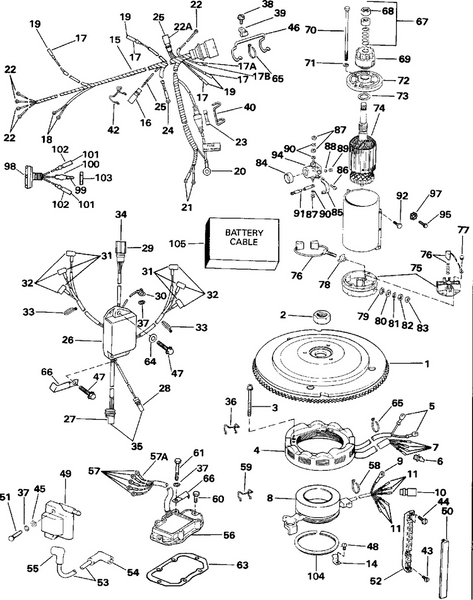

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 98
Replacement: This part (585146) replaces 0583803.
Product Description: Switch Assembly
Category: EVINRUDE / 1991 / 150 / E150CXEIE 1991 / IGNITION SYSTEM - 150 MODELS
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0582403 | Flywheel assy | |
2 | 0323599 | Locknut | |
3 | 0325135 | Screw, stator mounting | |
4 | 0583837 | Stator assy. | |
5 | 0511829 | Ring terminal | |
6 | 0512749 | Connector | |
7 | 0581656 | Terminal, socket | |
8 | 0583715 | Timer base sensor assy. | |
9 | 0510818 | Terminal, ring | |
10 | 0513201 | Connector | |
11 | 0511469 | Terminal, pin | |
14 | 0326439 | Clamp, leads | |
15 | 0584220 | Engine cable assy. | |
16 | 0513357 | Connector, 1 pin receptacle | |
17 | 0513186 | Sheath, cell | |
17A | 0513185 | Sleeve | |
17B | 0512947 | Terminal, bullet | |
18 | 0511829 | Ring terminal | |
19 | 0512876 | Terminal, socket | |
20 | 0204053 | Borne, anneau 0,312" 7,9 mm diamètre | |
21 | 0204036 | 10 ring termial,12v | |
22 | 0510780 | 8 ring termianl | |
22A | 0512750 | Connector, 4 pin | |
23 | 0510884 | Fuse, 20 amp. | |
24 | 0510818 | Terminal, ring | |
25 | 0511469 | Terminal, pin | |
26 | 0584044 | Power pack | |
27 | 0513202 | Connector | |
28 | 0513356 | Connector, 1 socket plug | |
29 | 0512750 | Connector, 4 pin | |
30 | 0510780 | 8 ring termianl | This part replaces 0511733. |
31 | 0512478 | Couvercle, alvéole bobine primaire | |
32 | 0512256 | Broche, prise bobine primaire | |
33 | 0317893 | Tie strap | |
34 | 0511469 | Terminal, pin | |
35 | 0581656 | Terminal, socket | |
36 | 0512743 | Retainer | |
37 | 0328701 | Lockwasher, double ended bolt | |
38 | 0328724 | Screw | |
39 | 0326365 | Clip, spring | |
40 | 0321077 | Retainer | |
42 | 0512741 | Retainer, connector, 1 pin | |
43 | 0329182 | Screw, ground terminal | |
44 | 0306644 | Screw, rectifier mounting | |
45 | 0328703 | Washer, screw hook | |
46 | 0315182 | Clamp, cables | |
47 | 0328726 | Screw use existing coil screw | |
47 | 0328725 | Screw, cover to gearcase | |
48 | 0328714 | Screw, clip | |
49 | 0582508 | Coil assy | |
50 | 0432297 | Cover assy. | |
51 | 0328726 | Screw use existing coil screw | |
52 | 0326255 | Lever, choke knob | |
53 | 0582365 | H.t. lead assembly, spark plugs to ignition coil | |
54 | 0581027 | Cover terminal assy, spark plug | |
55 | 0580339 | Cover terminal assy, coil | |
56 | 0585195 | Rectifier regulator assy. | This part replaces 0584204. |
57 | 0511829 | Ring terminal | |
57A | 0510781 | Tubing, sleeve | |
58 | 0317893 | Tie strap | |
59 | 0513239 | Retainer, 6 terminal connector | |
60 | 0306409 | Screw, anchor block lower | |
61 | 0306778 | Ecrew,exhaust cover,1 3 8"long | |
63 | 0322858 | Gasket | |
64 | 0328701 | Lockwasher, double ended bolt | |
65 | 0320107 | Tie strap | |
66 | 0316487 | Retainer | |
0395207 | 0395207 | Electric starter assy. | |
67 | 0393285 | Nut spring spacer | |
68 | 0393354 | Nut spring spacer kit | This part replaces 0316740. |
69 | 0387683 | Drive assy | |
70 | 0387938 | Thru bolt pkg | |
71 | 0321568 | Lockwasher | |
72 | 0386639 | . cap assy. | |
73 | 0316750 | . washer, thrust | |
74 | 0387682 | Armature | |
75 | 0386645 | Cap assy ., commutator | |
76 | 0385952 | Brush spring set | |
77 | 0387680 | Bolt | |
78 | 0316743 | Bushing, insulation | |
79 | 0316748 | Washer, insulation | |
80 | 0316749 | Washer, lock | |
81 | 0306396 | Lock washer, control to boat | This part replaces 0316744. |
82 | 0387678 | Nut and washer | |
83 | 0321642 | . . nut, input stud | |
84 | 0311217 | Sleeve | |
85 | 0330112 | Clamp, solenoid | |
86 | 0329217 | Screw, retainer | |
87 | 0311349 | Nut, solenoid | |
88 | 0304454 | Lock washer | |
89 | 0306556 | Nut, leaf screw | |
90 | 0331259 | Lock washer | |
91 | 0394925 | Cable, starter | |
92 | 0302860 | Screw. starter motor | |
94 | 0586180 | Ensemble solénoïde | This part replaces 0395419. |
95 | 0908158 | Screw, anode | This part replaces 0305284. |
97 | 0328701 | Lockwasher, double ended bolt | |
98 | 0585146 | Switch assembly | This part replaces 0583803. |
99 | 0512947 | Terminal, bullet | |
100 | 0513185 | Sleeve | |
101 | 0512876 | Terminal, socket | |
102 | 0513186 | Sheath, cell | |
103 | 0334656 | Nut | |
104 | 0313666 | Ret., distributor base 1 |
