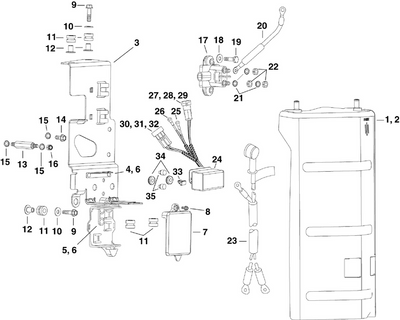

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 30
Product Description: Connector & Seal, 2 Position Plug
Category: EVINRUDE / 2011 / 25 / E25DRIIR / ELECTRICAL HARNESS, C, H, R, S-suffix
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0587061 | Engine harness assembly | |
2 | 0204363 | Terminal, ring | |
3 | 0514679 | Borne, broche | |
4 | 0514680 | Socket | |
5 | 0514681 | Lock wedge, 3 socket | |
6 | 0514683 | Cale verrouillage, fiche 6 broches | |
7 | 0514684 | Lock wedge, 6 pin | |
8 | 0514690 | Bouchon, mâle | |
9 | 3010123 | Connector seal, 2 socket plug | |
10 | 3010125 | Terminal, socket | |
11 | 0514582 | Connector, 2 pin plug | |
12 | 0514583 | Terminal | |
13 | 3011147 | Contact, female receptacle included in accessory terminal service kit, p n 777283 | |
14 | 3011148 | Contact, tab included in accessory terminal service kit, p n 777283 | |
15 | 3011149 | Seal, wire | |
16 | 3011153 | Connecteur, fiche 2 positions | |
17 | 3011155 | Connecteur, fiche 3 positions | |
18 | 3011170 | Connector seal, 34 position plug | |
19 | 3011171 | Terminal | |
20 | 3011326 | Connector seal, 3 socket plug | |
21 | 3011327 | Connector, 6 pin receptacle | |
22 | 3011328 | Connector seal, 6 socket plug | |
23 | 3011420 | Connector | |
24 | 3011446 | Connecteur, fiche 3 positions | |
25 | 3011447 | Joint, fil | |
26 | 3011448 | Borne | |
27 | 3011469 | Connector, 2 pin receptacle | |
28 | 3011523 | Connector seal, 2 pin plug | |
29 | 0514697 | Lock wedge, 2 pin | |
30 | 0586078 | Connector seal, 2 position plug | |
31 | 3011154 | Connector, 2 position plug | |
32 | 3011158 | Connector, 6 position | |
33 | 0586812 | Conn seal dr models | |
34 | 3011150 | Plug, sealing | |
NS | 0317893 | Tie strap | |
35 | 5007748 | Plug tie strap | |
36 | 0586076 | Joint, connecteur systemcheck dr, dte dtl models only | |
37 | 0514683 | Cale verrouillage, fiche 6 broches | |
38 | 0514687 | Connecteur, fiche 6 broches | |
39 | 0514690 | Bouchon, mâle | |
40 | 0586077 | Seal assy, key switch dr, dte dtl models only | |
41 | 0514688 | Connector, 6 pin | |
42 | 0514690 | Bouchon, mâle | |
43 | 0587106 | Seal assembly, tiller control harness del dpl models only | |
44 | 3011157 | Connecteur, fiche 6 positions | |
45 | 3011150 | Plug, sealing | |
46 | 3011450 | Clip | |
47 | 0587095 | Cable assembly, trim harness dpl models only | |
48 | 0510818 | Terminal, ring | |
49 | 3011329 | Connector, 3 pin receptacle | |
50 | 0514682 | Lock wedge, 3 pin | |
51 | 0514679 | Borne, broche | |
52 | 3011156 | Connector, 3 position | |
53 | 3011148 | Contact, tab included in accessory terminal service kit, p n 777283 | |
54 | 3011149 | Seal, wire | |
55 | 3011153 | Connecteur, fiche 2 positions | |
56 | 3011147 | Contact, female receptacle included in accessory terminal service kit, p n 777283 | |
57 | 0586780 | Interrupteur, point mort all models | |
58 | 3011153 | Connecteur, fiche 2 positions | |
59 | 3011147 | Contact, female receptacle included in accessory terminal service kit, p n 777283 | |
60 | 3011225 | Seal, wire | |
61 | 0587093 | Faisceau, barre dr, dte dtl models only | |
62 | 3011157 | Connecteur, fiche 6 positions | |
63 | 3011153 | Connecteur, fiche 2 positions | |
64 | 3011147 | Contact, female receptacle included in accessory terminal service kit, p n 777283 | |
65 | 3011149 | Seal, wire | |
66 | 0586812 | Conn seal dr models | |
67 | 3011150 | Plug, sealing | |
68 | 3011154 | Connector, 2 position plug | |
NS | 0353722 | Bracket, troll switch | |
NS | 0317893 | Tie strap | |
69 | 0586995 | Cable assy, start switch dte dtl models only | |
70 | 0327805 | Ãcrou | |
71 | 3011154 | Connector, 2 position plug | |
72 | 3011152 | Connecteur, capuchon 1 position | |
73 | 3011151 | Connecteur, fiche 1 position | |
74 | 3011150 | Plug, sealing | |
75 | 3011148 | Contact, tab included in accessory terminal service kit, p n 777283 | |
76 | 3011149 | Seal, wire | |
77 | 0586996 | Interrupteur, correction d assiette dtl models only | |
78 | 3011147 | Contact, female receptacle included in accessory terminal service kit, p n 777283 | |
79 | 3011149 | Seal, wire | |
80 | 3011153 | Connecteur, fiche 2 positions |
