EVINRUDE-JOHNSON 586367 Stator Assy.

Write a Review
$232.99
SKU:
586367
Schematic Object Key:
8

EVINRUDE-JOHNSON 586367 Stator Assy.

$232.99

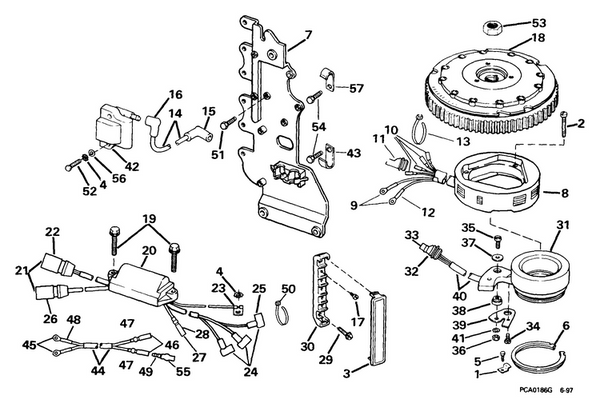

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 586367 Stator Assy.

Schematic Object Key : 8

Product Description: Stator Assy.

Category: JOHNSON / 1999 / 65 / J65WRYEES 1999 / IGNITION SYSTEM

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0314495 Clamp, distributor base
2 0325042 Screw, starter mounting
3 0329896 Cover, terminal block
4 0328701 Lockwasher, double ended bolt
5 0306014 Screw, throttle adjustment
6 0313666 Ret., distributor base 1
7 0514222 Bracket, electrical
8 0586367 Stator assy.
9 0511829 Ring terminal
10 0581656 Terminal, socket
11 0512753 Connector, 5 socket plug
12 0510781 Tubing, sleeve
13 0317893 Tie strap
14 0582365 H.t. lead assembly, spark plugs to ignition coil
15 0581027 Cover terminal assy, spark plug
16 0580339 Cover terminal assy, coil
17 0329182 Screw, ground terminal
18 0584360 Flywheel assy.
19 0328726 Screw use existing coil screw
20 0583786 Power pack
21 0511469 Terminal, pin
22 0512750 Connector, 4 pin
23 0512131 Ring terminal
24 0512478 Couvercle, alvéole bobine primaire
25 0512256 Broche, prise bobine primaire
26 0512754 Connector
27 0512876 Terminal, socket
28 0513186 Sheath, cell
29 0306644 Screw, rectifier mounting
30 0329895 Block, terminal
31 0584558 Timer base assy.
32 0512749 Connector
33 0581656 Terminal, socket
34 0307019 Screw, clamp
35 0319682 Screw, extension
36 0328712 Ecrou, montage instrument
37 0121497 Washer
38 0330721 Spacer, extension
39 0330722 Extension, timer base
40 0511482 Sleeve
41 0303701 Lock washer, adjustment screw
42 0582508 Coil assy
43 0323492 Clamp, fuel filter
44 0583356 Cable assy., ac lighting
45 0511829 Ring terminal
46 0512876 Terminal, socket
47 0513186 Sheath, cell
48 0510781 Tubing, sleeve
49 0512947 Terminal, bullet
50 0317893 Tie strap
51 0305513 Screw This part replaces 0308739.
52 0328725 Screw, cover to gearcase
53 0329267 Nut, flywheel
54 0306643 Screw This part replaces 0324064.
55 0513185 Sleeve
56 0328703 Washer, screw hook
57 0511411 . . clamp
