EVINRUDE-JOHNSON 586436 Sensor Assy., Crank Position

Write a Review
$113.49
SKU:
586436
Schematic Object Key:
39

EVINRUDE-JOHNSON 586436 Sensor Assy., Crank Position

$113.49

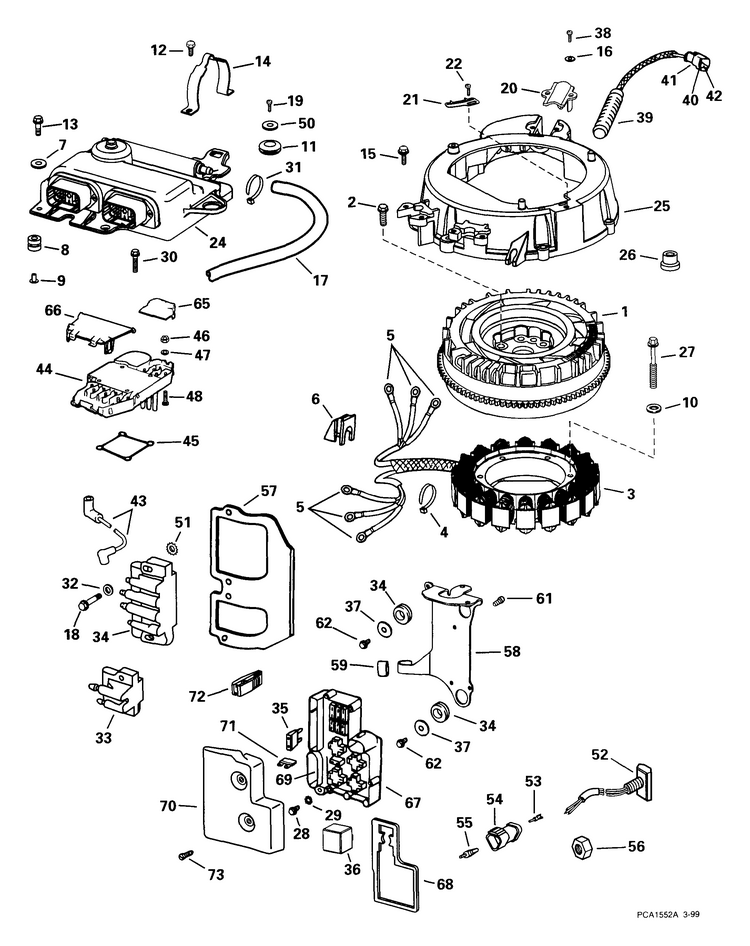

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 586436 Sensor Assy., Crank Position

Schematic Object Key : 39

Product Description: Sensor Assy., Crank Position

Category: EVINRUDE / 1999 / 150 / E150FCXEEA 1999 / ELECTRICAL SYSTEM

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0586338 Flywheel assy.
2 0336135 Screw, flywheel
3 0585257 Stator assy.
4 0320107 Tie strap
5 0512550 Terminal
6 0343740 Retainer, cables x
7 0328703 Washer, screw hook
8 0333040 Isolator
9 0338558 Entretoise, à collerette
10 0360252 Washer This part replaces 0306311.
11 0329518 Grommet, esm mounting
12 0331036 Screw
13 0333710 Screw, anchor bracket
14 0514891 Clamp, capacitor
15 0909533 Screw, adapter
16 0328735 Washer, screw, ball joint
17 0344789 Hose, ecu to 30ø fitting
17 0346531 Hose, ecu drain
18 0331025 Screw
19 0909676 Screw
20 0343468 Cover, sensor
21 0352846 Timing pointer This part replaces 0344776.
22 0315656 Screw
24 0586496 Ecu ign. module, 150 "v" suffix only
24 0586496 Ecu ign. module, 150 "v" suffix only
24 0586496 Ecu ign. module, 150 "v" suffix only
24 0586496 Ecu ign. module, 150 "v" suffix only
24 0586496 Ecu ign. module, 150 "v" suffix only
24 0586496 Ecu ign. module, 150 "v" suffix only
24 0586496 Ecu ign. module, 150 "v" suffix only
24 0586496 Ecu ign. module, 150 "v" suffix only
24 0586496 Ecu ign. module, 150 "v" suffix only
24 0586496 Ecu ign. module, 150 "v" suffix only
25 5004519 Cover assy, flywheel This part replaces 0439751.
26 0341613 Bague, pignon arbre vers carter moteur
27 0343525 Screw, stator
28 0328724 Screw
29 0328701 Lockwasher, double ended bolt
30 3010525 Screw, regulator
31 0320107 Tie strap
32 0328703 Washer, screw hook
33 0586333 Coil assy., single
34 0583740 Coil assy
35 0514766 Fuse, 10 amp, spare
36 0586224 Relay assy.
37 0328700 Washer
38 0315656 Screw
39 0586436 Sensor assy., crank position
40 0514679 Borne, broche
41 0514696 Connector, 2 pin receptacle
42 0514697 Lock wedge, 2 pin
43 5001891 Lead assy., ignition coil This part replaces 5000348.
44 0586483 Rectifier regulator
45 3010036 Seal, regulator to crankcase x
46 3010522 Nut
47 3010523 Bushing, leads
48 3010521 Screw, regulator terminal
50 0336316 Washer, screw, bracket to hood
51 0328701 Lockwasher, double ended bolt
52 0586074 Switch, trim tilt
53 0514679 Borne, broche
54 0514686 Connecteur, 3 broches
55 0514682 Lock wedge, 3 pin
56 0334656 Nut
57 5000870 Coil bracket
58 0514867 Bracket, fuse assy.
59 0343598 Bumper, bracket to block
60 0329518 Grommet, esm mounting
61 0328649 Screw, bowl to body
62 0328724 Screw
65 3010088 Cover, rectifier, port
66 3010089 Cover, rectifier, port
67 0586754 Power distribution panel This part replaces 0586379.
68 0345004 Seal, cover
69 3853299 Gasket, connector This part replaces 0914634.
70 0586300 Cover assy
71 0514766 Fuse, 10 amp, spare
72 0345005 Fuse, puller
73 0344233 Screw
