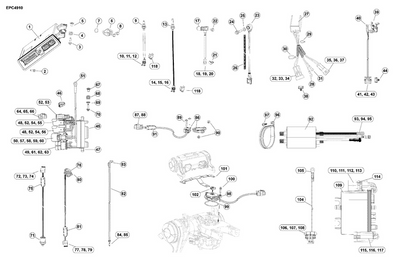

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 29
Product Description: Emm | Refer To The Current Parts And Accessories Bulletin With Subject "Emm Replacement" Or, Refer To "Emm & Ecu Order Info" In Current P&A Catalog
Category: EVINRUDE / 2005 / 150 / E150FPLSOC / ELECTRICAL SYSTEM
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0586526 | Flywheel assy | |
2 | 0336135 | Screw, flywheel | |
3 | 0328703 | Washer, screw hook | |
4 | 5004519 | Cover assy, flywheel | |
5 | 0341613 | Bague, pignon arbre vers carter moteur | |
6 | 0343525 | Screw, stator | |
7 | 0328703 | Washer, screw hook | |
8 | 0333040 | Isolator | |
9 | 0338558 | Entretoise, Ã collerette | |
10 | 0329518 | Grommet, esm mounting | |
11 | 0332226 | Screw, air temperature sensor | |
12 | 0333710 | Screw, anchor bracket | |
13 | 0514891 | Clamp, capacitor | |
14 | 0909533 | Screw, adapter | |
15 | 0328735 | Washer, screw, ball joint | |
16 | 0347194 | Hose, emm drain | |
17 | 0331025 | Screw | |
18 | 0332226 | Screw, air temperature sensor | |
19 | 0343468 | Cover, sensor | |
20 | 0352846 | Timing pointer | This part replaces 0344776. |
21 | 0315656 | Screw | |
22 | 0328724 | Screw | |
23 | 0350055 | Retainer, high tension leads | |
24 | 0330151 | Cable clamp, filter | |
25 | 0345109 | Hose, water to emm from vapor sep | |
26 | 0514686 | Connecteur, 3 broches | |
27 | 0514789 | Seal, connector | |
28 | 0514682 | Lock wedge, 3 pin | |
29 | 0586724 | Emm refer to the current parts and accessories bulletin with subject "emm replacement" or, refer to "emm ecu order info" in current p a catalog | |
30 | 0317893 | Tie strap | |
31 | 0320107 | Tie strap | |
32 | 0328703 | Washer, screw hook | |
33 | 0328724 | Screw | |
34 | 3010815 | Base plate | |
35 | 0346547 | Bolt, double ended | |
36 | 0328700 | Washer | |
37 | 0315656 | Screw | |
38 | 0586523 | Sensor assy, crank position | |
39 | 0514679 | Borne, broche | |
40 | 0514696 | Connector, 2 pin receptacle | |
41 | 0514697 | Lock wedge, 2 pin | |
42A | 5005783 | High tension lead assy | |
42B | 5005808 | Lead assy, ignition coil 3 4 | |
42C | 5005809 | Lead assy, ignition coil 1 2 | |
43 | 0350071 | Retainer, high tension leads clip to injector 1 and 2 screw sleeves | |
44 | 0350357 | Gasket, base plate included in powerhead gasket set. | |
45 | 0328701 | Lockwasher, double ended bolt | |
46 | 0336316 | Washer, screw, bracket to hood | |
47 | 0328701 | Lockwasher, double ended bolt | |
48 | 5005042 | Diaphragm hose assy, exhaust | |
49 | *HOSE, Exhaust pressure inlet | (Cut to length from P/N 772572.) | ||
50 | *HOSE, Exhaust pressure to EMM | (Cut to length from P/N 772571.) | ||
51 | 0346930 | Clamp, 9.5mm | |
52 | 0346931 | Clamp, 14mm | |
53 | 0514867 | Bracket, fuse assy. | |
54 | 0343598 | Bumper, bracket to block | |
55 | 0329518 | Grommet, esm mounting | |
56 | 0328649 | Screw, bowl to body | |
57 | 0328724 | Screw | |
58 | 0586754 | Power distribution panel | |
59 | 0345004 | Seal, cover | |
60 | 3853299 | Gasket, connector | |
61 | 0514766 | Fuse, 10 amp, spare | |
62 | 0586224 | Relay assy. | |
63 | 0586300 | Cover assy | |
64 | 0514766 | Fuse, 10 amp, spare | |
65 | 0345005 | Fuse, puller | |
66 | 0344233 | Screw | |
67 | 0346538 | Bracket, capacitor mounting | |
68 | 0333040 | Isolator | |
69 | 0338558 | Entretoise, Ã collerette | |
70 | 0328703 | Washer, screw hook | |
71 | 0328740 | Nut, throttle friction | |
72 | 0328695 | Clamp, engine cable | |
73 | 0329110 | Screw, clamp to cover | |
74 | 0586546 | Filter assy | |
75 | 0514696 | Connector, 2 pin receptacle | |
76 | 0514679 | Borne, broche | |
77 | 0514697 | Lock wedge, 2 pin | |
78 | 0510818 | Terminal, ring | |
79 | 0328701 | Lockwasher, double ended bolt | |
80 | 0586514 | Stator assy | |
81 | 0176296 | Connector, 8 socket | |
82 | 0514791 | Seal, 8 socket | |
83 | 3010885 | Connector, 12 pin | |
84 | 3010888 | Seal | |
85 | 0514680 | Socket | |
86 | 0514690 | Bouchon, mâle | |
87 | 0127288 | Lock wedge, 8 socket | |
88 | 3010959 | Lock wedge | |
89 | 5004971 | Coil, bracket | |
90 | 0586743 | Coil assy, single | |
91 | 0514679 | Borne, broche | |
92 | 0586738 | Coil assy, dual | |
93 | 0514679 | Borne, broche | |
94 | TUBING, Sleeve-ignition primary | (Cut to length from P/N 3011044. Included with Ref # 90 & 92.) | ||
96 | 0513663 | Connector | |
97 | 0513665 | Plug | |
98 | 0513666 | Terminal | |
99 | 0330272 | Fitting | |
100 | 0204363 | Terminal, ring | |
101 | 0316245 | Clamp | |
102 | 0328714 | Screw, clip | |
103 | 5004456 | Fusable link kit | |
104 | 0514158 | Ring terminal |
