EVINRUDE-JOHNSON 586888 Engine Harness Assy

Write a Review
$746.49
SKU:
586888
Schematic Object Key:
1

EVINRUDE-JOHNSON 586888 Engine Harness Assy

$746.49

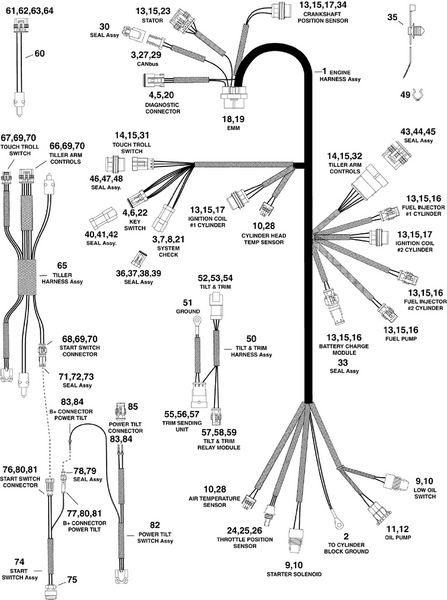

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 586888 Engine Harness Assy

Schematic Object Key : 1

Product Description: Engine Harness Assy

Category: EVINRUDE / 2011 / 30 / E30DRLIIG / ELECTRICAL HARNESS, G-suffix

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0586888 Engine harness assy
2 0204363 Terminal, ring
3 0514679 Borne, broche
4 0514680 Socket
5 0514681 Lock wedge, 3 socket
6 0514683 Cale verrouillage, fiche 6 broches
7 0514684 Lock wedge, 6 pin
8 0514690 Bouchon, mâle
9 3010123 Connector seal, 2 socket plug
10 3010125 Terminal, socket
11 0514582 Connector, 2 pin plug
12 0514583 Terminal
13 3011147 Contact, female receptacle included in accessory terminal service kit, p n 777283
14 3011148 Contact, tab included in accessory terminal service kit, p n 777283
15 3011149 Seal, wire
16 3011153 Connecteur, fiche 2 positions
17 3011155 Connecteur, fiche 3 positions
18 3011170 Connector seal, 34 position plug
19 3011171 Terminal
20 3011326 Connector seal, 3 socket plug
21 3011327 Connector, 6 pin receptacle
22 3011328 Connector seal, 6 socket plug
23 3011420 Connector
24 3011446 Connecteur, fiche 3 positions
25 3011447 Joint, fil
26 3011448 Borne
27 3011469 Connector, 2 pin receptacle
28 3011523 Connector seal, 2 pin plug
29 0514697 Lock wedge, 2 pin
30 0586078 Connector seal, 2 position plug
31 3011156 Connector, 3 position
32 3011267 Cap, 5 position
33 0586812 Conn seal rope start models
34 3011150 Plug, sealing
NS 0317893 Tie strap
NS 0320107 Tie strap
35 5007748 Plug tie strap
36 0586076 Joint, connecteur systemcheck tiller models only
37 0514683 Cale verrouillage, fiche 6 broches
38 0514687 Connecteur, fiche 6 broches
39 0514690 Bouchon, mâle
40 0586077 Seal assy, key switch tiller models only
41 0514688 Connector, 6 pin
42 0514690 Bouchon, mâle
43 0587055 Seal assy, tiller control harness remote models only
44 3011266 Connector seal, 5 position plug
45 3011150 Plug, sealing
46 0586813 Seal assembly, trim sender rmote models only
47 3011155 Connecteur, fiche 3 positions
48 3011150 Plug, sealing
49 3011450 Clip
50 0587095 Cable assembly, trim harness remote models with power tilt This part replaces 0587028.
51 0510818 Terminal, ring
52 3011329 Connector, 3 pin receptacle
53 0514682 Lock wedge, 3 pin
54 0514679 Borne, broche
55 3011156 Connector, 3 position
56 3011148 Contact, tab included in accessory terminal service kit, p n 777283
57 3011149 Seal, wire
58 3011153 Connecteur, fiche 2 positions
59 3011147 Contact, female receptacle included in accessory terminal service kit, p n 777283
60 0587071 Cable assy, neutral switch remote models only
61 3011266 Connector seal, 5 position plug
62 3011147 Contact, female receptacle included in accessory terminal service kit, p n 777283
63 3011225 Seal, wire
64 3011150 Plug, sealing
65 0586994 Cable assy, tiller hand e
66 3011266 Connector seal, 5 position plug
67 3011155 Connecteur, fiche 3 positions
68 3011153 Connecteur, fiche 2 positions
69 3011147 Contact, female receptacle included in accessory terminal service kit, p n 777283
70 3011149 Seal, wire
71 0586812 Conn seal rope start models
72 3011150 Plug, sealing
73 3011154 Connector, 2 position plug
NS 0317893 Tie strap
74 0586995 Cable assy, start switch tiller electric models
75 0327805 Écrou
76 3011154 Connector, 2 position plug
77 3011152 Connecteur, capuchon 1 position
78 3011151 Connecteur, fiche 1 position
79 3011150 Plug, sealing
80 3011148 Contact, tab included in accessory terminal service kit, p n 777283
81 3011149 Seal, wire
82 0586996 Interrupteur, correction d assiette tiller models with power tilt
83 3011147 Contact, female receptacle included in accessory terminal service kit, p n 777283
84 3011149 Seal, wire
85 3011153 Connecteur, fiche 2 positions
