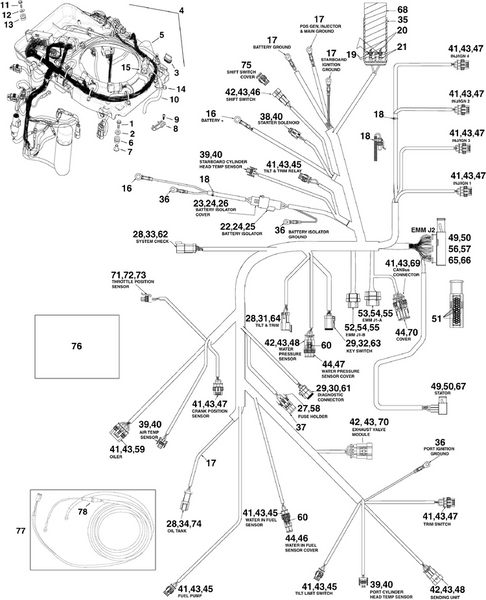

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 4
Product Description: Base & Harness Assembly
Category: EVINRUDE / 2009 / 115 / E115DPLSEF / ELECTRICAL HARNESS
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0333710 | Screw, anchor bracket | |
2 | 0328703 | Washer, screw hook | |
3 | 0514022 | Plug, fuse | |
4 | 0586891 | Base harness assembly | |
5 | 0351751 | Base, flywheel cover | |
6 | 0333040 | Isolator | |
7 | 0338558 | Entretoise, à collerette | |
8 | 0352846 | Timing pointer | |
9 | 0315656 | Screw | |
10 | 0345529 | Hose, vapor separator to throttle body | |
11 | 0334528 | Screw, baffle to cover | |
12 | 0323972 | Washer, emm mounting screw | |
13 | 0333040 | Isolator | |
14 | 0320107 | Tie strap | |
15 | 0586072 | Connector assy, diagnostic cover | |
16 | 0204053 | Borne, anneau 0,312" 7,9 mm diamètre | |
17 | 0204363 | Terminal, ring | |
18 | 0317893 | Tie strap | |
19 | 0327283 | Lockwasher | |
20 | 0332067 | Screw | |
21 | 0512550 | Terminal | |
22 | 0513663 | Connector | |
23 | 0513664 | Connector | |
24 | 0513665 | Plug | |
25 | 0513666 | Terminal | |
26 | 0513667 | Terminal | |
27 | 0514035 | Borne, prise | |
28 | 0514679 | Borne, broche | |
29 | 0514680 | Socket | |
30 | 0514681 | Lock wedge, 3 socket | |
31 | 0514682 | Lock wedge, 3 pin | |
32 | 0514683 | Cale verrouillage, fiche 6 broches | |
33 | 0514684 | Lock wedge, 6 pin | |
34 | 0514697 | Lock wedge, 2 pin | |
35 | 0514889 | Cover, capacitor | |
36 | 0600138 | Ring terminal | |
37 | 0967545 | Fuse, 10 amp | |
38 | 3010123 | Connector seal, 2 socket plug | |
39 | 3011523 | Connector seal, 2 pin plug | |
40 | 3010125 | Terminal, socket | |
41 | 3011147 | Contact, female receptacle included in terminal service kit, p n 777283 | |
42 | 3011148 | Contact, tab included in terminal service kit, p n 777283 | |
43 | 3011149 | Seal, wire | |
44 | 3011150 | Plug, sealing | |
45 | 3011153 | Connecteur, fiche 2 positions | |
46 | 3011154 | Connector, 2 position plug | |
47 | 3011155 | Connecteur, fiche 3 positions | |
48 | 3011156 | Connector, 3 position | |
49 | 3011166 | Terminal 14 gauge | |
50 | 3011167 | Seal, wire 14 gauge | |
51 | 3011168 | Plug, cavity | |
52 | 3011169 | Connector seal, 26 position plug | |
53 | 3011170 | Connector seal, 34 position plug | |
54 | 3011171 | Terminal | |
55 | 3011173 | Plug, cavity | |
56 | 3011174 | Terminal 18 gauge | |
57 | 3011175 | Seal, wire 18 gauge | |
58 | 3011258 | Connecteur | |
59 | 3011266 | Connector seal, 5 position plug | |
60 | 3011292 | Clip, mounting | |
61 | 3011326 | Connector seal, 3 socket plug | |
62 | 3011327 | Connector, 6 pin receptacle | |
63 | 3011328 | Connector seal, 6 socket plug | |
64 | 3011329 | Connector, 3 pin receptacle | |
65 | 3011350 | Seal, wire | |
66 | 3011372 | Connector, 29 position plug | |
67 | 3011402 | Connector, 6 pin receptacle | |
68 | 3011409 | Capacitor | |
69 | 3011420 | Connector | |
70 | 3011421 | Connecteur, emm | |
71 | 3011446 | Connecteur, fiche 3 positions | |
72 | 3011447 | Joint, fil | |
73 | 3011448 | Borne | |
74 | 3011469 | Connector, 2 pin receptacle | |
75 | 0586821 | Connector sea, 2 pin plug | |
76 | 0777283 | Amp connector seal kit | |
77 | 5006253 | Auxiliary battery charge kit accessory | |
78 | 0982019 | Fuse, 50 amp | |
NS | 0352041 | Grommet, water valve | |
NS | 0907833 | Attache câble, câbles vers commande de sens de marche |
