EVINRUDE-JOHNSON 587010 Base & Harness Assembly

Write a Review
$1,717.49
SKU:
587010
Schematic Object Key:
4

EVINRUDE-JOHNSON 587010 Base & Harness Assembly

$1,717.49

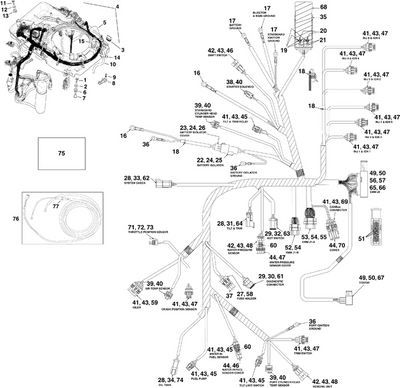

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 587010 Base & Harness Assembly

Schematic Object Key : 4

Product Description: Base & Harness Assembly

Category: EVINRUDE / 2009 / 150 / E150DPXSEA / ELECTRICAL HARNESS

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0333710 Screw, anchor bracket
2 0328703 Washer, screw hook
3 0514022 Plug, fuse
4 0587010 Base harness assembly
5 0351751 Base, flywheel cover
6 0333040 Isolator
7 0338558 Entretoise, à collerette
8 0352846 Timing pointer
9 0315656 Screw
10 0772571 Hose
11 0334528 Screw, baffle to cover
12 0323972 Washer, emm mounting screw
13 0333040 Isolator
14 0320107 Tie strap
15 0586072 Connector assy, diagnostic cover
- ( N.S.S.) Gear
16 0204053 Borne, anneau 0,312" 7,9 mm diamètre
17 0204363 Terminal, ring
18 0317893 Tie strap
19 0327283 Lockwasher
20 0332067 Screw
21 0512550 Terminal
22 0513663 Connector
23 0513664 Connector
24 0513665 Plug
25 0513666 Terminal
26 0513667 Terminal
27 0514035 Borne, prise
28 0514679 Borne, broche
29 0514680 Socket
30 0514681 Lock wedge, 3 socket
31 0514682 Lock wedge, 3 pin
32 0514683 Cale verrouillage, fiche 6 broches
33 0514684 Lock wedge, 6 pin
34 0514697 Lock wedge, 2 pin
35 0514889 Cover, capacitor
36 0600138 Ring terminal
37 0967545 Fuse, 10 amp
38 3010123 Connector seal, 2 socket plug
39 3011523 Connector seal, 2 pin plug
40 3010125 Terminal, socket
41 3011147 Contact, female receptacle included in terminal service kit, p n 777283
42 3011148 Contact, tab included in terminal service kit, p n 777283
43 3011149 Seal, wire
44 3011150 Plug, sealing
45 3011153 Connecteur, fiche 2 positions
46 3011154 Connector, 2 position plug
47 3011155 Connecteur, fiche 3 positions
48 3011156 Connector, 3 position
49 3011166 Terminal 14 gauge
50 3011167 Seal, wire 14 gauge
51 3011168 Plug, cavity
52 3011169 Connector seal, 26 position plug
53 3011170 Connector seal, 34 position plug
54 3011171 Terminal
55 3011173 Plug, cavity
56 3011174 Terminal 18 gauge
57 3011175 Seal, wire 18 gauge
58 3011258 Connecteur
59 3011266 Connector seal, 5 position plug
60 3011292 Clip, mounting
61 3011326 Connector seal, 3 socket plug
62 3011327 Connector, 6 pin receptacle
63 3011328 Connector seal, 6 socket plug
64 3011329 Connector, 3 pin receptacle
65 3011350 Seal, wire
66 3011372 Connector, 29 position plug
67 3011402 Connector, 6 pin receptacle
68 3011409 Capacitor
69 3011420 Connector
70 3011421 Connecteur, emm
71 3011446 Connecteur, fiche 3 positions
72 3011447 Joint, fil
73 3011448 Borne
74 3011469 Connector, 2 pin receptacle
75 0586821 Connector sea, 2 pin plug
76 0777283 Amp connector seal kit
77 5006253 Auxiliary battery charge kit accessory
78 0982019 Fuse, 50 amp
NS 0352041 Grommet, water valve
NS 0907833 Attache câble, câbles vers commande de sens de marche
