EVINRUDE-JOHNSON 587362 Harness Assembly | When Replacing An Engine Harness, Review The Installation To Ensure You Also Order Any Needed Hose Clamps Or Other Consumable Supplies.

Write a Review
$824.99
SKU:
587362
Schematic Object Key:
–

EVINRUDE-JOHNSON 587362 Harness Assembly | When Replacing An Engine Harness, Review The Installation To Ensure You Also Order Any Needed Hose Clamps Or Other Consumable Supplies.

$824.99

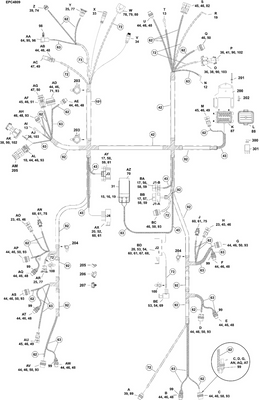

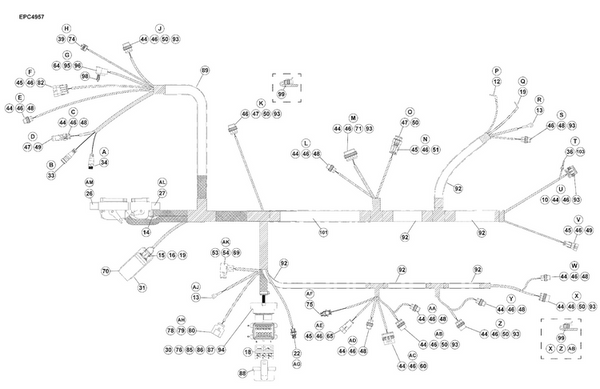

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 587362 Harness Assembly | When Replacing An Engine Harness, Review The Installation To Ensure You Also Order Any Needed Hose Clamps Or Other Consumable Supplies.

Schematic Object Key : –

Product Description: Harness Assembly | When Replacing An Engine Harness, Review The Installation To Ensure You Also Order Any Needed Hose Clamps Or Other Consumable Supplies.

Category: EVINRUDE / AA Models / 150 - (G2, Inline 3-Cyl, 1.865 L) / K150GXTAAB - (G2, Inline 3-Cyl., 1.865 L) / 02-0_ELECTRICAL HARNESS

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
– 0587362 Harness assembly when replacing an engine harness, review the installation to ensure you also order any needed hose clamps or other consumable supplies.
10 3011420 Connector
12 0204053 Borne, anneau 0,312" 7,9 mm diamètre
13 0204363 Terminal, ring
14 0320107 Tie strap
15 0327283 Lockwasher
16 0332067 Screw
18 DECAL, Fuse block | INCLUDED WITH FUSE BLOCK
19 0512550 Terminal
22 3010123 Connector seal, 2 socket plug
26 CONNECTOR, 81 Position | Not sold separately
27 CONNECTOR, 40 Position | Not sold separately
30 0514764 Minifuse, 5 amp
31 0514889 Cover, capacitor
33 CABLE ASSEMBLY, Pivate CAN | Not sold separately
34 CABLE ASSEMBLY, NMEA CAN | Not sold separately
36 3010023 Seal, wire
39 3011956 Terminal, socket
44 3011147 Contact, female receptacle
45 3011864 Contact, tab
46 3011149 Seal, wire
47 3011150 Plug, sealing
48 3011153 Connecteur, fiche 2 positions
49 3011154 Connector, 2 position plug
50 3011155 Connecteur, fiche 3 positions
51 3011156 Connector, 3 position
52 3012112 Terminal, socket
53 3011166 Terminal 14 gauge
54 3011167 Seal, wire 14 gauge
55 3012056 Plug, cavity
60 3011266 Connector seal, 5 position plug
62 SLEEVE, Braided - 1/4 in. (6 mm) | Not available, obtain locally
63 SLEEVE, Braided - 3/8 in. (10 mm) | Not available, obtain locally
64 3011701 Connecteur, 6 broches
65 3011993 Connector, 2 position cap
69 3011402 Connector, 6 pin receptacle
70 3010449 Capacitor
71 3011157 Connecteur, fiche 6 positions
72 TUBING, Convoluted - 1/4 in. (6.0 mm) | Not available, obtain locally
73 TUBING, Convoluted - 5/16 in. (8.5 mm) | Not available, obtain locally
74 3011523 Connector seal, 2 pin plug
75 3011663 Connector, 2 way
76 3011729 Fuse, atm 30
78 3012070 Connector, 6 position plug
79 3012069 Contact, receptacle
80 3012068 Seal, terminal
82 3011421 Connecteur, emm
85 3011790 Relay, 12v 35a spdt
86 3011805 Fuse, 3 amp
87 3012054 Block, 24 position fuse
88 3012055 Cover, 24 position fuse
89 0503955 Split convoluted tubing max dia. in. 3 4 bulk rolll, 50 ft. 15.24 m
92 0503956 Split convoluted tubing max dia. in. 1 2 bulk rolll, 50 ft. 15.24 m
93 3011957 Contact, receptacle
94 0514766 Fuse, 10 amp, spare
95 3011702 Cale verrouillage, 6 broches
96 3011703 Borne, broche
98 0357114 Clip, retainer
99 0317893 Tie strap
101 0503955 Split convoluted tubing max dia. in. 3 4 bulk rolll, 50 ft. 15.24 m
103 0514823 Terminal
