EVINRUDE-JOHNSON 901625 End Panel,Short

Write a Review
$7.00
SKU:
901625
Schematic Object Key:
21

EVINRUDE-JOHNSON 901625 End Panel,Short

$7.00

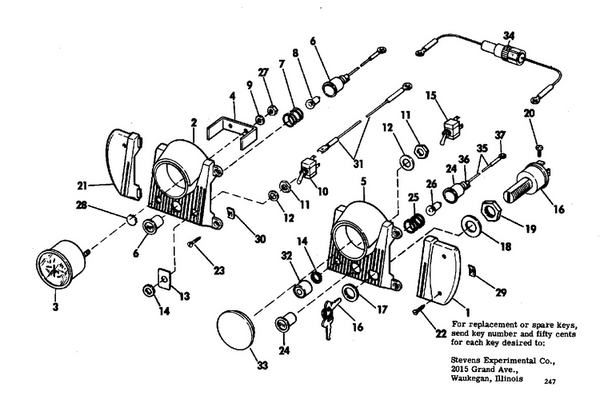

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 901625 End Panel,Short

Schematic Object Key : 21

Product Description: End Panel,Short

Category: STERN DRIVE / 1968 / 90 / DU-15S 1968 / DASH PANEL GROUP

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0901624 End panel,port
2 0310945 Panel,port
3 0381630 Ammeter assembly
4 0380485 .bracket, ammeter
5 0310946 Panel,starboard
6 0379853 Indicating light assy., temperature
7 0309890 .spring, indicating light
8 0311908 .bulb red
9 0120052 . . lockwasher, solenoid screw
10 0975257 Switch assemblly
11 0900185 Ecrou
12 0900696 Washer
13 0901680 Nameplate
14 0310782 Ecrou, interrupteur
15 0976443 Interrupteur, relevage assisté
16 0386545 Ignition switch key assy This part replaces 0378238.
17 0204366 . face nut
18 0309893 .washer, switch
19 0304644 . hex nut
20 0306559 Screw, ignition switch
21 0901625 End panel,short
22 0901626 Screw,end panel
23 0901146 Screw,dash panel
24 0380550 Indicating light,ignition
25 0309890 .spring, indicating light
26 0308165 .bulb red
27 0306556 Nut, leaf screw
28 0309024 Plug
29 0901627 Speed nut
30 0901628 Nut
31 0379682 Lead,choke to ignition
32 0310781 Cache, interrupteur
33 0310982 Plug omc
33 0205403 Plug eveinrude
33 0901619 Plug johnson
34 0378334 Fuse holder lead assembly
35 0380551 Lead,ignition "on" light to ground
36 0204034 Terminal, ring
37 0204036 10 ring termial,12v
