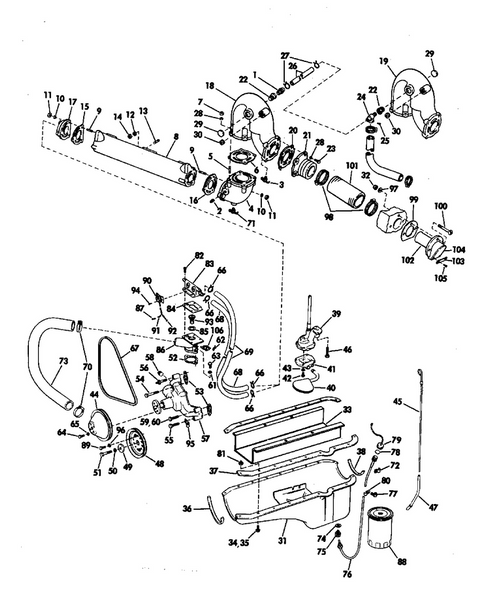

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 104
Product Description: Flap
Category: STERN DRIVE / 1972 / 120 / GUFM-10C 1972 / EXHAUST MANIFOLD & COOLING GROUP 245 JET DRIVE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0310904 | Nipple, elbow | |
2 | 0552909 | Pipe plug, elbow | |
3 | 0379957 | Petchock assy, water drain | |
4 | 0384017 | Elbow stud assy, port | |
4 | 0384018 | Elbow stud assy, stbd | |
5 | 0550071 | Stud | |
6 | 0315819 | Gasket, elbow to high rise | |
7 | 0306422 | Nut | |
8 | 0980171 | Exh manf stud assy | |
9 | 0310870 | Stud | |
10 | 0306325 | . . lockwasher, solenoid screw | |
11 | 0306422 | Nut | |
12 | 0120177 | L'washer, alternator to brkt | This part replaces 0317552. |
13 | 3852093 | Stud, lift bracket | This part replaces 0310968. |
14 | 0907887 | Nut, manifold stud | |
15 | 0311130 | Gasket | |
16 | 0318822 | Gasket, elbow to manifold | |
17 | 0312148 | Cap, exh. manifold port | |
18 | 0908174 | High rise exh manf stbd | |
19 | 0908173 | High rise exh manf port | |
20 | 0315819 | Gasket, elbow to high rise | |
21 | 0908101 | Extension, high rise | |
22 | 0315714 | Reducer | |
23 | 0302479 | Screw, starter mounting | This part replaces 0306416. |
24 | 0980174 | Tee nipple assy | |
25 | 0160280 | Drive screw | |
26 | 0315813 | Hose, tee to high rise | |
27 | 0307899 | Clamp | |
28 | 0306325 | . . lockwasher, solenoid screw | |
29 | 0315712 | Core plug | |
30 | 0315713 | Pipe plug, high rise | |
31 | 0980969 | Oil pan seal assy | This part replaces 0384528. |
32 | 3852420 | Locknut, throttle lever | This part replaces 0900402. |
33 | 3927136 | Baffle, oil pan | |
34 | 0180075 | Screw | |
35 | 3817006 | Bolt, camshaft sprocket | |
36 | 3887151 | Seal, front | |
37 | 3931599 | Gasket set | |
38 | 3887152 | Seal, rear | |
39 | 3821979 | Oil pump assembly | |
40 | 3764113 | Pick up screen | |
41 | 3821981 | Cover, pump | |
42 | 0133043 | Bolt, cover to pump | |
43 | 9421423 | Lockwasher, switch attach | |
44 | 0384104 | Pulley assembly | This part replaces 0383932. |
45 | 3865665 | Gauge, oil level | |
46 | 3892678 | Bolt, hex, oil pump to block | |
47 | 0312790 | Tube, oil level gauge | |
48 | 3755820 | Pulley, crankshaft | |
49 | 3739422 | Washer | |
50 | 0136857 | L'washer,flywheel | |
51 | 9428643 | Bolt | |
52 | 3701777 | Gasket, nipple to hsg | |
53 | 3754587 | Gasket, pump to block | |
54 | 0454908 | Bolt, washer pump, lower rh | |
55 | 0454467 | Bolt, manifold to head 1, 2 | |
56 | 3759755 | Stub, water pump, lower rh | |
57 | 3853850 | Water pump assy. | This part replaces 0383953. |
58 | 0444746 | Plug, 1 2 1 4 | |
59 | 0427559 | Bolt, water pump, upper left | |
60 | 0454467 | Bolt, manifold to head 1, 2 | |
61 | 0306405 | Washer, c c stud nut | |
62 | 0121689 | Terminal, adapter | |
63 | 0306539 | Bolt, distributor | |
64 | 0306861 | Screw | |
65 | 0306325 | . . lockwasher, solenoid screw | |
66 | 0307889 | Clamp, hose | |
67 | 0311046 | Belt | |
68 | 0310972 | Hose, inlet | |
69 | 0310973 | Hose, manifold lower to thermo upper | |
70 | 0311076 | Clamp, oil pump to bracket | |
71 | 0379957 | Petchock assy, water drain | |
72 | 0330151 | Cable clamp, filter | This part replaces 0309322. |
73 | 0312781 | Hose, housing to water pump | |
74 | 0909632 | O ring, sleeve | This part replaces 0907847. |
75 | 0907848 | Elbow, drain pan | |
76 | 0979818 | Oil line assy, c'case drain | |
77 | 0303311 | Scr,clamp,eng cable | |
78 | 3852426 | Seal, cap oil drain tube | This part replaces 0907845. |
79 | 0979819 | Cap bead assy | |
80 | 0310928 | Clamp, steering bracket | |
81 | 9422297 | Nut, 3 8 16 | |
82 | 0328724 | Screw | This part replaces 0316382. |
83 | 0908214 | Thermostat hsg, upper | |
84 | 0314809 | Gasket | |
85 | 0310913 | Gasket | |
86 | 0383323 | Thermostat housing, lower | |
87 | 0303806 | Tubing | |
88 | 0502901 | Oil filter | This part replaces 0381767. |
89 | 0306865 | Screw, crankshaft pulley | |
90 | 0383440 | Boltage reg cable assy | |
91 | 0308808 | Cosse, plate | |
92 | 0204036 | 10 ring termial,12v | |
93 | 0383307 | Termostat assembly | |
94 | 0307920 | Screw | |
95 | 0310928 | Clamp, steering bracket | |
96 | 0120177 | L'washer, alternator to brkt | |
97 | 0306407 | Locckwasher,cover latch | |
98 | 0310894 | Clamp | |
99 | 0908021 | Gasket, exh outlet | |
100 | 0901788 | Screw, exh outlet | |
101 | 0908490 | Hose, exh elbow, port | |
102 | 0980161 | Exh outlet flap assembly | |
1039 | 0008043 | Strap, flap retainer | |
104 | 0908044 | Flap | |
105 | 0908045 | Screw | |
106 | 0171960 | Sender, water temperature |
