EVINRUDE-JOHNSON 908087 Driveshaft

Write a Review
$289.99
SKU:
908087-OMC
Schematic Object Key:
35

EVINRUDE-JOHNSON 908087 Driveshaft

$289.99

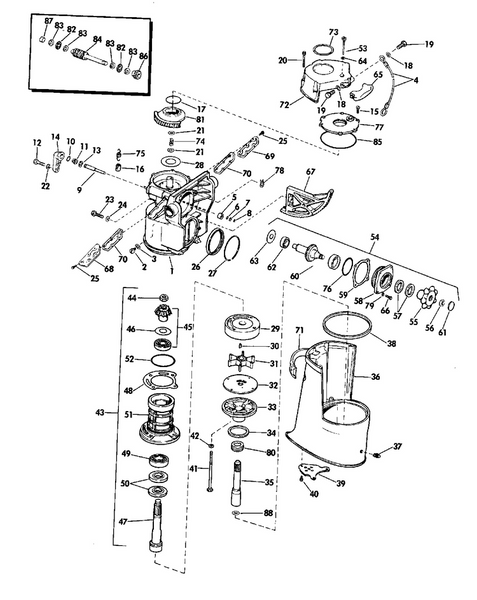

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 908087 Driveshaft

Schematic Object Key : 35

Product Description: Driveshaft

Category: STERN DRIVE / 1975 / 235 / 990240A 1975 / UPPER GEARCASE GROUP 225 & 245 HP STERN DRIVE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0980804 Gear housing bushing assy
2 0307551 Screw
3 0311598 Seal
4 0980025 Cable assembly, ground
5 0308883 Bushing
6 0909048 Real ring, shaft
7 0314390 Retainer
8 0911317 Retaining ring, shaft This part replaces 0313236.
9 0908890 Spacer shafat
10 0302540 "o" ring, carbon
11 0908871 Retainer, steering worm
12 0305282 Bolt, bowl suction piece
13 0911316 Retaining ring This part replaces 0313238.
14 0908870 Bracket steering worm ret
15 0308684 Screw, cover to housing
16 0909550 Guide, cable This part replaces 0308450.
17 0310327 "o" ring, gearcase head
18 0307708 Lock washer, mounting
19 0305513 Screw
20 0981185 Screw, cover to base This part replaces 0308686.
21 0309018 Washer
22 0307708 Lock washer, mounting
23 0308843 Screw, gearcase to housing
24 0120177 L'washer, alternator to brkt
25 0329217 Screw, retainer This part replaces 0308698.
26 0308768 Exhaust seal
27 0308590 Spring, seal
28 0313220 Shim
29 0983298 Impeller housing This part replaces 0313172.
30 0308928 .key, impeller 5 inch longer parts
31 0379475 Impeller assembly
32 0313176 Impeller housing plate
33 0910239 Swivel housing This part replaces 0313155.
34 0310648 Thrust washer
35 0908087 Driveshaft
36 0979732 Exhaust housing plug
37 0313221 Plug, exhaust housing
38 0308596 Seal, exhaust hosing
39 0308838 Plate, back pressure
40 0328724 Screw This part replaces 0308738.
41 0363011 Screw, stern bracket mounting, 1 2 x 5.75 in. 146 mm This part replaces 0313171.
42 0322624 Washer, lag screw This part replaces 0313169.
43 0981221 Bearing housing assy This part replaces 0382215.
44 0907866 Locknut
45 0980427 Pinion gear brg assy
46 0313192 Shi,thrust washer,.002"
46 0313193 Shim brg.to pinion,.003"
46 0313194 Pinion,.005"
46 0313195 Shim, bearing to pinion , .005"
46 0313196 Shim, bearing to pinion .006"
46 0313197 Shim, bearing to pinion 0.007 inch
46 0313198 Shim, bearing to pinion 0.008 inch
46 0313199 Shim, bearing to pinion 0.009 inch
46 0313200 Shim, bearing to pinion 0.010 inch
47 0382883 Driveshaft, upper
48 0313185 Shim, bearing housing, .005"
48 0313186 Shim, bearing housing, .006"
48 0313187 Shim, bearing housing, .007"
48 0313188 Shim, bearing housing, .008"
48 0313189 Gasket,screw plug
48 0313190 Shim, bearing housin, 0010
49 0382165 Roller bearing, lover
50 0981268 Seal, bearing retainer This part replaces 0313191.
51 0313159 Bearing housing
52 0553126 O ring, bearing housing
53 0980657 Indicator plug, cover
54 0980755 Ball gear shaft assembly
55 0908069 Ball dear, shaft
56 0908064 Nut
57 0908894 Oil retainer
58 0313184 Bearing retainer
59 0313202 Shim, retainer hsg. 0.002"
59 0313203 Shim, retainer hsg. 0.003"
59 0313204 Shim, retainer hsg. 0.004"
59 0313205 Shim, retainer hsg. 0.005"
59 0313206 Shim, retainer hsg. 0.010"
60 0980482 Shaft bearing
61 0908062 Plug, bail gear
62 0375761 Bearing, roller
63 0313162 Shim bearing to housing, .002"
63 0313163 Shim bearing to housing, .003"
63 0313164 Shim bearing to housing, .004"
63 0313165 Shim bearing to housing, .005"
63 0313166 Shim bearing to housing, .006"
63 0313167 Ahim,bearing to hsg.,.007"
63 0313168 Shim bearing to housing, .008"
64 0315189 Gasket, oil indicator
65 0379259 Bumper assembly
66 0308707 Screw
67 0313223 Tilt quadrant
68 0308591 Cover,starboard
69 0308699 Cover,port
70 0308592 Gasket, water cover
71 0908919 Transfer,225 hp
71 0907789 Emblem, 245 hp
72 0980758 Cover,exhaust housing
73 0908912 Transfer
74 0908834 Screw, 3 8 16 unc, 3 4 lg
75 0308896 Spring
76 0308621 O ring, retainer to housing
77 0313228 Cover, gear housing
78 0302647 Clamp
79 0302290 Washer
80 0907774 Seal
81 0313183 Worm wheel
82 0381791 Thrust bearing assy
83 0312815 Thrust washer, worm gear
84 0313234 Sorm gear,steering
85 0313175 O ring, cover
86 0313235 Gear
87 0308883 Bushing
88 0314491 O ring
