EVINRUDE-JOHNSON 908228 Water Tube, Intake

Write a Review
$61.49
SKU:
908228
Schematic Object Key:
80

EVINRUDE-JOHNSON 908228 Water Tube, Intake

$61.49

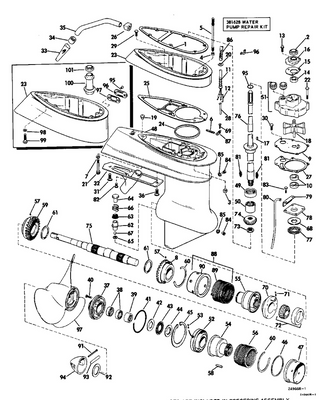

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 908228 Water Tube, Intake

Schematic Object Key : 80

Product Description: Water Tube, Intake

Category: STERN DRIVE / 1973 / 120 / 990215F 1973 / LOWER GEARCASE GROUP 100, 120, 140, 165, 225 & 245 HP

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0382383 Gearcase bearing assembly
2 0380439 Roller bearing, drive shaft
3 0307551 Screw
4 0311598 Seal
5 0313292 Shim, bearing to gearcase, .002"
5 0313293 Shim, bearing to gearcase, .003"
5 0313294 Shim, bearing to gearcase, .004"
5 0313295 Shim, bearing to gearcase, .005"
5 0313296 Shim, bearing to gearcase, .006"
5 0313297 Shim, bearing to gearcase, .007"
6 0379503 Bearing assy, prop shaft
7 0382366 Coil lead, front
8 0308808 Cosse, plate
9 0313455 Spring, clutch hub
10 0310428 Spacer
11 0315034 Sleeve, spring
12 0382270 Gear bushing, forward
13 0311944 Set screw
14 0312007 Retaining ring
15 0313310 Spacer, propeller shaft
16 0382337 Propeller shaft
17 0313311 Gear, reverse
18 0381025 Needle bearing set
19 0382336 Clutch hub retainer, reverse
20 0382367 Coil lead, rear
21 0308808 Cosse, plate
22 0382334 Clutch hub addy.,forward
23 0378262 Bearing, thrust, pinion
24 0307836 Thrust washer
25 0313192 Shi,thrust washer,.002"
25 0313193 Shim brg.to pinion,.003"
25 0313194 Pinion,.005"
25 0313195 Shim, bearing to pinion , .005"
25 0313196 Shim, bearing to pinion .006"
25 0313197 Shim, bearing to pinion 0.007 inch
25 0313198 Shim, bearing to pinion 0.008 inch
25 0313199 Shim, bearing to pinion 0.009 inch
25 0313200 Shim, bearing to pinion 0.010 inch
26 0310414 O ring, gearcase head
27 0381849 Gearcase head assy
28 0379504 Propshaft bearing assembly
29 0310599 .seal, propeller shaft
30 0310412 Screw, gearcase head
31 0307853 O ring
32 0980097 Driveshaft assy
33 0386719 Thrust bearing, rev gear This part replaces 0382257.
34 0313259 Thrust washer
35 0313192 Shi,thrust washer,.002"
35 0313193 Shim brg.to pinion,.003"
35 0313194 Pinion,.005"
35 0313195 Shim, bearing to pinion , .005"
35 0313196 Shim, bearing to pinion .006"
35 0313197 Shim, bearing to pinion 0.007 inch
35 0313198 Shim, bearing to pinion 0.008 inch
35 0313199 Shim, bearing to pinion 0.009 inch
36 0310488 Bishing,water tube
37 0313729 Clamp, bushing
38 0313309 Plate, bearing
39 0310413 Thrust washer
40 0553556 Screw, housing to cylinder
41 0980014 Swivel bearing assy
42 0310649 . seal
43 0313353 . seal
44 0310599 .seal, propeller shaft
45 0313607 Lube fitting
46 0313368 Gasket
47 0909533 Screw, adapter This part replaces 0309646.
48 0302290 Washer
49 0908594 Grommet, swivel brg retainer
50 0313258 Pinion gear
51 0907866 Locknut
52 0510267 Clamp, coil lead to gearcase
53 0510193 . screw, clamp cover
54 0303806 Tubing
55 0379628 Cable, shift
56 0379645 . . connector kit
57 0310645 Retainer, cable
58 0313929 Sleeve, coil lead, forward
59 0310644 Tube, shift cable
60 0380375 . magnet and spring
61 0310416 Retaining ring
62 0302647 Clamp
63 0908229 Bushing
64 0908230 Screen, water intake
65 0908471 Plate, rubber to gearcase
66 0908226 Rudder
67 0310477 Screw, plate
68 0552898 Scr,grc to hsg,short This part replaces 0310596.
69 0307708 Lock washer, mounting This part replaces 0302865.
70 0330266 Washer, trail lock lever This part replaces 0552993.
71 0310406 Screw, gearcase to ext. long shaft models use one 3852478 and one 307161
72 0310594 Thrust washer
73 0310595 Cotter pin
74 0310956 Drive pin
75 0379798 Propeller nut
76 0381296 Propeller, 14 1 4 x 10
76 0382676 P{ropeller, 14 x 11
76 0382017 Propeller, 14 x 12
76 0381185 Propeller, 14 x 14
76 0381186 Propeller, 14 x 16
76 0381187 Propeller, 14 x 18
76 0383287 Propeller, 14 x 20
76 0979896 Propeller, 13 1 4 x 20 2 bl brnz
76 0381464 Propeller, 13 x 18 2 blade cupped
76 0172490 Propeller, 14 x 13 sst
76 0172491 Peopeller, 14 x 15 sst
76 0172492 Propeller, 14 x 17 sst
76 0172493 Propeller 14 x 19 sst
77 0306470 Lock washer
78 0306503 Screw, adjustment rod
79 0303806 Tubing
80 0908228 Water tube, intake
81 0310597 Grommet, water intake tube
82 0310590 Screw, rudder pivot
