EVINRUDE-JOHNSON 908331 Bowl

Write a Review
$119.00
SKU:
908331
Schematic Object Key:
30

EVINRUDE-JOHNSON 908331 Bowl

$119.00

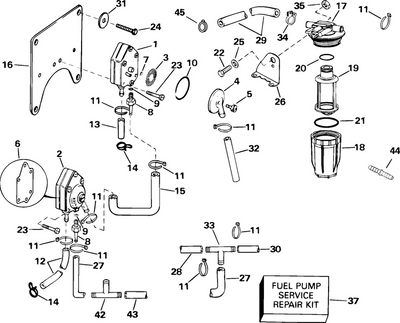

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 908331 Bowl

Schematic Object Key : 30

Product Description: Bowl

Category: STERN DRIVE / 1972 / 245 / XUFM-21A 1972 / PUMP UNIT 245 JET DRIVE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0908330 Suction piece
2 0908326 Wear plate
3 0908305 O ring, wear plate
4 0908312 Dowel pin, wear plate
5 0980255 Plug assy, aux water outlet
6 0908333 Grease fitting, thrust bearing
7 0908302 Inspection cap
8 0908303 O ring, inspection cap
9 0908311 Lock wrence, inspection cap
10 0980253 Lock wrench nylatch assy, inspection cap
11 0908343 Bolt, hold down
12 0908301 Swivel block, inspection cap
13 0908316 Spring pin, swivel block
14 0908322 Bearing cap
15 0305282 Bolt, bowl suction piece This part replaces 0301218.
16 0908319 Seal, bearing cap
17 0908314 Shim, impeller adjustment
18 0908341 Retaining ring, thrust bearing
19 0980254 Thrust bearing
20 0908313 Thrust washer, bearing
21 0908318 Seal, housing
22 0908321 Seal housing
23 0908304 O ring, seal housing
24 0908320 Mechanical seal
25 0908339 Retaining ring, mech seal
26 0908328 Shaft, impeller
27 0908329 Impeller
28 0908309 Key, impeller to shaft
29 0908307 Nut, impeller
30 0908331 Bowl
31 0908308 Bearing, bowl
32 0330137 Seal This part replaces 0313398.
33 0908325 Wear ring, bowl
34 0908335 Bolt, wear ring to bowl
35 0908334 Grease fitting, bowl
36 0305282 Bolt, bowl suction piece
37 0307708 Lock washer, mounting
38 0908299 Nozzle
39 0908324 Bearing, nyliner deflector
40 0980252 Pivot pin assy, deflector bottom
41 0303398 Screw, lower
42 0302290 Washer
43 0980251 Pivot assy, deflector trim
44 0908315 Screw, trim
45 0908338 Nut, trim screw
46 0302804 Cotter in
47 0908300 Trim cap
48 0908317 Gasket, trim cap
49 0908336 Bolt, trim cap
50 0908152 Screw, trim step
51 0908296 Reverse gate
52 0908327 Bearing, nyliner reverse gate
53 0902298 Pivot pin, reverse gate
54 0307151 Screw
55 0328740 Nut, throttle friction This part replaces 0301472.
56 0908295 Pin, cable, reverse gate
57 0908332 Washer, reverse gate cable sealing gland
58 0908323 Bearing, nyliner, cable pin
59 0908337 Retaining ring, cable pin
60 0908340 Locknut
61 0908294 Tiller arm
62 0908342 Bolt, tiller arm
63 0908306 "c" washer, cable retainer
64 0908310 Plug
65 0908297 Rudder
66 0908348 Grill housing, flat
66 0908349 Grill housing, contour
67 0908356 Screw, grill hsg
68 0301250 Rondelle
69 0306470 Lock washer
70 0912072 Nut, adjustment rod This part replaces 0302861.
71 0908354 Gasket, suction piece
72 0908347 Grill insert, standard
73 0908357 Screw, grill insert
74 0908345 Transom adapter 0 to 7
74 0908346 Transom adapter 7 to 17
75 0908351 O ring, transom adapter
76 0908355 Plug, drain
77 0908352 Gland, cable steering
78 0908350 Steering, tube
79 0908353 Grommet, rubber, steering tube
80 0908360 Washer, steering tube
81 0908358 Lockwasher, steering tube
82 0908359 Jam nut, steering tube
83 0980025 Cable assembly, ground
84 0908356 Screw, grill hsg
