EVINRUDE-JOHNSON 908602 Stud, Carburetor To Adaptor

Write a Review
$5.99
SKU:
908602
Schematic Object Key:
8

EVINRUDE-JOHNSON 908602 Stud, Carburetor To Adaptor

$5.99

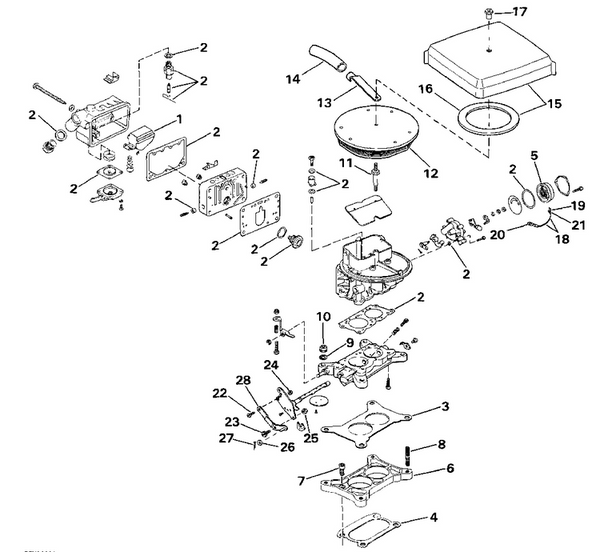

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 908602 Stud, Carburetor To Adaptor

Schematic Object Key : 8

Product Description: Stud, Carburetor To Adaptor

Category: STERN DRIVE / 1990 / 4.3 / 434APRPWS 1990 / CARBURETOR - 2V

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0986469 0986469 Carburetor assembly
1 3853575 Float This part replaces 0986787.
2 3854347 Repair kit This part replaces 0986796.
3 3853280 Gasket, carburetor to adapter This part replaces 0914583.
4 3853279 Gasket, adapter to manifold This part replaces 0914582.
5 3853992 Electric choke This part replaces 0986579.
6 3853278 Adapter, carb. to intake manifold This part replaces 0914581.
7 3852864 Screw, adapter to intake manifold This part replaces 0913848.
8 0908602 Stud, carburetor to adaptor
9 0328743 Rondelle
10 0316355 But, carburetor mounting
11 3852708 Stud, flame arrestor This part replaces 0913479.
12 3854026 Flame arrestor This part replaces 0986865.
13 3852695 Connector, crankcase vent hose This part replaces 0913404.
14 HOSE Crankcase vent, 9" (229mm)
15 0986002 Cover decal assy.
16 3850458 Pad, flame arrestor This part replaces 0914769.
17 3852749 Nut, cover This part replaces 0913631.
18 3853845 Lead assembly, choke ground This part replaces 0985128.
19 0313005 . terminal
20 0330100 Terminal
21 0914970 Cover, terminal
22 0307466 Scres, bowl to body
23 0319292 Screw, clamp
24 0307999 Nut
25 3852420 Locknut, throttle lever This part replaces 0900402.
26 0328703 Washer, screw hook This part replaces 0304051.
27 0305650 Cotter pin
28 0986517 Throttle lever pin assembly
