EVINRUDE-JOHNSON 909177 T-Seal, Piston

Write a Review
$25.49
SKU:
909177
Schematic Object Key:
10

EVINRUDE-JOHNSON 909177 T-Seal, Piston

$25.49

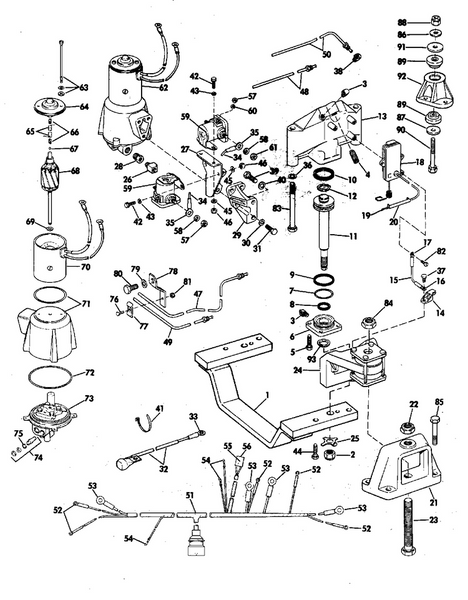

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 909177 T-Seal, Piston

Schematic Object Key : 10

Product Description: T-Seal, Piston

Category: STERN DRIVE / 1977 / 190 / 990231E 1977 / ENGINE MOUNT GROUP 175,190 & 235 HP WITH SELECTRIM

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0981156 Tie bar extension assy
2 0907858 Locknut, mount screw
3 0122510 . . . elbow
4 0908732 Set screw
5 0302479 Screw, starter mounting This part replaces 0306416.
6 0909252 Cover, trim cylinder, port stbd
7 0909253 Backup ring
8 0909173 "t" seal, rod
9 0908977 Quad ring, cover
10 0909177 T seal, piston
11 0981189 Piston, rod ring assy
12 0908973 Retaining ring
13 0980967 Trim cyl assy
14 0909037 Retainer, support brkt
15 0980984 Lead addy,trim indicator
16 0204036 10 ring termial,12v
17 0204363 Terminal, ring
18 0981286 Trim indicator
19 0308808 Cosse, plate
20 0303806 Tubing
21 0908982 Bracket,front mount
22 0909194 Locknut, mount bracket
23 0908998 Screw
24 0980934 Support bushing assy
25 0909098 Lockwasher, tie bar to rod
26 0908988 Male tee
27 0908987 Bracket, solenoids
28 3852465 Bushing This part replaces 0908986.
29 0908984 Bracket, pump to engine
30 0306325 . . lockwasher, solenoid screw
31 0302479 Screw, starter mounting
32 0980580 Fuse lead assembly
33 0204039 10 ring terminal
34 0981890 Leaad assy This part replaces 0383421.
35 0204053 Borne, anneau 0,312" 7,9 mm diamètre
36 0310855 Lockwasher
37 3852421 Screw, baffle This part replaces 0907768.
38 0908993 Elbow, trim cyl, stbd
39 0306414 Screw
40 0120177 L'washer, alternator to brkt
41 0318322 Attache câble
42 0308742 Screw, crankcase to cylinder
43 0328701 Lockwasher, double ended bolt This part replaces 0303480.
44 0308197 Screw, bracket to engine
45 0329241 Washer This part replaces 0306482.
46 3852420 Locknut, throttle lever This part replaces 0900402.
47 0980942 Line assy, pump to cyl. port
48 0980943 Line assy, pump to cyl., stbd
49 0980944 Line assy, pump to cover, port
50 0980945 Line assy, pump to cover stbd
51 0980936 Cable assembly
52 0204036 10 ring termial,12v
53 0204053 Borne, anneau 0,312" 7,9 mm diamètre
54 0308808 Cosse, plate
55 0510469 Tab
56 0510471 Connector
57 0306556 Nut, leaf screw
58 0120052 . . lockwasher, solenoid screw
59 0979774 Solenoid
60 0306325 . . lockwasher, solenoid screw
61 0306422 Nut
62 0980940 Pump motor assy
0172946 0172946 Motor reservoir assy
63 0172948 Thru bolt package
64 0979940 Head assy, comm end
65 0982310 . brush set .. o ring package This part replaces 0380706.
66 0382950 . . . spring set, brush
67 0122788 . . . ball
68 0172851 . . . armature
69 0172949 Thrust washer package
70 0172947 Frame field assy
71 0172855 . . . reservoir o ring assy.
72 0122791 "o" ring, 3.87 o.d.
73 0982957 Pump mtr assy This part replaces 0172950.
74 0172601 . . . manual relief valve
75 0309996 "o" ring, 7 16 o.d.
76 0332226 Screw, air temperature sensor This part replaces 0302750.
77 0908995 Clamp
78 0908994 Bracket
79 0303269 L'washer, upper
80 0311394 Bolt, bracket to head
81 0307999 Nut
82 0307175 ,,screw ,housing
83 0320773 Screw, trim cyl. to engine
84 0909194 Locknut, mount bracket
85 0908212 Lag bolt
86 0908197 Washer
87 3852428 Washer, lower This part replaces 0907857.
88 0908740 Nut
89 0980159 Rubber mount assy
90 0908734 Screw
91 3852433 Washer This part replaces 0908114.
92 0908725 Bracket, mount, stringer
93 0908975 Rod wiper, cover, port stbd
