EVINRUDE-JOHNSON 909316 O-Ring , Adaptor, Small

Write a Review
$3.55
SKU:
909316
Schematic Object Key:
45

EVINRUDE-JOHNSON 909316 O-Ring , Adaptor, Small

$3.55

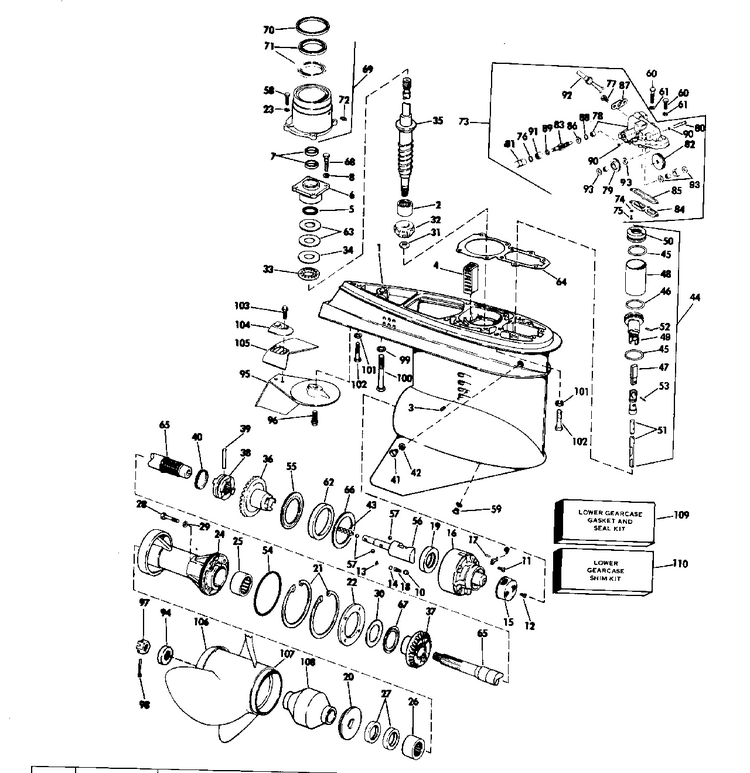

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 909316 O-Ring , Adaptor, Small

Schematic Object Key : 45

Product Description: O-Ring , Adaptor, Small

Category: STERN DRIVE / 1978 / 240 / 990250H 1978 / LOWER GEARCASE GROUP

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0390528 Gearcase brg assy This part replaces 0389109.
2 0387817 Bearing, pinion
3 0322994 . set screw
4 0321123 Screen, water intake
5 0354731 O ring This part replaces 0314728.
6 0982422 Bearing housing seal This part replaces 0981104.
7 0321467 . oil retainer
8 0301250 Rondelle
0981610 0981610 Oil pump housing cover
9 0909589 . retainer, relief
10 0909590 . set screw, pressure relief
11 0321127 Screw, water pump assy.
12 0308120 . screw
13 0160084 Ball
14 0909593 . guide, ball valve
15 0383784 . screen valve housing
16 0982034 . cover assembly
17 0202136 . . pin, cover to gearcase
18 0909591 . spring, pressure relief
19 0389039 Bearing, forward gear
20 0333592 Thrust bushing This part replaces 0321173.
21 0321171 Retaining ring
22 0321174 Plug, large
23 0302290 Washer
24 0387374 Bearing houisng seal assy
25 0382407 Bearing assy, forward gear
26 0387247 . needle bearing assy.
27 0320862 . seal
28 0316563 Screw
29 0317178 O ring
30 0314731 Rondelle de butée, engrenage de marche arrière
31 0314730 Nut, pinion to driveshaft
32 0323206 Pinion
33 0387656 Butée, arbre d'entraînement
34 0327656 Rondelle de butée, arbre d'entraînement This part replaces 0314729.
35 0982424 Driveshaft assy This part replaces 0981109.
36 0389040 Gear bushing assy
37 0323318 Gear, reverse for 800 series g c use 910994 for v6 235 o b and sea dr. use 398488
38 0323665 Shifter clutch dog for 800 series g c use 337774 for v6 o b and sea dr. use 398488
39 0313448 Pin, clutch dog
40 0324369 Spring, clutch dog pin This part replaces 0313454.
41 0307551 Screw
42 0311598 Seal
43 0318576 ,spring, detent
44 0981859 Shift assy, gearcase This part replaces 0981319.
45 0909316 O ring , adaptor, small
46 0320140 "o" ring, small
47 0909305 Rack, valve, shift assembly
48 0909307 Cylinder, shift assembly
49 0981859 Shift assy, gearcase This part replaces 0982088.
50 0909308 Cap, piston
51 0981859 Shift assy, gearcase This part replaces 0982131.
52 0320176 Pin, push rod
53 0909306 Pin, rack to valve
54 0305123 O ring This part replaces 0321119.
55 0389042 Thrust bearing assembly, foward gear
56 0981616 Shift rod bearing assy
57 0316506 Ball, detent
58 0329894 Screw This part replaces 0302510.
59 0318544 Screw, fill drain
60 0124341 Screw, cover This part replaces 0300630.
60 0319126 Screw, muffler, upper This part replaces 0324474.
61 0302290 Washer
62 0323516 Thrust washer, forward gear
63 0031472 Shim, 0.002 pinion
63 0323362 Cale, 0,003" 0,07 mm
63 0323361 Cale, 0,004" 0,10 mm
63 0314745 Cale, 0,005" 0,12 mm
64 0909118 Gasket, solenoid cover
65 0982416 Prop sft spr guide assy This part replaces 0389866.
66 0023517 Shim, 0.002 forward gear
66 0323518 Shim, .003
66 0323519 Shim, .004
67 0382408 Thrust bearing
68 0316534 . screw, hsg. to gearcase
69 0981088 Swivel bearing ret. bushing for 1980 and new 800 series use 982439. for all 400 series and 800 series units prior to 1980 use 982606.
70 0310649 . seal
71 0313353 . seal
72 0313607 Lube fitting
73 0982154 Shift assembly This part replaces 0981315.
74 0307247 . lockwasher, screw, cover
75 0323465 . screw, cover
76 0307450 "o" ring, large
77 0908158 Screw, anode
78 0982155 . shift hsg support assembly This part replaces 0982035.
79 0982033 . idler pulley brg assy
80 0910033 . shaft, idler pulley This part replaces 0909291.
81 0909294 . retainer, pinion shaft
82 0909299 . drive pulley
83 0909300 . pinion shaft
84 0909603 . cover, shift housing
85 0909604 . gasket, cover, shift hsg
86 0909606 . seal, pinion shaft, shift hsg
87 0910590 . retainer, ca, shift hsg This part replaces 0909620.
88 0909747 O ring
89 0909748 . washer, pinion to bearing
90 0909969 . quad ring, shaft
91 0981312 . bearing assy, pinion shaft
92 0098194 Cable assembly
93 0909303 . washer
94 0320570 Spacer, nut
95 0909779 Trim tab, gearcase
96 0313715 Screw, cap, hex hd, 7 16 14 x 1
97 5008966 Nut keeper, propeller This part replaces 0320569.
98 0309955 Cot pin,prop nut
99 0306314 L'washer,scr,long
100 0313697 Scr,grc to hsg.long
101 0307708 Lock washer, mounting
102 0552898 Scr,grc to hsg,short
104 0909548 Clamp, ext rudder
105 0909549 Extenion,rudder
106 0387158 Peopeller, 15 1 2 x 13
106 0387159 Prop,15 1 2x15
106 0387161 Prop,14 1 2x19
106 0387162 Prop,14 1 2x21
106 0387163 Prop,14 1 2x23
106 0387519 Propeller, 14 1 2 x 19 sst
106 0387520 Propeller, 14 1 4 x 21 sst
106 0389019 Prop, 14 1 2 x 23 sst
106 0387995 Prop, 14 1 2 x 24 sstr
106 0387996 Prop, 14 1 2 x 26 sstr
106 0387997 Prop.14 1 2x28sstr
108 0387157 Bushing assy, prop, std
110 0982191 Lower gearcase shim kit
