EVINRUDE-JOHNSON 909515 Gasket

Write a Review
$14.99
SKU:
909515
Schematic Object Key:
23

EVINRUDE-JOHNSON 909515 Gasket

$14.99

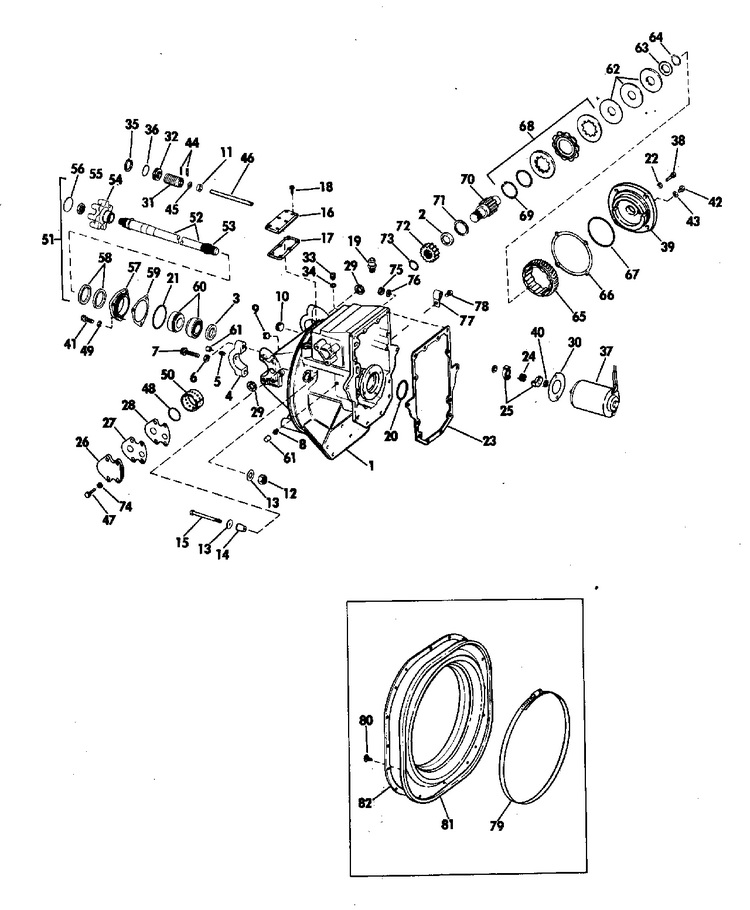

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 909515 Gasket

Schematic Object Key : 23

Replacement: This part (909515) replaces 0316493.

Product Description: Gasket

Category: STERN DRIVE / 1974 / 120 / 990215R 1974 / INTERMEDIATE HOUSING GROUP - 120,140,165,170,190,225,245 HP

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0980731 Intermediate housing This part replaces 0980676.
1 0980731 Intermediate housing This part replaces 0980590.
2 0321467 . oil retainer This part replaces 0303804.
3 0313992 Oil retainer, shaft
4 0383148 Pivot cap assembly
5 0313607 Lube fitting
6 0307708 Lock washer, mounting This part replaces 0302865.
7 0314614 Screw, pivot cap
8 0313607 Lube fitting
9 0314273 Plug
10 0908276 Cap plug This part replaces 0309961.
11 0308634 Bushing, tilt worm shaft
12 3852420 Locknut, throttle lever This part replaces 0900402.
13 0310055 Washer, control mounting
14 0908387 Plug
15 0318803 Screw
16 0313247 Cover, oil reservoir
17 0313246 Gasket, cover
18 0307195 Screw rectifier mounting
19 0316521 Nipple, housing
19 0908196 Nipple
20 0302337 O ring, bearing housing
21 0908383 O ring, retainer
22 0306396 Lock washer, control to boat
23 0909515 Gasket This part replaces 0316493.
24 0309267 Spring
25 0980274 Coupling key
26 0313264 Cover
27 0316499 Gasket
28 0316498 Plate, cover
29 0313244 Seal
30 0311508 Gasket
31 0908168 Worm
32 0980182 Retainer bushing
33 0313224 Plug,oil fill
34 0315189 Gasket, oil indicator
35 0308632 Retaining ring
36 0302540 "o" ring, carbon
37 0382138 Power piston assy
38 0308743 Screw, injector to manifold
39 0908564 Cover
40 0310612 Washer
41 0316534 . screw, hsg. to gearcase This part replaces 0908001.
42 0307551 Screw
43 0311598 Seal
44 0309525 Pin, tilt worm shaft
45 0309272 Washer
46 0980183 Shaft, tilt worm
47 0331025 Screw This part replaces 0308744.
48 0308626 O ring
49 0306470 Lock washer
50 0308602 Liner
51 0980039 Drivershaft ball gear assy
51 0980751 D'shaft ball gear assy This part replaces 0980089.
52 0980090 Driveshaft seal pkg
52 0980091 Driveshaft seal pkg
53 0908061 Seal
54 0908063 Ball gear
55 0908064 Nut
56 0908062 Plug, bail gear
57 0980478 Retainer seal assy
58 0981195 . seal This part replaces 0908065.
59 0908422 Shim, seal retainer, .002
59 0908423 Shim, seal retainer, .003
59 0908424 Shim, seal retainer, .004
59 0908425 Shim, seal retainer, .005
59 0908426 Shim, seal retainer, .006
59 0908427 Shim, seal retainer, .007
59 0908428 Shim, seal retainer, .008
59 0908429 Shim, seal retainer, .009
59 0908430 Shim, seal retainer, .010
60 3854250 Bearing, driveshaft, upper This part replaces 0979986.
61 0908247 Cap
62 0308809 Belleville spring
63 0309845 Spacer
64 0309844 Retaining ring
65 0308806 Worm wheel
66 0308799 Gasket
67 0908194 0 ring, tilt unit cover
68 0380561 Clutch disc shim pkg
69 0308804 . retaining ring
0980292 0980292 . tilt clutch shim package
70 0982593 Shaft, tilt clutch This part replaces 0980031.
71 0308800 Thrust washer
72 0308453 Gear
73 0911318 Retaining ring This part replaces 0308633.
74 0302290 Washer
75 0313457 Nut, adapter stud
76 0306453 Lockwasher, fuel pump
77 0310928 Clamp, steering bracket
78 0311415 Screw, cable clamp
0382068 0382068 Transom seal assembly, oval opening
79 0308735 Clamp, seal
80 0325539 Screw, sceen to gearcase This part replaces 0312270.
81 0313080 Seal
82 0313081 Plate, transom seal
