EVINRUDE-JOHNSON 909632 O-Ring, Sleeve

Write a Review
$17.99
SKU:
909632
Schematic Object Key:
43

EVINRUDE-JOHNSON 909632 O-Ring, Sleeve

$17.99

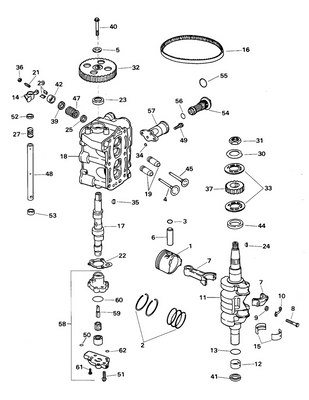

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 909632 O-Ring, Sleeve

Schematic Object Key : 43

Product Description: O-Ring, Sleeve

Category: EVINRUDE / 2000 / 10 / E10RV4SSS 4-Stroke, Rope Start, Tiller, 15 IN shaft, wht 2000 / CYLINDER HEAD & CRANKSHAFT

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0437776 Piston ring, standard
1 0437777 Piston ring, 0.030 in. o.s.
2 0436289 Ring set, standard
2 0436290 Ring set, 0.030 o.s.
3 0337213 Retaining ring
4 0337242 Valve, intake
5 0331249 Washer, handle
6 0337200 Wrist pin
7 0434837 Connecting rod assy.
8 0345838 Washer
9 0337220 Screw, rod cap
10 0340168 Tab, locking
11 0337235 Seal, crankshaft, lower
12 0337237 Seal, valve
13 0338324 Shaft, camshaft to oil pump
14 0438264 Arm assy., rocker
15 0437022 Bearing assy., main
16 0339320 Belt, drive
17 0435284 Camshaft assy.
18 0338325 Pin, roll
19 0338166 Cover, oil pump
20 0340531 Cup, spring to rocker arm
21 0337233 Screw, cylinder valve adjustment
22 0338167 Gasket, oil pump to cylinder head
23 0321831 Seal, upper
24 0437122 Bracket stud assy., belt cover
25 0337238 Seat, valve spring
26 0341259 Cover, drive belt
27 0339209 Spring, shaft, rocker arm to cyl. hd.
28 0343232 Housing, oil pump
29 0337229 Keeper, valve
30 0307480 Key
31 0337214 Nut, pulley to crankshaft
32 0337197 Pulley, cam
33 0434831 Pump assy., oil
34 0321921 "o"ring,gearcase head
35 0307480 Key
36 0337226 Nut, adjustment screw, rocker arm
37 0346353 Pulley assy., belt drive, crkshft.
38 0337392 Screw, stator to crankcase
39 0337230 Retainer, valve spring
40 0339019 Screw, front, lower cover, m6x40
41 0337184 Crankshaft
42 0338512 Sleeve
43 0909632 O ring, sleeve
44 0337236 Seal, crankshaft, upper
45 0337241 Valve, exhaust
46 0341237 Nut, hook to bracket
47 0337240 Spring, valve
48 0337216 Shaft, rocker arm
49 0337210 Spring, shaft, rocker arm
50 0329241 Washer
51 0341261 Screw, belt cover to lift bracket
52 0328739 Rondelle entre ancrage et support
53 0338338 Guide, belt, lower
54 0338337 Guide, belt, upper
55 0338317 Screw, lower belt guide
56 0437992 Cylinder head bare
57 0911295 Pin, intake to cylinder head
58 0337186 Guide, valve
