EVINRUDE-JOHNSON 909689 Set Screw

Write a Review
$1.25
SKU:
909689
Schematic Object Key:
18

EVINRUDE-JOHNSON 909689 Set Screw

$1.25

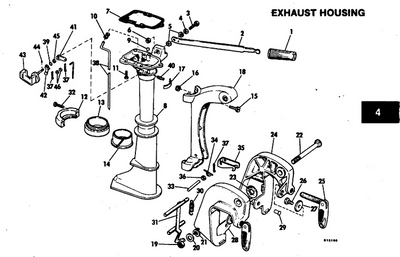

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 909689 Set Screw

Schematic Object Key : 18

Product Description: Set Screw

Category: STERN DRIVE / 1980 / 3 / 990335C 1980 / EXHAUST MANIFOLD AND OIL COOLER GROUP DIRECT DRIVE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 3852468 Gasket, manifold to engine This part replaces 0909314.
1 3852472 Gasket, manifold to engine This part replaces 0909613.
2 3852218 Bracket, oil cooler This part replaces 0383448.
3 0979803 Clamp
4 0983849 Oil cooler This part replaces 0981157.
4 0981158 Oil cooler asembly
5 0306519 Scr,coil clamp
6 0317444 Screw, adaptor
6 0315901 Screw, trans to adaptor
7 0303269 L'washer, upper
8 0306405 Washer, c c stud nut
9 0308335 Clamp, coil
10 0982824 Oil line, trans to cooler
11 0120255 Lockwasher
12 0909814 Hose, water pump to clr
12 0909812 Hose, water pump to cooler
13 0315744 Adaptor, except 1 1
14 0912627 Clamp This part replaces 0313851.
14 3853786 Clamp instrument cable This part replaces 0980577.
14 3853786 Clamp instrument cable This part replaces 0980577.
15 3853236 Sleeve, ignition coil This part replaces 0308716.
16 0909830 Cap, manifold
16 3852476 Cap, manifold This part replaces 0909829.
16 0909830 Cap, manifold
17 0908438 Hose
18 0909690 Set screw
18 0909689 Set screw
19 0909863 Elbow, exhaust
19 0909863 Elbow, exhaust This part replaces 0909218.
20 0908700 Nut
20 0316365 Locknut,stud adapter
21 0909786 Gasket
21 0909786 Gasket
22 0120177 L'washer, alternator to brkt
23 0909413 Exhaust manifold
23 0912442 Exhaust manifold, port This part replaces 0910144.
23 0912441 Exhaust manifold, starboard This part replaces 0909280.
24 0302858 Cotter pin, shoulder bolt
25 0306325 . . lockwasher, solenoid screw
26 0306435 Screw, brace to alternator
27 0301161 Rondelle, vis plaque de commande
27 0306405 Washer, c c stud nut
28 3852140 Stud, manifold to engine This part replaces 0315829.
28 3852467 Stud, manifold to engine This part replaces 0909313.
29 0908700 Nut
29 0908700 Nut
30 0306502 Screw, cable clip
31 0316316 Pivot
32 0909258 60 degree elbow
33 0312855 Screw
33 0306872 Bolt, flywheel
34 0301552 Lockwasher
35 0910580 Connector
36 3852604 Clamp, exhaust This part replaces 0981323.
37 0310055 Washer, control mounting
38 0306835 Screw
39 0301551 Washer, lock
40 0314898 L'nut, stud, alt frt
41 0909817 Hose, therm to oil cooler
42 0328742 Nut This part replaces 0306338.
43 0908649 Elbow, oil cooler to oil line
44 3853786 Clamp instrument cable This part replaces 0980577.
45 0309485 Écrou, vis, rotule
46 0315149 Screw, adaptor
47 0310896 Screw
48 0384053 Transmission assy l.h. 1 1
48 0384211 Tarnsmission assy, 1 1 r.h.
48 0384054 Transmission l.h. 1.52 1
48 0384212 Transmission r.h. 1.52 1
48 0384055 Transmission l.h. 1.91 1
48 0384213 Transmission r.h. 1.91 1
48 0980826 Transmission l.h. 2.57 1
48 0980827 Transmission r.h. 2.57 1
48 0980828 Transmission l.h. 2.91 1
48 0980829 Transmission r.h. 2.91 1
48 0981472 Transmission assy l.h. 1 1
48 0981473 Transmission assy r.h. 1 1
48 0981474 Transmission l.h. 1.52 1
48 0981475 Transmission r.h. 1.52 1
48 0981476 Transmission l.h. 1.91 1
48 0981477 Transmission l.h. 1.91 1
48 0981478 Transmission l.h. 2.57 1
48 0981479 Transmission r.h. 2.57 1
48 0981480 Transmission l.h. 2.91 1
48 0981481 Transmission r.h. 2.91 1
49 0384067 Neutral safety sw
50 0316238 Coupling 4", shaft 1 "
50 0316239 Coupling 4" shaft 1.12"
50 0316240 Coupling 4", shaft 1.25"
50 0316241 Coupling 4", shaft 1.38"
50 0316242 Coupling 4", shaft 1.50"
50 0908907 Coupling, 5", prop shaft 1"
50 0908908 Coupling, 5", prop shaft 1.12"
50 0908909 Coupling, 5", shaft 1.25
50 0908910 Coupling, 5", prop shaft 1.38"
50 0908911 Coupling, 5", prop shaft 1.50"
51 0316313 Bracket
52 0316314 Cable clip
53 0316315 Adapter
54 0909251 Plug, cooler
55 0909662 Spacer, stud to adapter housing
56 0910005 Stud
57 0309192 Rondelle This part replaces 0120196.
58 0312329 Nut
59 0909836 Plate, elbow, water shut off
60 0379757 Drain cock
61 0909843 Elbow, high rise
62 0120255 Lockwasher
