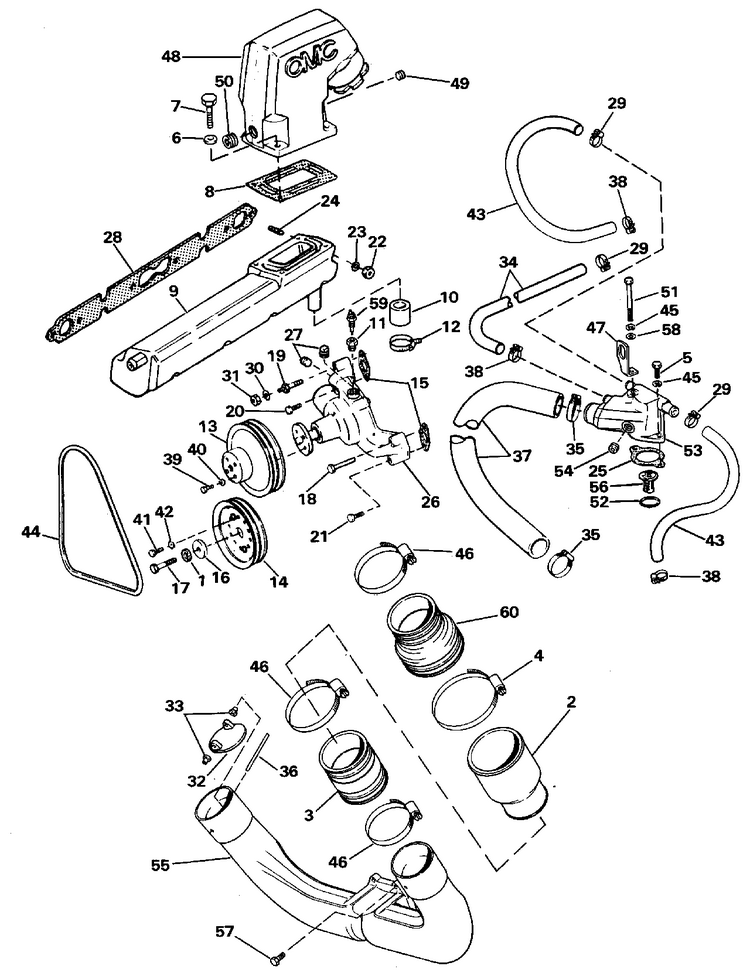

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 8
Product Description: Gasket
Category: STERN DRIVE / 1988 / 5 / 504AMLGDP 1988 / EXHAUST & COOLING
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 0303269 | L'washer, upper | |
| 2 | 0912375 | Exhaust pipe, upper | |
| 3 | 3852742 | Hose, exhaust pipe | This part replaces 0912376. |
| 4 | 0984387 | Clamp | |
| 5 | 0306414 | Screw | |
| 6 | 0306325 | . . lockwasher, solenoid screw | |
| 7 | 0306435 | Screw, brace to alternator | |
| 8 | 0909786 | Gasket | |
| 9 | 0912441 | Exhaust manifold, starboard | |
| 9 | 0912442 | Exhaust manifold, port | |
| 10 | 0909830 | Cap, manifold | |
| 11 | 0913401 | Bushing, temperature switch | |
| 12 | 3853786 | Clamp instrument cable | This part replaces 0980577. |
| 13 | 0384104 | Pulley assembly | |
| 13 | 0384104 | Pulley assembly | This part replaces 0383932. |
| 14 | 3852137 | Pulley, crankshaft | This part replaces 0315781. |
| 14 | 0312783 | Pulley, crankshaft | |
| 15 | 3852477 | Gasket, pump to block | This part replaces 0909835. |
| 16 | 3852110 | Washer, harmonic balancer | This part replaces 0312787. |
| 17 | 0314953 | Bolt | |
| 18 | 0302600 | Screw | |
| 19 | 3852507 | Stud, bracket to water pump | This part replaces 0910440. |
| 20 | 0307776 | Screw, lower main bearing | |
| 21 | 0551094 | Bolt, manifold to head | |
| 22 | 0908700 | Nut | |
| 23 | 0309336 | L'washer, alternator to bracket | |
| 24 | 3852467 | Stud, manifold to engine | This part replaces 0909313. |
| 25 | 0312797 | Gasket, therm. hsg. to adapter | |
| 26 | 3853850 | Water pump assy. | This part replaces 0985429. |
| 27 | 0314834 | Plug | |
| 28 | 3852468 | Gasket, manifold to engine | This part replaces 0909314. |
| 29 | 0979803 | Clamp | |
| 30 | 0301250 | Rondelle | |
| 31 | 0306422 | Nut | |
| 32 | 0984467 | Exhaust seal | |
| 33 | 0911872 | Bushing, pin | |
| 34 | 0911946 | Hose, cooler to thermostat | |
| 34 | 0911740 | Hose, gimbal housing to thermo | |
| 35 | 0311076 | Clamp, oil pump to bracket | |
| 36 | 0911873 | Pin exhaust flap | |
| 37 | 0312781 | Hose, housing to water pump | |
| 38 | 0912627 | Clamp | |
| 39 | 0306861 | Screw | |
| 40 | 0306325 | . . lockwasher, solenoid screw | |
| 41 | 0306865 | Screw, crankshaft pulley | |
| 42 | 0120177 | L'washer, alternator to brkt | |
| 43 | 3852746 | Hose, thermostat hsg. to manifold | This part replaces 0910167. |
| 43 | HOSE, Thermostat housing to manifold, starboard | ||
| 44 | 3852504 | Belt, alternator | This part replaces 0910371. |
| 44 | 3852464 | Belt, alternator | This part replaces 0908929. |
| 45 | 0120177 | L'washer, alternator to brkt | |
| 46 | 3852604 | Clamp, exhaust | This part replaces 0912667. |
| 47 | 3852649 | Bracket, center lift | This part replaces 0912921. |
| 48 | 0909863 | Elbow, exhaust | This part replaces 0982680. |
| 48 | 0913397 | Elbow, exhaust | |
| 49 | 0321164 | Plug | |
| 50 | 0315713 | Pipe plug, high rise | |
| 51 | 0311390 | Bushing | |
| 52 | 0307239 | "o" ring, extension tube 5 inch longer parts | |
| 53 | 3850360 | Housing, thermostat | This part replaces 0985880. |
| 54 | 3850999 | Plug | This part replaces 0913564. |
| 55 | 0912377 | Exhaust pipe | |
| 56 | 0383307 | Termostat assembly | |
| 57 | 0123018 | Screw | |
| 58 | 0320397 | Washer in tiller kit .390 i.d. x .750 o.d. x 0.120 in | |
| 59 | 0985618 | Switch, water temperature | |
| 60 | 0912374 | Hose, high rise to elbow |
