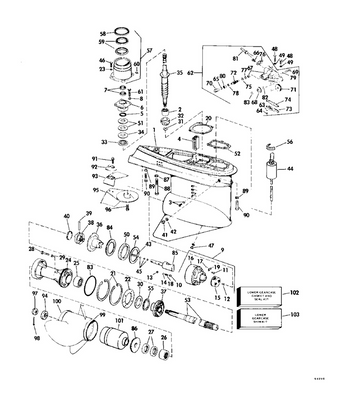

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 56
Product Description: Adapter, Shift Cylinder To Hsg
Category: STERN DRIVE / 1979 / 140 / 990245S1 1979 / LOWER GEARCASE 120 & 140 MODELS STERN DRIVE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0982111 | Gearcase bearing assy | |
2 | 0384195 | Bearing, pinion | |
3 | 0324852 | Retaining screw seal | |
3 | 0307853 | O ring | |
4 | 0323466 | . screen, water intake | |
5 | 0354731 | O ring | This part replaces 0314728. |
6 | 0982422 | Bearing housing seal | This part replaces 0981104. |
7 | 0321467 | . oil retainer | |
8 | 0301250 | Rondelle | |
9 | 0981609 | Oil pump housing cover | |
10 | 0909590 | . set screw, pressure relief | |
11 | 0321127 | Screw, water pump assy. | |
12 | 0308120 | . screw | |
13 | 0160084 | Ball | |
14 | 0909593 | . guide, ball valve | |
15 | 0383784 | . screen valve housing | |
16 | 0982034 | . cover assembly | |
17 | 0202136 | . . pin, cover to gearcase | |
18 | 0909591 | . spring, pressure relief | |
19 | 0909589 | . retainer, relief | |
20 | 0338484 | Gasket, imp. hsg. plate | This part replaces 0324701. |
21 | 0313445 | Retaining ring | |
22 | 0314732 | ,retainer plate, brg hsg | |
23 | 0302290 | Washer | |
24 | 0397087 | Bearing housing seal assy. | This part replaces 0384523. |
25 | 0382407 | Bearing assy, forward gear | |
26 | 0379504 | Propshaft bearing assembly | |
27 | 0330137 | Seal | This part replaces 0321463. |
28 | 0316563 | Screw | |
29 | 0317178 | O ring | |
30 | 0314731 | Rondelle de butée, engrenage de marche arrière | |
31 | 0314730 | Nut, pinion to driveshaft | |
32 | 0323205 | Pinion | |
33 | 0387656 | Butée, arbre d'entraînement | |
34 | 0327656 | Rondelle de butée, arbre d'entraînement | This part replaces 0314729. |
35 | 0982423 | Driveshaft assembly | This part replaces 0981258. |
36 | 0982243 | Gear bushing assy, forward | |
37 | 0323315 | Gear, reverse | |
38 | 0323664 | Commande de sens de marche, crabot d'embrayage | |
39 | 0313448 | Pin, clutch dog | |
40 | 0324369 | Spring, clutch dog pin | |
41 | 0307551 | Screw | |
42 | 0311598 | Seal | |
43 | 0318576 | ,spring, detent | |
44 | 0981857 | Shift assembly, gearcase | |
45 | 0316506 | Ball, detent | |
46 | 0329894 | Screw | This part replaces 0302510. |
47 | 0318544 | Screw, fill drain | |
48 | 0124341 | Screw, cover | This part replaces 0300630. |
49 | 0302290 | Washer | |
50 | 0317165 | Thrust washer, fwd | |
51 | 0314742 | Shim bearing housing | |
51 | 0323362 | Cale, 0,003" 0,07 mm | |
51 | 0323361 | Cale, 0,004" 0,10 mm | |
51 | 0314745 | Cale, 0,005" 0,12 mm | |
52 | 0352165 | Gasket, shift rod cover | This part replaces 0324670. |
53 | 0436888 | Propeller shaft assy. | This part replaces 0387818. |
54 | 0323363 | Shim, .002 inch | |
54 | 0323364 | Shim, .003 inch | |
54 | 0323365 | Shim, .004 inch | |
55 | 0382408 | Thrust bearing | |
56 | 0909945 | Adapter, shift cylinder to hsg | |
57 | 0981088 | Swivel bearing ret. bushing for 1980 and new 800 series use 982439. for all 400 series and 800 series units prior to 1980 use 982606. | |
58 | 0310649 | . seal | |
59 | 0313353 | . seal | |
60 | 0313607 | Lube fitting | |
61 | 0316534 | . screw, hsg. to gearcase | |
62 | 0982154 | Shift assembly | |
63 | 0307247 | . lockwasher, screw, cover | |
64 | 0323465 | . screw, cover | |
65 | 0307450 | "o" ring, large | |
66 | 0908158 | Screw, anode | |
67 | 0982155 | . shift hsg support assembly | |
68 | 0982033 | . idler pulley brg assy | |
69 | 0910033 | . shaft, idler pulley | |
70 | 0909294 | . retainer, pinion shaft | |
71 | 0909299 | . drive pulley | |
72 | 0909300 | . pinion shaft | |
73 | 0909603 | . cover, shift housing | |
74 | 0909604 | . gasket, cover, shift hsg | |
75 | 0909606 | . seal, pinion shaft, shift hsg | |
76 | 0910590 | . retainer, ca, shift hsg | This part replaces 0909620. |
77 | 0909747 | O ring | |
78 | 0909748 | . washer, pinion to bearing | |
79 | 0909969 | . quad ring, shaft | |
80 | 0981312 | . bearing assy, pinion shaft | |
81 | 0982951 | Cable assy | This part replaces 0981394. |
82 | 0909303 | . washer | |
83 | 0313446 | "o" riing, brg. hsg | |
84 | 0385043 | Thrust bearing assy. | |
85 | 0982333 | Shift rod bearing assy | |
86 | 0127084 | Thrust bushing | This part replaces 0318841. |
87 | 0306314 | L'washer,scr,long | |
88 | 0313697 | Scr,grc to hsg.long | |
89 | 0307708 | Lock washer, mounting | |
90 | 0552898 | Scr,grc to hsg,short | |
91 | 0341013 | Screw, cover | This part replaces 0908668. |
92 | 0909548 | Clamp, ext rudder | |
93 | 0909549 | Extenion,rudder | |
94 | 0315810 | Spacer, impeller nut | |
95 | 0909779 | Trim tab, gearcase | |
96 | 0313715 | Screw, cap, hex hd, 7 16 14 x 1 | |
97 | 0314503 | Nut, impeller | |
98 | 0314502 | Cotter pin | |
99 | 0382761 | Propeller ,14 x 11 | |
99 | 0765181 | Propeller | This part replaces 0382762. |
99 | 0765182 | Propeller w models | This part replaces 0382763. |
99 | 0765183 | Propeller, wdel models | This part replaces 0382764. |
99 | 0382765 | Propeller 13 x 19 | |
99 | 0389788 | Propeller, 12 3 4 x 21 | |
99 | 0384136 | Propeller 12 3 4 x 23 | |
99 | 0389514 | Propeller 12 3 4 x 23 sst | |
99 | 0389949 | Propeller, 12 3 4 x 15 sst | |
99 | 0389948 | Propeller, 12 3 4 x 17 sst | |
99 | 0389510 | Propeller, 13 19 sst | |
99 | 0389512 | Pro, 12 3 4 x 21 sst cupped | |
99 | 0389792 | Propeller 14 x 11 sst | |
101 | 0384977 | Bushing assy, prop, 3 blade | |
103 | 0982178 | Lower gearcase shim kit |
