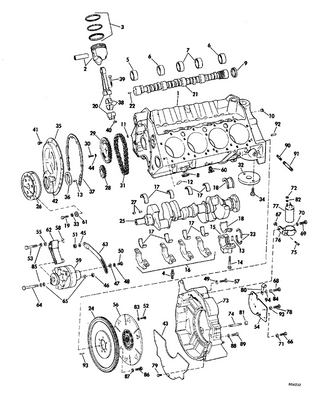

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 38
Product Description: Spacer, Alternator To Brace
Category: EVINRUDE / 2004 / 40 / E40DRLSRC / RECOIL STARTER (DR MODEL)
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1A | 0438104 | Recoil starter assy | |
| 1 | 0332910 | Housing starter | |
| 2 | 0331979 | Screw | |
| 3 | 0341063 | Bushing, pulley | |
| 4 | 0328741 | Nut, input stud | |
| 5 | 0772578 | Rope, starter qty 1 length 92 1 2 in. 2.4m | |
| 6 | 0325431 | Spring, starter | |
| 7 | 0394604 | Pulley, starter | |
| 8 | 0326120 | Spring, pawl plate to housing | |
| 9 | 0398228 | Pawl, starter | |
| 10 | 0121266 | Glide pin, starter housing | |
| 11 | 0327768 | Screw, rope guide pulley | |
| 12 | 0438103 | Pulley o ring | This part replaces 0342909. |
| 13 | 0339543 | O ring | |
| 14 | 0326131 | Shield, pulley spring | |
| 15 | 0326132 | Spring, pawl plate return | |
| 16 | 0326119 | Retaining ring | |
| 17 | 0340817 | Washer | |
| 18 | 0432111 | Pawl plate | |
| 19 | 0334350 | Sleeve, heat shrink | |
| 20 | 0309515 | Washer, spring | |
| 21 | 0311015 | Bushing, pawl | |
| 22 | 0326964 | Spring washer, bushing to pawl | |
| 23 | 0331929 | Bumper, pawl plate | |
| 24 | 0325429 | Shield, housing spring | |
| 25 | 0328700 | Washer | |
| 26 | 0321465 | Rondelle, montage du démarreur | |
| 27 | 0351517 | Screw, starter housing | |
| 28 | 0326129 | Sleeve | |
| 29 | 0326130 | Grommet | |
| 30 | 0307718 | Screw, ratchet | |
| 31 | 0301250 | Rondelle | |
| 32 | 0304325 | Anchor, rope | |
| 33 | 0329245 | Ratchet, flywheel | |
| 34 | 0334633 | Handle, starter | |
| 35 | 0329217 | Screw, retainer | |
| 36 | 0331249 | Washer, handle | |
| 37 | 0341171 | Support, pulley | |
| 38 | 0910095 | Spacer, alternator to brace | |
| 40 | 0351347 | Bracket, handle support | |
| 41 | 0204913 | Spring, handle grommet | |
| 42 | 0204911 | Grommet, handle support | |
| 43 | 0208424 | Plate, handle | |
| 44 | 0312241 | Screw, electrical bracket | |
| 45 | 0908158 | Screw, anode | |
| 46 | 0351299 | Bushing, flywheel cover | |
| 47 | 0310439 | Clamp, battery cable | |
| 48 | 0350973 | Grommet | |
| 49 | 0321243 | Bushing, cable |
