EVINRUDE-JOHNSON 910629 Reducer, Hose

Write a Review
$3.00
SKU:
910629
Schematic Object Key:
27

EVINRUDE-JOHNSON 910629 Reducer, Hose

$3.00

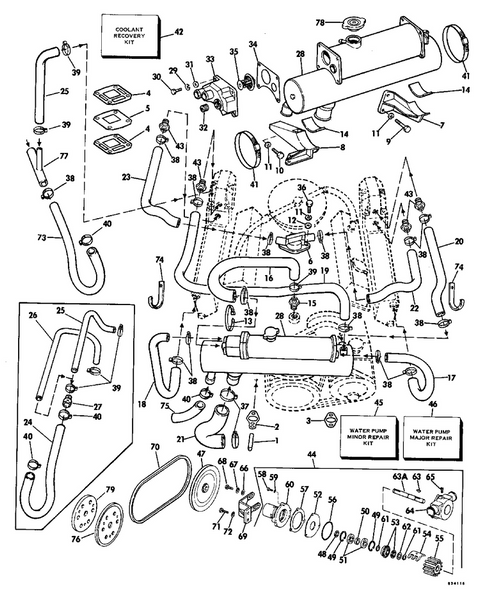

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 910629 Reducer, Hose

Schematic Object Key : 27

Product Description: Reducer, Hose

Category: STERN DRIVE / nan / 3.8 / 382STMRCTR 1983 / CLOSED COOLING GROUP

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0310956 Drive pin
2 3852477 Gasket, pump to block This part replaces 0909835.
3 0909852 Gasket, port
4 0910113 Gasket, elbow
5 0910176 Plate, manifold to elbow
6 0910416 Housing, block outlet
7 0910419 Bracket, heat exchange port
8 0910422 Bracket, heat exchange starboard
9 0301431 Screw
10 0306414 Screw
11 0120177 L'washer, alternator to brkt
12 0306405 Washer, c c stud nut
13 0907833 Attache câble, câbles vers commande de sens de marche
14 0909842 Pad, bracket, heat exchanger
15 0909864 Nipple, water pump by pass
16 0910400 Hose, thermostat housing to water pump
17 0910401 Hose, heat exchanger to manifold, port
18 0910402 Hose, thermostat housing to manifold, starboa
19 0910407 Hose, heat exchanger to high rise, starboard
20 0910408 Hose, heat exchanger to high rise, port
21 0910410 Hose, heat exchange to water pump
22 0910464 Hose, manifold to block housing, port
23 0910465 Hose, manifold to block housing, starboard
24 0910628 Hose, reducer to heat exchanger
25 0910627 Hose, oil cooler to reducer
26 0910466 Terminal, socket
27 0910629 Reducer, hose
28 0982889 Heat exchanger thermostat housing
29 0306325 . . lockwasher, solenoid screw
30 0306450 Screw
31 0306453 Lockwasher, fuel pump
32 0908276 Cap plug
33 0910398 Thermostat housing
34 0910399 Gasket, thermostat housing
35 0981966 Terhmostat
36 0306414 Screw
37 0311076 Clamp, oil pump to bracket
38 0912627 Clamp This part replaces 0313851.
39 0979803 Clamp
40 3853786 Clamp instrument cable This part replaces 0980577.
41 3852604 Clamp, exhaust This part replaces 0981323.
42 0982013 Coolant recovery kit
43 0910471 Nipple, high rise elbow
44 0982669 Water pump assembly
45 0982301 Impeller gasket kit
46 0982300 Impeller bearing seal kit
47 0910420 Pulley assy
48 0910127 Spacer, puller to brg 1
49 0548323 Retaining ring
50 0910126 Spacer, bearing
51 0982299 Bearing
52 3854295 End plate This part replaces 0910131.
53 0982298 Seal seat assy
54 0910130 Cam, impeller
55 0910132 Impeller
56 3854293 O ring, housing This part replaces 0909694.
57 3854296 Gasket, plate to body This part replaces 0910134.
58 3854297 Screw, body to hsg. This part replaces 0910135.
59 3854292 Lock washer, screw to hsg. This part replaces 0304145.
60 0910123 Body
61 0910121 Retaining ring
62 0910122 Thrust washer, seal
63 3854294 Key, impeller This part replaces 0910120.
63A 0910444 Shaft
64 0910118 Housing
65 0910119 Screw, cam
66 0308419 Washer
67 0306325 . . lockwasher, solenoid screw
68 0302479 Screw, starter mounting This part replaces 0306416.
69 0910424 Bracket, water pump
70 0910414 Belt
71 0306414 Screw
72 0120177 L'washer, alternator to brkt
73 0910839 Hose, y connector to block 1
74 0910075 Clamp, hose to manifold
75 0910412 Hose, pump to heat exchanger
76 3751232 Pulley
77 0910413 Connector, hose
78 CAP,15 p.s.i.,a.c.,r.c.15
79 0911288 Support plate
