EVINRUDE-JOHNSON 911686 O-RING C=4

Write a Review
$5.78
SKU:
911686-OMC
Schematic Object Key:
32

EVINRUDE-JOHNSON 911686 O-RING C=4

$5.78

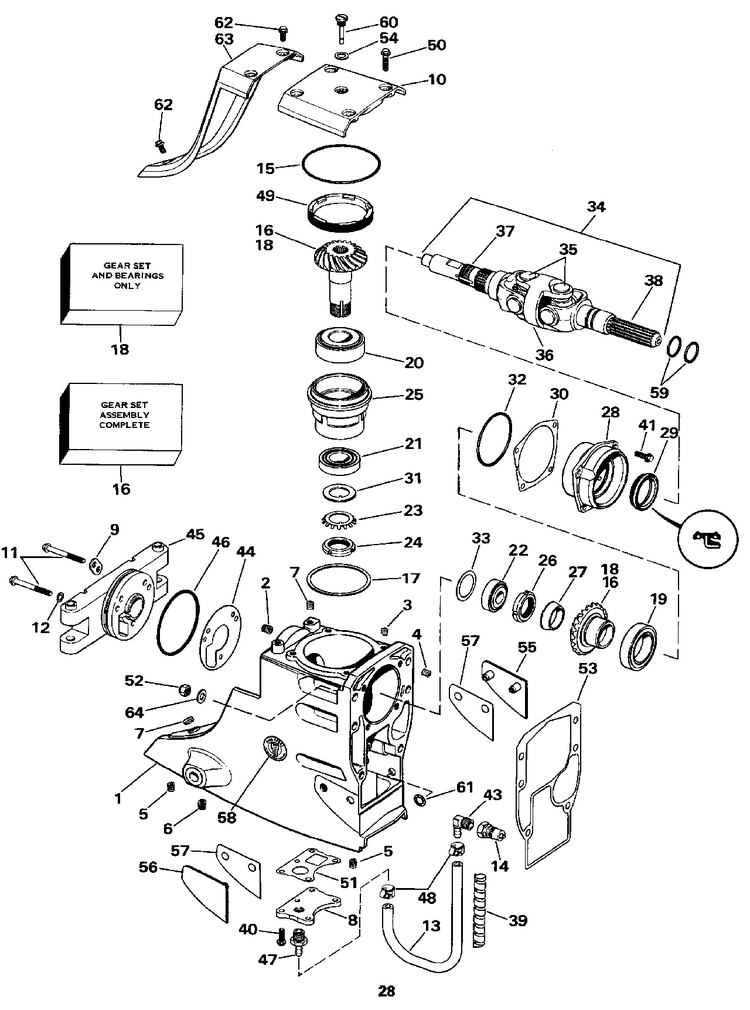

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 911686 O-Ring, Adaptor To Gear Housing

Schematic Object Key : 32

Product Description: O-Ring, Adaptor To Gear Housing

Category: STERN DRIVE / 1988 / 7.4 / 744APRGDP 1988 / UPPER GEAR HOUSING - 370 MODEL

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0984824 0984824 Gear hsg. assy., 21 19, 7.4 l
1 0984814 Gear housing inserts
2 0910901 Insert
3 0910901 Insert
4 0910901 Insert
5 0910935 Insert, 3 8 16
6 3852541 Insert, 7 16 14 This part replaces 0911779.
7 3852567 Insert This part replaces 0911858.
8 0912689 Plate, oil sump
9 0912694 Washer, anchor block
10 0911845 Cover, gear housing
11 0912238 Screw, anchor block
12 0309543 Washer
13 0912664 Hose, check valve
14 0912742 Nipple, quick disconnect
15 0313175 O ring, cover
16 0984013 Gear set assy, 21 19, 4.3 l
17 0911668 Shim, bearing carrier .010"
17 0911669 Shim, bearing carrier .011"
17 0911670 Shim, bearing carrier .012"
17 0911671 Shim, bearing carrier .013"
17 0911672 Shim, bearing carrier .014"
17 0911673 Shim, bearing carrier .015"
17 0911674 Shim, bearing carrier .016"
17 0911675 Shim, bearing carrier .017"
17 0911676 Shim, bearing carrier .018"
17 0911677 Shim, bearing carrier .019"
18 0984012 Gear set, 21 19
19 0983877 Bearing, bearing carrier
20 0983891 Bearing, pinion, upper
21 0983892 Bearing, pinion lower
22 0983878 Bearing, u joint shaft
23 0911752 Retainer, nut
24 0911753 Nut, pinion
25 0911750 Bearing carrier, pinion
26 0911937 Nut, gear to u joint
27 0912029 Centering cone
28 0911683 Bearing carrier, gear
29 0911685 Seal, bearing carrier
30 0911678 Shim, bearing carrier .003"
30 0911679 Shim, bearing carrier .004"
30 0911680 Shim, bearing carrier .005"
30 0911681 Shim, bearing carrier .010"
31 0911697 Washer, pinion
32 0911686 O ring, adaptor to gear housing
33 0911662 Shim gear position, 0.003"
33 0911663 Shim, gear position .005"
33 0911664 Shim, gear position .007"
33 0911665 Shim, gear position .010"
33 0911666 Shim, gear position .012"
33 0911667 Shim, gear position .015"
34 0984812 U joint assy.
35 0912214 U joint use 915716 for 1989a and prior. use 3850812 for 1990 and later.
36 0912213 Double center
37 0912211 Stub
38 0912700 Yoke shaft
39 0912696 Sleeve, oil hose
40 0341013 Screw, cover This part replaces 0908668.
41 0341013 Screw, cover This part replaces 0908668.
43 0174177 Elbow kit This part replaces 0909985.
44 0912693 Gasket, anchor block to gear housing
45 0984825 Anchor block
46 0911700 O ring, propshaft housing
47 0911916 Fitting, hose
48 0982115 Clamp
49 0911751 Retainer ring, pinion hsg
50 0123108 Screw, gear housing cover
51 0911733 Gasket, plate
52 3853329 Locknut, transom plate This part replaces 0912920.
53 0915840 Gasket, gear housing to pivot This part replaces 0911836.
54 0912830 Washer, indicator
55 3852561 Plate, thrust, port This part replaces 0911837.
56 3852562 Plate, thrust, starboard This part replaces 0911838.
57 3852563 Shim, thrust plate, 0.015 in. This part replaces 0911839.
58 0912608 Medallion, omc king cobra
59 3852565 O ring, u joint This part replaces 0911851.
60 0913343 Indicator plug, oil level
61 0910953 Retainer ring, thrust plate
62 3852568 Screw, cover This part replaces 0911859.
63 0983967 Cover, anchor block
64 0911833 Washer, stud
