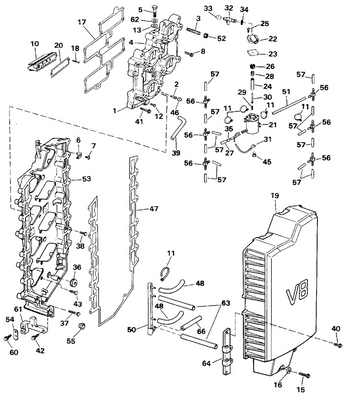

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 23
Product Description: Gasket, Cover
Category: STERN DRIVE / 1992 / 4.3 / 432APRAMH 1992 / LOWER GEARCASE - COUNTER (L.H.) ROTATION
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5007022 | Gearcase bearing assembly | This part replaces 0985355. |
2 | 0387817 | Bearing, pinion | |
3 | 0324852 | Retaining screw seal | |
4 | 0332584 | Washer, seal ring | |
5 | 0321123 | Screen, water intake | |
6 | 0911713 | Stud, housing to gearcase | |
7 | 0911714 | Stud, water passage hsg | |
8 | 0387656 | Butée, arbre d'entraînement | |
9 | 0317624 | Screw, driveshaft hsg | |
10 | 0160084 | Ball | |
11 | 0916189 | Detent, shift | This part replaces 0334142. |
12 | 0911962 | Spring | |
13 | 0334163 | Cradle, shifter | |
14 | 0334160 | Lever, shift | |
15 | 0334143 | Shaft, shift | |
16 | 0319627 | Pin, shift lever | |
17 | 0305123 | O ring | |
18 | 0431943 | Propeller shaft assy | |
19 | 0382408 | Thrust bearing | |
20 | 0389042 | Thrust bearing assembly, foward gear | |
21 | 0354731 | O ring | This part replaces 0314728. |
22 | 0438251 | Clutch shaft assy | This part replaces 0432282. |
23 | 0911878 | Gasket, cover | |
24 | 0431694 | Bearing housing seal assy | |
25 | 0431926 | Needle bearing assembly, front | |
26 | 0387247 | . needle bearing assy. | |
27 | 0320862 | . seal | |
28 | 0910901 | Insert | |
29 | 0333957 | Languette, de retenue | |
30 | 0313447 | Thrust washer | |
31 | 0987671 | Gear set includes forward pinion | |
32 | 0314730 | Nut, pinion to driveshaft | |
33 | 0986666 | Gear, reverse | |
34 | 0327656 | Rondelle de butée, arbre d'entraînement | |
35 | 0911693 | Driveshaft assy | |
36 | 0986658 | Shift rod assembly | |
37 | 0914723 | Rod end, shift | |
38 | 0308825 | Screw roller | |
39 | 0914743 | Nut, shift rod to end | |
40 | 0914736 | Shift rod | |
41 | 0915272 | Shifter, clutch dog | This part replaces 0914716. |
42 | 0313448 | Pin, clutch dog | |
43 | 0324369 | Spring, clutch dog pin | |
44 | 0327669 | Thrust washer, forward gear | |
45 | 0986838 | Cover seal assy | |
46 | 0318372 | "o" ring, shift rod | |
47 | 0912157 | Wiper, shift rod | |
48 | 0304027 | Screw | |
49 | 0984462 | Bearing housing | |
50 | 0323362 | Cale, 0,003" 0,07 mm | |
50 | 0323361 | Cale, 0,004" 0,10 mm | |
50 | 0314745 | Cale, 0,005" 0,12 mm | |
51 | 0431693 | Bearing hsg assy, rev gear | |
52 | 0331880 | Pin, housing to gearcase | |
53 | 0318544 | Screw, fill drain | |
54 | 0333572 | O ring | |
55 | 0431708 | Anode, bearing housing | |
56 | 0908158 | Screw, anode | |
57 | 0350271 | Screw | This part replaces 0333955. |
58 | 0915720 | Water passage hsg. | |
59 | 0318717 | O ring, bearing hsg | |
60 | 0911710 | Plug, shaft support | |
61 | 0329241 | Washer | This part replaces 0305981. |
62 | 0121731 | Nut, hook, front | |
63 | 0915719 | Gasket, water passage hsg. | |
65 | 0313715 | Screw, cap, hex hd, 7 16 14 x 1 | |
66 | 0911709 | Driveshaft | |
67 | 5008966 | Nut keeper, propeller | This part replaces 0398042. |
68 | 0306394 | Cotter pin | |
69 | 0330265 | Washer | |
70 | 0331998 | Screw, gearcase to housing | This part replaces 0914535. |
71 | 0328096 | Screw | |
72 | 3853262 | Screw, lower to upper housing | This part replaces 0914536. |
73 | 0436745 | Anode | This part replaces 0393023. |
74 | 0913157 | Trim tab, gearcase | |
75 | 0911705 | Guide, water tube | |
76 | 0911715 | Guide, water tube | |
77 | 0912127 | Screw, hook | |
78 | 0333592 | Thrust bushing | |
79 | 0911706 | Tube water supply | |
80 | 0914534 | Screw, gearcase to housing, rear | |
81 | 0328701 | Lockwasher, double ended bolt | |
82 | 3853818 | Anode, gearcase | This part replaces 0984513. |
83 | 0320570 | Spacer, nut | |
84 | 0174927 | Propeller, 15 x 15 sst | |
84 | 0431930 | Propeller, 15 x 17 sss ii | |
84 | 0390821 | Propeller, 14 1 2 x 19 sst ii | |
84 | 0390822 | Propeller 14 1 4 x 21 | |
84 | 0390823 | Propeller 14 1 4 x 23 | |
84 | 0398502 | Propeller, 14 1 2 x 20 racker | |
84 | 0398503 | Lh raker 14 1 2 x 22 | |
84 | 0398504 | Lh raker 14 1 2 x 24 | |
84 | 0398505 | Lh raker 14 1 2 x 26 | |
84 | 0398506 | Lh raker 14 1 2 x 28 | |
84 | 0174890 | Propeller 15 x 17 omc viper | |
84 | 0174811 | Propeller, 14 1 2 x 19 omc viper | |
84 | 0174812 | Propeller, 14 1 2 x 21 omc viper | |
84 | 0174813 | Lh viper 14 1 4 x 23 | |
85 | 0387157 | Bushing assy, prop, std | |
87 | 0313926 | Propeller hub sleeve | |
88 | 0984458 | Gearcase seal kit |
