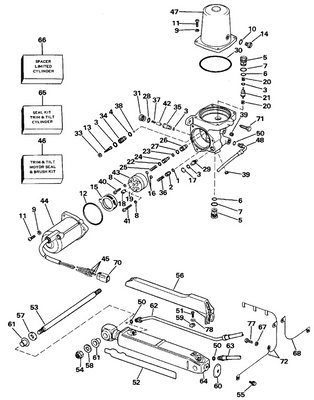

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 51
Product Description: Ball, Relief Valve
Category: JOHNSON / 2000 / 40 / J40RSSM Rope Start, Tiller, 15 IN. shaft 2000 / POWER TRIM & TILT
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 0438135 | Hycraulic lift assy. | |
| 2 | 0160084 | Ball | |
| 3 | 0302290 | Washer | |
| 4 | 0320780 | Screw, motor reservoir | |
| 5 | 0911522 | O ring, oil pump to manifold contents of o ring seal kit . | |
| 6 | 0321942 | Screw, oil pump to manifold, short | |
| 6 | 0335646 | Screw, oil pump to manifold, long | |
| 7 | 0333496 | Spring, housing to poppet | |
| 8 | 0436606 | Valve hsg. ay., manuel release | |
| 9 | 0335143 | O ring, piston contents of o ring seal kit . | |
| 10 | 0339849 | O ring, release valve contents of o ring seal kit . | |
| 11 | 0335132 | O ring, manifold to housing contents of o ring seal kit . | |
| 12 | 0335133 | O ring, valve seat contents of o ring seal kit . | |
| 13 | 0335134 | Poppet, check valve | |
| 14 | 0335136 | Spool, shuttle | |
| 15 | 0335137 | Seat, poppet valve | |
| 16 | 0335138 | Plug, retainer | |
| 17 | 0335140 | Plug, retainer | |
| 18 | 0335141 | Drive coupling | |
| 19 | 0335142 | Washer, piston to tilt rod | |
| 20 | 0435566 | Cap assy. | |
| 21 | 0335148 | Seal, tilt rod contents of o ring seal kit . | |
| 22 | 0335149 | O ring, end cap contents of o ring seal kit . | |
| 23 | 0335154 | Wiper contents of o ring seal kit . | |
| 24 | 0335155 | Ring, backup contents of o ring seal kit . | |
| 25 | 0335156 | Guide, ball | |
| 26 | 0360252 | Washer | This part replaces 0306311. |
| 27 | 0335130 | Plug, manifold | |
| 28 | 0335159 | Nut, tilt rod | |
| 29 | 0335171 | Valve seat | |
| 30 | 0335657 | Fill plug | |
| 31 | 0335658 | O ring, fill plug contents of o ring seal kit . | |
| 32 | 0914069 | Retaining ring, manual release | |
| 33 | 0335660 | O ring, valve seat contents of o ring seal kit . | |
| 34 | 0335661 | Seal, manifold contents of o ring seal kit . | |
| 35 | 0335129 | O ring, manifold to housing contents of o ring seal kit . | |
| 36 | 0335663 | Filter, oil pump | |
| 37 | 0389836 | Oil pump assy. | |
| 38 | 0433225 | Rod eye assy. | |
| 39 | 0437801 | Motor cable assy. | |
| 40 | 0513667 | Terminal | |
| 41 | 0335152 | Washer, piston | |
| 42 | 0438135 | Hycraulic lift assy. | This part replaces 0435899. |
| 43 | 0340174 | Filter, manual relief | |
| 44 | 0433814 | Piston assy. | |
| 45 | 0335143 | O ring, piston contents of o ring seal kit . | |
| 46 | 0335145 | Ring, quad contents of o ring seal kit . | |
| 47 | 0335144 | Ring, backup contents of o ring seal kit . | |
| 48 | 0335153 | Spring, relief valve | |
| 49 | 0582499 | Lead, bonding | |
| 50 | 0335131 | Filter, reservoir | |
| 51 | 0912298 | Ball, relief valve | |
| 52 | 0332434 | Bushing, cylinder to bracket | |
| 53 | 0512259 | Sleeve, motor cable sending unit | |
| 54 | 0513665 | Plug | |
| 55 | 0332436 | Bushing, cylinder to bracket | |
| 56 | 0435567 | O ring seal kit | |
| 57 | 0513664 | Connector | |
| 58 | 0911729 | O ring |
