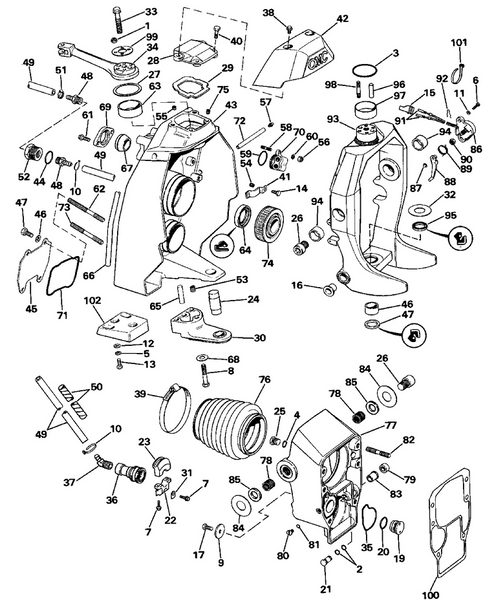

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 37
Product Description: Elbow, Quick Disconnect
Category: STERN DRIVE / 1988 / 7.4 / 744APRGDP 1988 / TRANSOM MOUNT
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0121674 | Locknut | |
2 | 0202893 | "o" ring, drive shaft | |
3 | 0302337 | O ring, bearing housing | |
4 | 0304174 | "o" ring, tube adapter | |
5 | 0306470 | Lock washer | |
6 | 0308825 | Screw roller | |
7 | 0329266 | Screw, rectifier mounting | |
8 | 0317968 | Screw, cylinder to clevis | |
9 | 0912669 | Washer, plug | |
10 | 0320107 | Tie strap | |
11 | 0328739 | Rondelle entre ancrage et support | |
12 | 0328743 | Rondelle | |
13 | 0329055 | Screw, anode | |
14 | 0330437 | Screw | |
15 | 0512745 | Connector | |
16 | 0910855 | Bushing, pivot pin | |
17 | 3852568 | Screw, cover | This part replaces 0911859. |
19 | 0912668 | Plug, water inlet | |
20 | 0911718 | O ring, nipple | |
21 | 0912670 | Plug, shift | |
22 | 0912747 | Retainer, bottom | |
23 | 0912746 | Retainer, top | |
24 | 3852728 | Shaft, steering pivot | This part replaces 0911793. |
25 | 0912671 | Plug, shift cable | |
26 | 3852854 | Pivot screw | This part replaces 0911806. |
27 | 3852554 | Thrust washer, steering arm | This part replaces 0911807. |
28 | 3854577 | Cap gasket | This part replaces 0985438. |
29 | 3852677 | Gasket, cap | This part replaces 0913212. |
30 | 3858192 | Bracket, steering support | This part replaces 0912391. |
31 | 0913603 | Retainer | |
32 | 3852557 | Thrust washer | This part replaces 0911818. |
33 | 3852591 | Screw, steering arm | This part replaces 0912306. |
34 | 0911821 | Steering arm | |
35 | 3852560 | Seal, water passage | This part replaces 0911823. |
36 | 0984868 | Coupler, quick disconnect | |
37 | 0912618 | Elbow, quick disconnect | |
38 | 3852682 | Screw, cover | This part replaces 0913255. |
39 | 3852604 | Clamp, exhaust | This part replaces 0912667. |
40 | 3852473 | Screw, cap to gimbal | This part replaces 0909636. |
41 | 0911900 | Clamp, oil line | |
42 | 0985403 | Cover insert | |
43 | 0984807 | Gimbal housing assy. | |
44 | 0911871 | O ring, oil line | |
45 | 0125091 | Cover, plate | |
46 | 0329055 | Screw, anode | |
47 | 0306325 | . . lockwasher, solenoid screw | |
48 | 0911916 | Fitting, hose | |
49 | 0912664 | Hose, check valve | |
50 | 0912696 | Sleeve, oil hose | |
51 | 0982115 | Clamp | |
52 | 0912659 | Plug, oil line | |
53 | 0910935 | Insert, 3 8 16 | |
54 | 0910901 | Insert | |
55 | 3852567 | Insert | This part replaces 0911858. |
56 | 0121731 | Nut, hook, front | |
57 | 0313607 | Lube fitting | |
58 | 0316040 | Stud, exhaust housing | |
59 | 0322501 | O ring, manifold block | |
60 | 0329241 | Washer | |
61 | 0341013 | Screw, cover | This part replaces 0908668. |
62 | 3852546 | Stud, transom, long | This part replaces 0911792. |
63 | 3852547 | Bearing, steering | This part replaces 0911794. |
64 | 3852548 | Seal, driveshaft | This part replaces 0911795. |
65 | 3852549 | Pin, steering support | This part replaces 0911796. |
66 | 3852550 | Seal, transom | This part replaces 0911797. |
67 | 0912663 | Seal, water tube | |
68 | 0319453 | Rondelle | |
69 | 0911817 | Retainer, water tube | |
70 | 3852559 | Manifold block | This part replaces 0911822. |
71 | 0911831 | Seal, exhaust cover | |
72 | 3852564 | Tube, grease | This part replaces 0911843. |
73 | 3852576 | Stud, transom, short | This part replaces 0911920. |
74 | 3853807 | Bearing assy., u joint | This part replaces 0983937. |
75 | 3852526 | Insert | This part replaces 0911510. |
76 | 3854127 | Bellows, u joint | This part replaces 0983973. |
77 | 0985631 | Pivot housing assy | |
78 | 3852698 | Insert, pivot screw | This part replaces 0913412. |
79 | 0984186 | Plug, bellcrank | |
80 | 3852536 | Plug, water drain | This part replaces 0911719. |
81 | 0911311 | O ring, plug | |
82 | 3852551 | Stud, pivot to gear housing | This part replaces 0911798. |
83 | 0911732 | Bushing, bellcrank | |
84 | 3852558 | Washer, gimbal to pivot hsg. | This part replaces 0911820. |
85 | 3852697 | Thrust washer, pivot screw | This part replaces 0913411. |
86 | 0984748 | Trim sender assy | |
87 | 0511527 | Retainer | |
88 | 0911800 | Arm | |
89 | 3852577 | Spring | This part replaces 0911928. |
90 | 0320689 | Ãcrou | |
91 | 0581656 | Terminal, socket | |
92 | 3852555 | Retainer, plug | This part replaces 0911809. |
93 | 0984923 | Gimbal assy | |
94 | 3852544 | Bearing, steering tilt | This part replaces 0911787. |
95 | 0911788 | Seal | |
96 | 3852545 | Dowel, steering arm | This part replaces 0911789. |
97 | 3852571 | Sleeve, gimbal | This part replaces 0911901. |
98 | 3852588 | Stud | This part replaces 0912240. |
99 | 3852585 | Plate, steering arm | This part replaces 0912155. |
101 | 0317893 | Tie strap | |
102 | 0984547 | Anode insert assy |
