EVINRUDE-JOHNSON 913871 Shim, Gear Position, 0.003"

Write a Review
$6.23
SKU:
913871
Schematic Object Key:
13

EVINRUDE-JOHNSON 913871 Shim, Gear Position, 0.003"

$6.23

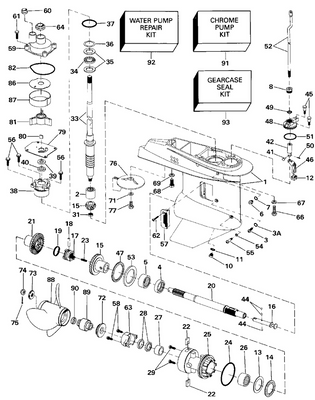

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 913871 Shim, Gear Position, 0.003"

Schematic Object Key : 13

Replacement: This part (913871) replaces 3852886.

Product Description: Shim, Gear Position, 0.003"

Category: STERN DRIVE / 1996 / 7.4 / 74FGPNCS 1996 / LOWER GEARCASE - SINGLE PROP

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
3855692 3855692 Gearcase assy., 1.43, 19 26
1 3855363 Gearcase bearing
2 0910935 Insert, 3 8 16 This part replaces 3852515.
3 3852567 Insert
4 3853934 Bearing, pinion
5 3854601 Retainer, seal
6 3855274 Gear set, 1.43, 19 26
7 3853941 Oil slinger pins
8 3850942 Bearing, gear to gearcase
9 3851003 Nut, pinion to driveshaft
10 3854249 Bearing, driveshaft, lower
11 3853474 Seal, prop shaft housing
12 3852865 O ring, propeller shaft hsg.
13 3850695 Shim, gear position, 0.002 in.
13 0913871 Shim, gear position, 0.003" This part replaces 3852886.
13 0913870 Shim, gear position, 0.004" This part replaces 3852885.
13 0913872 Shim, gear position, 0.005" This part replaces 3852887.
13 0913873 Shim, gear position, 0.010" This part replaces 3852888.
14 3852881 Ring, shim, 0.096 in.
14 3852882 Ring, shim, 0.098 in.
14 3852868 Ring, shim, 0.100 in.
14 3852869 Ring, shim, 0.102 in.
14 3852870 Ring, shim, 0.104 in.
14 3852871 Ring, shim, 0.106 in.
14 3852872 Ring, shim, 0.108 in.
14 3852873 Ring, shim, 0.110 in.
14 3852874 Ring, shim, 0.112 in.
14 3852875 Ring, shim, 0.114 in.
14 3852876 Ring, shim, 0.116 in.
14 3852877 Ring, shim, 0.118 in.
14 3852878 Ring, shim, 0.120 in.
14 3852879 Ring, shim, 0.122 in.
14 3852880 Ring, shim, 0.124 in.
15 3851342 Driveshaft, lower
16 3854249 Bearing, driveshaft, lower
17 3854250 Bearing, driveshaft, upper
18 3852889 Shim, pinion position, 0.003 in.
18 3852890 Shim, pinion position, 0.004 in.
18 3852891 Shim, pinion position, 0.005 in.
18 3852892 Shim, pinion position, 0.010 in.
19 3853492 Housing, propeller shaft
20 3853272 Set screw, prop shaft housing
21 3852271 Propeller shaft
22 3854595 Seal, water supply tube
23 3852866 O ring, support housing
24 3852959 O ring, oil passage
25 3854539 Screw, gearcase plug
26 0333572 O ring This part replaces 3855081.
27 3852970 Anode, prop shaft housing
28 0914041 Retainer, anode This part replaces 3852971.
29 0914042 Screw, anode This part replaces 3852972.
30 0914673 Screw, anode retainer This part replaces 3853309.
31 3852973 Washer, anode
32 3855636 Retainer, bearing
33 3853371 Retainer, prop shaft housing
34 3852478 Screw, prop shaft retainer
36 3850662 Plug, trim tab hole
39 3854806 Screw, lower to upper housing
40 3854807 Screw, lower to upper housing
41 3854805 Screw, lower to upper housing
42 3852268 Driveshaft, intermediate
43 0306394 Cotter pin This part replaces 3852056.
44 3852350 Spacer, propeller nut
45 0126870 Bague, de butée This part replaces 3852020.
46 5008966 Nut keeper, propeller This part replaces 3850984.
47 3854795 Tube, water supply
48 3852315 Seal, water supply tube
49 3850315 Propeller, 15 x 15
49 3850316 Propeller, 15 x 17
49 3850317 Propeller, 14 1 2 x 19
49 3850318 Propeller, 14 1 4 x 21
49 3850319 Propeller, 14 1 4 x 23
49 3850320 Propeller, 15 x 17
49 3850321 Propeller, 14 1 2 x 19
49 3850322 Propeller, 14 1 4 x 21
49 3850323 Propeller, 14 1 4 x 23
49 3855152 Pick up screen
49 3855154 Propeller, 14 1 2 x 22
49 3855156 Propeller, 14 1 2 x 24
49 3855158 Propeller, 14 1 2 x 26
49 3850298 Propeller, 15 1 2 x 13
49 3850299 Propeller, 15 1 2 x 15
49 3850300 Propeller, 15 x 17
49 3850301 Propeller, 14 1 2 x 19
49 3850302 Propeller, 14 1 4 x 21
49 3850303 Propeller, 14 1 4 x 23
49 3850304 Propeller, 15 1 2 x 14
49 3850305 Propeller, 15 x 15
49 3850306 Propeller, 15 x 16
49 3850307 Propeller, 15 x 17
49 3850308 Propeller, 14 1 2 x 19
49 3850309 Propeller, 14 1 4 x 21
49 3850310 Propeller, 14 1 4 x 23
49 3850311 Propeller, 15 x 17
49 3850312 Propeller, 14 1 2 x 19
49 3850313 Propeller, 14 1 4 x 21
49 3850314 Propeller, 14 1 4 x 23
49 3855142 Propeller, 14 1 2 x 20
49 3855144 Propeller, 14 1 2 x 22
49 3855146 Propeller, 14 1 2 x 24
49 3855148 Propeller, 14 1 2 x 26
50 3850324 Bushing assy., propeller
50 3850325 Bushing assy., propeller
51 0313926 Propeller hub sleeve This part replaces 3850831.
52 0332394 Converging ring This part replaces 3854241.
53 3855411 Anode, gearcase
54 0328701 Lockwasher, double ended bolt This part replaces 3852182.
55 0328724 Screw This part replaces 3852186.
56 3855275 Gearcase seal kit
