EVINRUDE-JOHNSON 914389 Valve, Exhaust, 0.003 O.S.

Write a Review
$10.00
SKU:
914389
Schematic Object Key:
4

EVINRUDE-JOHNSON 914389 Valve, Exhaust, 0.003 O.S.

$10.00

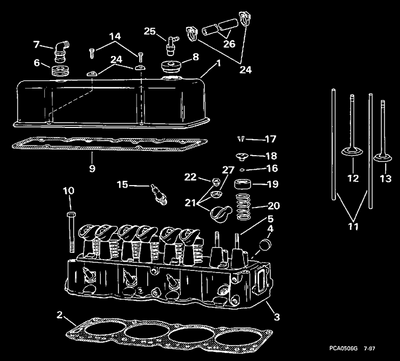

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 914389 Valve, Exhaust, 0.003 O.S.

Schematic Object Key : 4

Product Description: Valve, Exhaust, 0.003 O.S.

Category: STERN DRIVE / 1992 / 4.3 / 432APLAMH 1992 / CYLINDER HEAD

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0986827 Cylinder head assy
2 3853647 Stud, rocker arm This part replaces 0916033.
3 3852451 Valve, intake, standard This part replaces 0908612.
3 3852448 Valve, intake, 0.003 in. o.s. This part replaces 0908591.
3 3852449 Valve, intake, 0.015 in. o.s. This part replaces 0908592.
3 3852450 Valve, intake, 0.030 in. o.s. This part replaces 0908593.
4 0914388 Valve, exhaust, standard
4 0914389 Valve, exhaust, 0.003 o.s.
4 0914390 Valve, exhaust, 0.0015 o.s.
4 0916080 Valve, exhaust, 0.030 o.s.
5 3853229 Rotator, exhaust valve This part replaces 0914448.
5 3853228 Cap, intake valve This part replaces 0914447.
6 0912969 Gasket, cover screw
7 3855823 Key, valve stem This part replaces 0914322.
8 3854956 Seal, valve stem This part replaces 0914323.
9 3853145 Shield, valve stem This part replaces 0914338.
10 3853227 Spring damper This part replaces 0914446.
11 0986334 Lifter, valve
12 3856123 Bolt, cylinder head, 3 3 4 in. This part replaces 0914449.
12 3856122 Bolt, cylinder head, 3 in. This part replaces 0914450.
12 3856124 Bolt, cylinder head, 1 3 4 in. This part replaces 0914451.
13 3853170 Push rod This part replaces 0914374.
14 3853158 Arm, valve rocker This part replaces 0914379.
15 3853193 Ball, rocker arm This part replaces 0914404.
16 3853649 Nut, rocker arm This part replaces 0916036.
17 0914929 Valve cover, port
17 0912971 Valve cover, starboard
18 3854008 Oil fill cap This part replaces 0986747.
19 3856135 Screw, valve cover This part replaces 0913271.
20 0311545 Elbow
21 3854299 Gasket, cylinder head This part replaces 0914930.
22 0311543 Grommet
23 0909530 Plug, adapter
24 0912970 Cover, terminal
25 3854400 Spark plug, champion rv15yc4 This part replaces 0979827.
26 3853311 Bracket, lift This part replaces 0914678.
28 3853557 Screw, brace to alterntr bracket This part replaces 0915790.
29 0310928 Clamp, steering bracket
30 3853226 Seal, valve stem, inlet, standard This part replaces 0914445.
30 3853645 Seal, valve stem, inlet, 0.015 in. o.s. This part replaces 0916031.
30 3853646 Seal, valve stem, inlet, 0.030 in. o.s. This part replaces 0916032.
