EVINRUDE-JOHNSON 914743 Nut, Shift Rod To End

Write a Review
$13.99
SKU:
914743
Schematic Object Key:
39

EVINRUDE-JOHNSON 914743 Nut, Shift Rod To End

$13.99

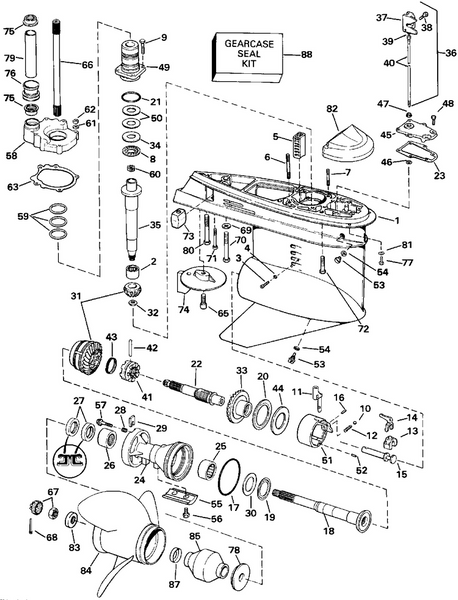

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 914743 Nut, Shift Rod To End

Schematic Object Key : 39

Product Description: Nut, Shift Rod To End

Category: STERN DRIVE / 1992 / 4.3 / 432APRAMH 1992 / LOWER GEARCASE - COUNTER (L.H.) ROTATION

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5007022 Gearcase bearing assembly This part replaces 0985355.
2 0387817 Bearing, pinion
3 0324852 Retaining screw seal
4 0332584 Washer, seal ring
5 0321123 Screen, water intake
6 0911713 Stud, housing to gearcase
7 0911714 Stud, water passage hsg
8 0387656 Butée, arbre d'entraînement
9 0317624 Screw, driveshaft hsg
10 0160084 Ball
11 0916189 Detent, shift This part replaces 0334142.
12 0911962 Spring
13 0334163 Cradle, shifter
14 0334160 Lever, shift
15 0334143 Shaft, shift
16 0319627 Pin, shift lever
17 0305123 O ring
18 0431943 Propeller shaft assy
19 0382408 Thrust bearing
20 0389042 Thrust bearing assembly, foward gear
21 0354731 O ring This part replaces 0314728.
22 0438251 Clutch shaft assy This part replaces 0432282.
23 0911878 Gasket, cover
24 0431694 Bearing housing seal assy
25 0431926 Needle bearing assembly, front
26 0387247 . needle bearing assy.
27 0320862 . seal
28 0910901 Insert
29 0333957 Languette, de retenue
30 0313447 Thrust washer
31 0987671 Gear set includes forward pinion
32 0314730 Nut, pinion to driveshaft
33 0986666 Gear, reverse
34 0327656 Rondelle de butée, arbre d'entraînement
35 0911693 Driveshaft assy
36 0986658 Shift rod assembly
37 0914723 Rod end, shift
38 0308825 Screw roller
39 0914743 Nut, shift rod to end
40 0914736 Shift rod
41 0915272 Shifter, clutch dog This part replaces 0914716.
42 0313448 Pin, clutch dog
43 0324369 Spring, clutch dog pin
44 0327669 Thrust washer, forward gear
45 0986838 Cover seal assy
46 0318372 "o" ring, shift rod
47 0912157 Wiper, shift rod
48 0304027 Screw
49 0984462 Bearing housing
50 0323362 Cale, 0,003" 0,07 mm
50 0323361 Cale, 0,004" 0,10 mm
50 0314745 Cale, 0,005" 0,12 mm
51 0431693 Bearing hsg assy, rev gear
52 0331880 Pin, housing to gearcase
53 0318544 Screw, fill drain
54 0333572 O ring
55 0431708 Anode, bearing housing
56 0908158 Screw, anode
57 0350271 Screw This part replaces 0333955.
58 0915720 Water passage hsg.
59 0318717 O ring, bearing hsg
60 0911710 Plug, shaft support
61 0329241 Washer This part replaces 0305981.
62 0121731 Nut, hook, front
63 0915719 Gasket, water passage hsg.
65 0313715 Screw, cap, hex hd, 7 16 14 x 1
66 0911709 Driveshaft
67 5008966 Nut keeper, propeller This part replaces 0398042.
68 0306394 Cotter pin
69 0330265 Washer
70 0331998 Screw, gearcase to housing This part replaces 0914535.
71 0328096 Screw
72 3853262 Screw, lower to upper housing This part replaces 0914536.
73 0436745 Anode This part replaces 0393023.
74 0913157 Trim tab, gearcase
75 0911705 Guide, water tube
76 0911715 Guide, water tube
77 0912127 Screw, hook
78 0333592 Thrust bushing
79 0911706 Tube water supply
80 0914534 Screw, gearcase to housing, rear
81 0328701 Lockwasher, double ended bolt
82 3853818 Anode, gearcase This part replaces 0984513.
83 0320570 Spacer, nut
84 0174927 Propeller, 15 x 15 sst
84 0431930 Propeller, 15 x 17 sss ii
84 0390821 Propeller, 14 1 2 x 19 sst ii
84 0390822 Propeller 14 1 4 x 21
84 0390823 Propeller 14 1 4 x 23
84 0398502 Propeller, 14 1 2 x 20 racker
84 0398503 Lh raker 14 1 2 x 22
84 0398504 Lh raker 14 1 2 x 24
84 0398505 Lh raker 14 1 2 x 26
84 0398506 Lh raker 14 1 2 x 28
84 0174890 Propeller 15 x 17 omc viper
84 0174811 Propeller, 14 1 2 x 19 omc viper
84 0174812 Propeller, 14 1 2 x 21 omc viper
84 0174813 Lh viper 14 1 4 x 23
85 0387157 Bushing assy, prop, std
87 0313926 Propeller hub sleeve
88 0984458 Gearcase seal kit
