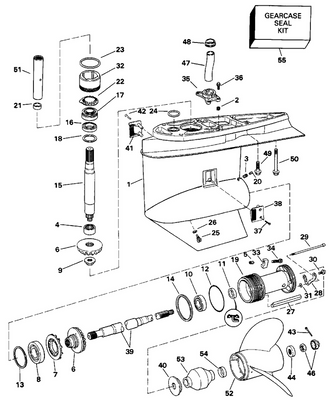

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 37
Product Description: Screw, Screen
Category: STERN DRIVE / 1990 / 7.4 / 744APEPWS 1990 / LOWER GEARCASE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 3854459 | Gearcase bearing | This part replaces 0986202. |
2 | 0910901 | Insert | |
3 | 3852567 | Insert | This part replaces 0911858. |
4 | 3853934 | Bearing, pinion | This part replaces 0986182. |
5 | 0986187 | Propeller shaft | |
6 | 0986627 | Gear set, 17 20 | |
6 | 0987549 | Gear set | This part replaces 0986628. |
7 | 3853941 | Oil slinger pins | This part replaces 0986275. |
8 | 3850942 | Bearing, gear to gearcase | This part replaces 0986211. |
9 | 0913869 | Housing, propeller shaft | |
10 | 3854249 | Bearing, driveshaft, lower | This part replaces 0386768. |
11 | 0915703 | Seal, prop shaft housing | This part replaces 0911840. |
12 | 3852865 | O ring, propeller shaft hsg. | This part replaces 0913849. |
13 | 0913871 | Shim, gear position, 0.003" | |
13 | 0913870 | Shim, gear position, 0.004" | |
13 | 0913872 | Shim, gear position, 0.005" | |
13 | 0913873 | Shim, gear position, 0.010" | |
14 | 3852881 | Ring, shim, 0.096 in. | This part replaces 0913865. |
14 | 3852882 | Ring, shim, 0.098 in. | This part replaces 0913866. |
14 | 3852868 | Ring, shim, 0.100 in. | This part replaces 0913852. |
14 | 3852869 | Ring, shim, 0.102 in. | This part replaces 0913853. |
14 | 3852870 | Ring, shim, 0.104 in. | This part replaces 0913854. |
14 | 3852871 | Ring, shim, 0.106 in. | This part replaces 0913855. |
14 | 3852872 | Ring, shim, 0.108 in. | This part replaces 0913856. |
14 | 3852873 | Ring, shim, 0.110 in. | This part replaces 0913857. |
14 | 3852874 | Ring, shim, 0.112 in. | This part replaces 0913858. |
14 | 3852875 | Ring, shim, 0.114 in. | This part replaces 0913859. |
14 | 3852876 | Ring, shim, 0.116 in. | This part replaces 0913860. |
14 | 3852877 | Ring, shim, 0.118 in. | This part replaces 0913861. |
14 | 3852878 | Ring, shim, 0.120 in. | This part replaces 0913862. |
14 | 3852879 | Ring, shim, 0.122 in. | This part replaces 0913863. |
14 | 3852880 | Ring, shim, 0.124 in. | This part replaces 0913864. |
15 | 3852884 | Driveshaft, lower | This part replaces 0913868. |
16 | 3854249 | Bearing, driveshaft, lower | This part replaces 0386768. |
17 | 3854250 | Bearing, driveshaft, upper | This part replaces 0979986. |
18 | 3852889 | Shim, pinion position, 0.003 in. | This part replaces 0913874. |
18 | 3852890 | Shim, pinion position, 0.004 in. | This part replaces 0913875. |
18 | 3852891 | Shim, pinion position, 0.005 in. | This part replaces 0913876. |
18 | 3852892 | Shim, pinion position, 0.010 in. | This part replaces 0913877. |
19 | 3852861 | Nut, pinion to driveshaft | This part replaces 0913842. |
20 | 3853272 | Set screw, prop shaft housing | This part replaces 0914559. |
21 | 3852863 | Support, driveshaft | This part replaces 0913847. |
22 | 3852862 | Washer, retaining | This part replaces 0913845. |
23 | 3852866 | O ring, support housing | This part replaces 0913850. |
24 | 3852959 | O ring, oil passage | This part replaces 0914023. |
25 | 0318544 | Screw, fill drain | |
26 | 0333572 | O ring | |
27 | 3852970 | Anode, prop shaft housing | This part replaces 0914040. |
28 | 0914041 | Retainer, anode | |
29 | 0914042 | Screw, anode | |
30 | 0914673 | Screw, anode retainer | |
31 | 3852973 | Washer, anode | This part replaces 0914043. |
32 | 3852883 | Retainer, driveshaft | This part replaces 0913867. |
33 | 3853371 | Retainer, prop shaft housing | This part replaces 0914931. |
34 | 3852478 | Screw, prop shaft retainer | This part replaces 0909937. |
35 | 3853932 | Guide seal, water tube | This part replaces 0986176. |
36 | 0341013 | Screw, cover | This part replaces 0908668. |
37 | 0914915 | Screw, screen | |
38 | 0913835 | Screen, water intake port | |
39 | 0913836 | Screen, water intake, port | |
40 | 3852867 | Screw, lower to upper housing | This part replaces 0913851. |
41 | 0914024 | Screw, c c to block | |
42 | 3852902 | Driveshaft, intermediate | This part replaces 0913888. |
43 | 0306394 | Cotter pin | |
44 | 0320570 | Spacer, nut | |
45 | 0333592 | Thrust bushing | |
46 | 5008966 | Nut keeper, propeller | This part replaces 0398042. |
47 | 3852963 | Tube, water supply | This part replaces 0914029. |
48 | 0911705 | Guide, water tube | |
49 | 0174927 | Propeller, 15 x 15 sst | |
49 | 0431930 | Propeller, 15 x 17 sss ii | |
49 | 0390821 | Propeller, 14 1 2 x 19 sst ii | |
49 | 0390822 | Propeller 14 1 4 x 21 | |
49 | 0390823 | Propeller 14 1 4 x 23 | |
49 | 0398502 | Propeller, 14 1 2 x 20 racker | |
49 | 0398503 | Lh raker 14 1 2 x 22 | |
49 | 0398504 | Lh raker 14 1 2 x 24 | |
49 | 0398505 | Lh raker 14 1 2 x 26 | |
49 | 0398506 | Lh raker 14 1 2 x 28 | |
49 | 0174890 | Propeller 15 x 17 omc viper | |
49 | 0174811 | Propeller, 14 1 2 x 19 omc viper | |
49 | 0174812 | Propeller, 14 1 2 x 21 omc viper | |
49 | 0174813 | Lh viper 14 1 4 x 23 | |
49 | 0174926 | Propeller, 15 x 15 sst | |
49 | 0391290 | Prop, 15 x 17 sst | |
49 | 0389924 | Prop, 14 1 2 x 19 sst | |
49 | 0389923 | Prop, 14 1 2 x 21 sst | |
49 | 0389019 | Prop, 14 1 2 x 23 sst | |
49 | 0394752 | Propeller, 14 1 2 x 18 omc raker | |
49 | 0394753 | Propeller, 14 1 2 x 20 omc raker | |
49 | 0394754 | Propeller, 14 1 2 x 22 omc raker | |
49 | 0394755 | Propeller, 13 1 2 x 24 omc raker | |
49 | 0394756 | Propeller, 14 1 2 x 26 omc raker | |
49 | 0394757 | Propeller, 14 1 2 x 28 omc raker | |
49 | 0174889 | Propeller, 15 x 17 omc viper | |
49 | 0174814 | Propeller, 14 1 2 x 19 omc viper | |
49 | 0174815 | Propeller, 14 1 2 x 21 omc viper | |
49 | 0174816 | Propeller, 14 1 2 x 23 omc viper | |
50 | 0387157 | Bushing assy, prop, std | |
51 | 0313926 | Propeller hub sleeve | |
52 | 0986629 | Gearcase seal kit |
