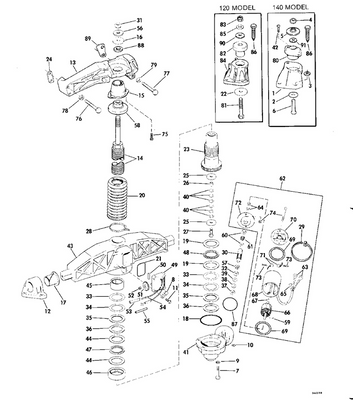

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 72
Product Description: Head Assembly, Drive End
Category: STERN DRIVE / 1975 / 140 / 990225A1 1975 / ENGINE MOUNT GROUP 120 & 140 HP WITH SELECTRIM
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0908895 | Bracket, rear | |
2 | 3853788 | Rebound washer assy. | This part replaces 0980808. |
3 | 3852422 | Washer, upper | This part replaces 0907826. |
4 | 0313650 | Nut | |
5 | 0908896 | Spacer | |
6 | 0316913 | Screw | |
7 | 0306500 | Screw, belt retainer | |
8 | 0310441 | Clamp, small | |
9 | 0311388 | Oring | |
10 | 0313607 | Lube fitting | |
11 | 0510397 | Screw | |
12 | 0907746 | Pillow block, trunnio hsg | |
13 | 0908714 | Bracket, engine front | |
14 | 0908413 | Flange nut, front mount | |
15 | 0908419 | Retainer, front mount | |
16 | 0309686 | Roll pin | |
17 | 0907769 | Bushing, pillow blcok | |
18 | 0907770 | O ring, trunnion housing | |
19 | 0907791 | Washer | |
20 | 0908406 | Boot, jack screw | |
21 | 0907817 | O ring, sending unit | |
22 | 0907819 | Tube, boot trim motor | |
23 | 0907820 | Hose, motor leads | |
24 | 0907821 | Boot, protective motor | |
25 | 3852422 | Washer, upper | This part replaces 0907826. |
26 | 0907828 | Spacer, stop screw | |
27 | 0907832 | Screw, bumper stop | |
28 | 0907833 | Attache câble, câbles vers commande de sens de marche | |
29 | 0980021 | Clamp, boot to trim motor | |
30 | 0907835 | Worm gear, tilt trim | |
31 | 0908431 | Screw | |
32 | 0907837 | Washer | |
33 | 0907925 | Shim, .002" | |
34 | 0907926 | Shim, .003" | |
35 | 0907927 | Shim, .004" | |
36 | 0907928 | Shim, .010" | |
37 | 0907929 | Shim, .002" | |
38 | 0907930 | Shim, .003" | |
39 | 0907931 | Shim, .004" | |
40 | 0907966 | Washer, bumper stop | |
41 | 0979715 | Trunnion housing, lower | |
42 | 0306414 | Screw | |
43 | 0981671 | Trunion hsg brg assy | This part replaces 0979724. |
44 | 0907791 | Washer | |
45 | 0979769 | Needle bearing assy | |
46 | 0979770 | Needle beareing assy | |
47 | 0397537 | Bearing, rev gear thrust | This part replaces 0979771. |
48 | 0397537 | Bearing, rev gear thrust | This part replaces 0979771. |
49 | 0979792 | Sending unit assembly | |
50 | 0316198 | Heat shrink tubing | |
51 | 0907815 | Gear | |
52 | 0907816 | Clutch pins | |
53 | 0303806 | Tubing | |
54 | 0308808 | Cosse, plate | |
55 | 0908615 | Heat shirink tube | |
56 | 0980282 | Jack screw stud assy | |
57 | 0979798 | Bearing | |
58 | 0979803 | Clamp | |
59 | 0317134 | Spiral pin | |
60 | 0907837 | Washer | |
61 | 0979798 | Bearing | |
62 | 0979768 | Motor assembly | |
63 | 0204036 | 10 ring termial,12v | |
64 | 0204039 | 10 ring terminal | |
65 | 0310502 | Terminal, ring | |
66 | 0979937 | Armature | |
67 | 0122788 | . . . ball | This part replaces 0121987. |
68 | 0979938 | Coil assy, field, complete | |
69 | 0979939 | Lead grommet assy | |
70 | 0979940 | Head assy, comm end | |
71 | 0982310 | . brush set .. o ring package | This part replaces 0380706. |
72 | 0979942 | Head assembly, drive end | |
73 | 0382950 | . . . spring set, brush | This part replaces 0979943. |
74 | 0979944 | Thru bolt pkg | |
75 | 0979945 | Thrust washer spacer | |
76 | 0317222 | Screw | |
77 | 0317444 | Screw, adaptor | |
78 | 0120177 | L'washer, alternator to brkt | |
79 | 0303269 | L'washer, upper | |
80 | 3853789 | Eccentric, fuel pump, inner | This part replaces 0980809. |
81 | 0908421 | Retainer | |
82 | 0980283 | Rubber mount assy, front | |
83 | 0979793 | Nut worm wheel assy | |
84 | 0908725 | Bracket, mount, stringer | |
85 | 0907838 | Bracket, rear | |
86 | 3852428 | Washer, lower | This part replaces 0907857. |
87 | 0907858 | Locknut, mount screw | |
88 | 0979722 | Rubber mount | |
89 | 0817573 | Screw |
