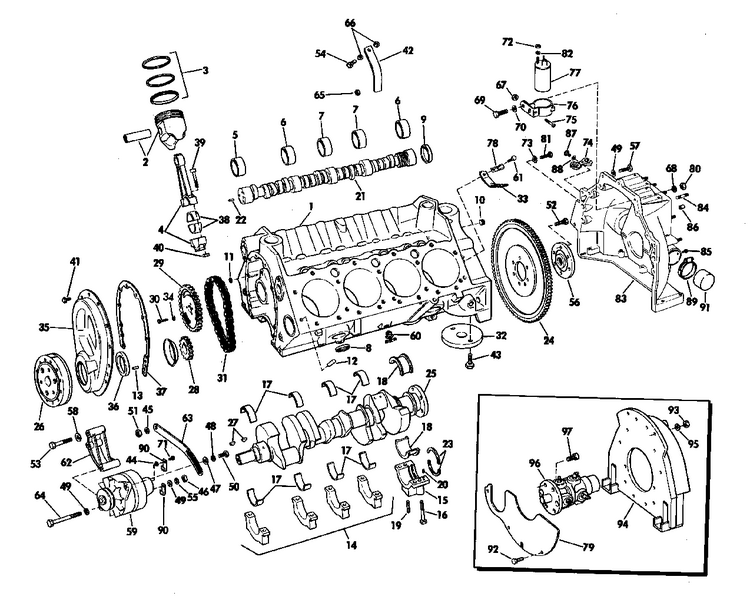

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 94
Product Description: Bracket Assy., Mtg Rear
Category: STERN DRIVE / 1972 / 155 / HUFM-21C 1972 / CRANKCASE GROUP 225 & 245 HP STERN DRIVE 245 JET DRIVE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | CRANKCASE ASSY | ||
2 | 3923294 | Piston pin assembly std. | |
2 | 3923296 | Piston pin assembly, .020" o.s. | |
2 | 3923297 | Piston pin assembly ,.030" o.s. | |
3 | 3892385 | Piston ring set, std | |
3 | 3892388 | Piston ring set, .020" o.s. | |
3 | 3892392 | Piston ring set, .030" o.s. | |
4 | 3916396 | Connecting rod assy | |
5 | 3723584 | Bearing , camshaft, front | |
6 | 3723585 | Bearing, camshaft, 2, 5 | |
7 | 3723586 | Bearing, camshaft, 3, 4 | |
8 | 0311376 | Core plug, side | |
9 | 3997752 | Plug, camshaft bearing, rear | |
10 | 0444776 | Plug, oil gallery, | |
11 | 3701638 | Plug, oil galler, fron, 1 2" dia cup shaped | |
12 | 0585927 | Dowel pin | |
13 | 3836903 | Pilot pin, cam shaft gear | |
14 | 3956688 | Cap, crankshaft bearing | |
15 | 3911007 | Cap, camshaft brg, rear | |
16 | 3932480 | Bolt, crankshaft, brg. cap | |
17 | 3912038 | Bearing assy, 2 3, 4, std. | |
17 | 3912039 | Bearing assy, 2, 3, 4, .001" u.s | |
17 | 3912040 | Bearaing assy. front intermediate,.002"us | |
17 | 3912041 | Bearing assy exc rear, .010'' u.s. | |
17 | 3912042 | Bearing assy 0exc rear, .020'' u.s. | |
18 | 3912030 | Bearing assy rear, std | |
18 | 3912032 | Bearing assy rear, .001" u.s. | |
18 | 3912033 | Bearing assy rear, .002" u.s. | |
18 | 3912035 | Bearing assy rear, .010" u.s. | |
18 | 3912036 | Bearing assy rear, .020" u.s. | |
19 | 3960312 | ,stud, bearing cap 225 models | |
20 | 3836903 | Pilot pin, cam shaft gear | |
21 | 3896929 | Camshaft assy | |
21 | 3863151 | Camshaft assy. | |
22 | 3836903 | Pilot pin, cam shaft gear | |
23 | 3958001 | Oil seal set, c'shart rear brg. | |
24 | 3973452 | Flywheel assembly | |
25 | 3941172 | Crankshaft assembly | |
26 | 6272223 | Balancer, crankshaft | |
27 | 0106751 | Key, wdf, 3 16" x 3 4" | |
28 | 0912960 | Sprocket, crankshaft | This part replaces 0315982. |
28 | 0912960 | Sprocket, crankshaft | This part replaces 0315982. |
29 | 3735412 | Sprocket, camshaft | |
30 | 3682643 | Bolt, camshaft sprocket | |
31 | 3735411 | Chain, camshaft | |
32 | 3952301 | Adapter valve assembly | |
33 | 3864498 | Retainer leads | |
34 | 3682643 | Bolt, camshaft sprocket | |
35 | 3991433 | Cover, crankcase front | |
36 | 3921012 | Seal | |
36 | 3980267 | Seal | |
37 | 3799620 | Gasket, front cover | |
38 | 3910555 | Bearing, connecting rod, std. | |
38 | 3715040 | Rod bearing ,std, 235 hp | |
38 | 3910556 | Bearing, rod, .001" u.s. | |
38 | 3715041 | Rod bearing, .001" u.s. | |
39 | 3916399 | Bolt, connecting fod | |
40 | 3866766 | Nut, conn rod, 11 32 24 | |
41 | 3817006 | Bolt, camshaft sprocket | |
42 | 3851294 | Brace, sarting motor | |
42 | 0312795 | Bracket | |
43 | 3951644 | Bolt, adapter | |
44 | 0206421 | D washer | |
45 | 0301250 | Rondelle | |
46 | 0303889 | .nut | |
47 | 0306283 | Washer, starter spindle | |
48 | 0306325 | . . lockwasher, solenoid screw | |
49 | 0306405 | Washer, c c stud nut | |
50 | 0302479 | Screw, starter mounting | This part replaces 0306416. |
51 | 0306422 | Nut | |
52 | 0306872 | Bolt, flywheel | |
53 | 0307776 | Screw, lower main bearing | |
54 | 0306555 | Screw | |
55 | 0309336 | L'washer, alternator to bracket | |
56 | 0314683 | Coupling | |
57 | 0310896 | Screw | |
58 | 0311096 | Washer | |
59 | 0383443 | Alternaor assy., complete | |
60 | 0379957 | Petchock assy, water drain | |
61 | 0306419 | Screw | |
62 | 0312775 | Bracket, alternator | |
63 | 0312776 | Brace, alternator | |
64 | 0311391 | Scr,altnr to brkt | |
65 | 0313022 | Locknut, double ended bolt | This part replaces 0900178. |
66 | 0306407 | Locckwasher,cover latch | |
67 | 0308335 | Clamp, coil | |
68 | 0120177 | L'washer, alternator to brkt | |
69 | 0306835 | Screw | |
70 | 0306405 | Washer, c c stud nut | |
71 | 0303551 | Screw | |
72 | 0306556 | Nut, leaf screw | |
73 | 0307001 | L'washer, stud c'case | |
74 | 0314823 | Retainer, cable con | |
75 | 0306519 | Scr,coil clamp | |
76 | 3852218 | Bracket, oil cooler | This part replaces 0383448. |
77 | 3852217 | Coil assy. ignition | This part replaces 0383444. |
78 | 0310928 | Clamp, steering bracket | |
79 | 0908112 | Flywheel cover | |
80 | 0303889 | .nut | This part replaces 0306562. |
81 | 0312861 | Screw, cable ground | |
82 | 0550757 | L'washer,coil term | |
83 | 0980382 | Adapter housing | This part replaces 0384560. |
83 | 0980203 | Adapter housing | |
84 | 0314616 | Stud | |
85 | 0160280 | Drive screw | |
86 | 0309614 | Dowel | |
87 | 0303699 | Screw | |
88 | 0306407 | Locckwasher,cover latch | |
89 | 0310894 | Clamp | |
90 | 0901463 | Clamp | |
91 | 0908049 | Cap, exh. inlet adapter, 245 hp | |
92 | 3852421 | Screw, baffle | This part replaces 0907768. |
93 | 0313457 | Nut, adapter stud | |
94 | 0980185 | Bracket assy., mtg rear | |
95 | 0306453 | Lockwasher, fuel pump | |
96 | 0980247 | Universal joint | |
97 | 0908127 | Screw, universal joint |
